Stainless Steel Ultra Fine Wire 0.025mm For Spinning Weaving Knitting And Braiding

Name: Stainless Steel Ultra Fine Wire 0.025mm For Spinning Weaving Knitting And Braiding
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-FINWIRE
Availability: InStock

Model Number:	HH-FINWIRE
MOQ:	ONE SPOOL
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	5000 spools per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Ultra Fine Wire

Material:

Stainless Steel 304L, 316L

Wire Diameter:

0.025mm

Mircon Size:

Application:

Spinning, Weaving , Knitting And Braiding

Surface:

Annealed And Soft

Packaging Details:

Spool+ stretch film+carton+pallet

Supply Ability:

5000 spools per 30 days

Highlight:

ultra fine wire 0.025mm

stainless steel ultra fine wire

0.025mm extra fine wire

Product Description

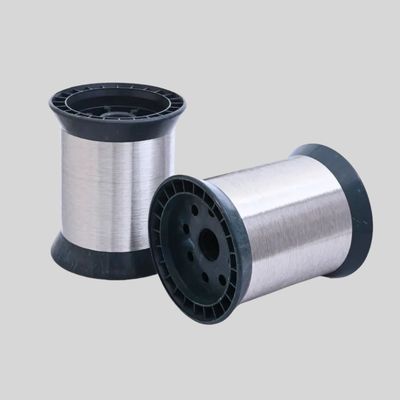

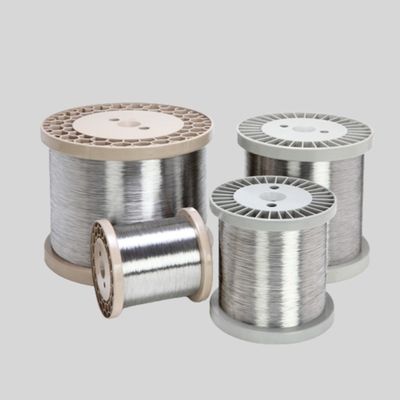

Stainless Steel Ultra Fine Wire 0.025mm

Quick details of Stainless steel ultra fine wire

Material: stainless steel 304, 304l, 316, 316l

Wire diameter: 0.025mm

Mircon size: 25

Package type: spool

Stainless Steel Ultra Fine Wire are thin, strong, and resistant to corrosion. They are made from stainless steel, which is a combination of iron, chromium, nickel, and other elements. Therefore, these wires are tough and can resist rust and staining effectively.

Additionally, Stainless Steel Ultra Fine Wire are called fine wires because of their thin diameter. This unique feature makes them suitable for a variety of applications. For example, they are commonly used in industries like electronics.

Specification of Stainless Steel Ultra Fine Wire 0.025mm

Name:	0.025mm Ultra fine stainless steel wire – 304L
Grade:	AISI 304L
Size(mm):	0.025mm
Size(inch):	0.00098” inch
Size(micron):	25 microns
Diameter tolerance:	±0.001mm
Tensile Strength(N / mm2):	686-980
Elongation(%):	20-30%
Weight(g):	250-600g or customized
Weight(lb):	0.55-1.32lb
Temper:	Annealed and Soft
Spool type:	Customized
Application:	Spinning, weaving , knitting and braiding
Package:	Spool+ stretch film+carton+pallet

Material composition table

AISI Material	Chemical composition (%)
	C	Si	Mn	P	S	Ni	Cr	Mo	Cu	Ti
201	≤0.15	≤0.75	5.5~7.5	≤0.06	≤0.03	3.5~5.5	16~18	-	-	-
304	<0.08	<1.0	<2.0	<0.035	<0.03	8~10	17~19	-	-	-
304L	<0.03	<1.0	<2.0	<0.04	<0.03	9~13	18~20	-	-	-
304HC	<0.06	<1.0	1.2-1.8	<0.035	<0.03	8~11	17~19	-	2.0-3.0	-
316	<0.08	<1.0	<2.0	<0.04	<0.03	10~14	16~18	2.0~3.0	-	-
316L	<0.03	<1.0	<2.0	<0.04	<0.03	12~15	16~18	2.0~3.0	-	-
310S	<0.08	<1.5	<2.0	<0.04	<0.03	19~22	24~26	-	-	-
321	<0.08	<1.0	<2.0	<0.045	<0.03	9~13	17~19	-	-	>0.035
301	<0.15	<1.0	<2.0	<0.04	<0.03	>7	16~18	-	-	-
302	<0.15	<1.0	<2.0	<0.04	<0.03	>8	17~19	-	-	-

Ultra fine wire specification parameter table

Wire diameter(mm)	Tolerance(mm)	Maximum diameter deviation(mm)
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002
0.090-0.109	+0.003 -0.002	0.002
0.110-0.169	±0.003	0.003
0.170-0.184	±0.004	0.004
0.185-0.199	±0.004	0.004
0.-0.299	±0.005	0.005
0.300-0.310	±0.006	0.006
0.320-0.499	±0.006	0.006
