Home Products

Ultra Fine Wire

0.025-0.08mm Precision Micro Stainless Steel Wire

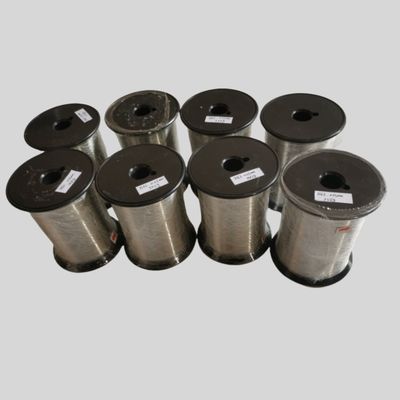

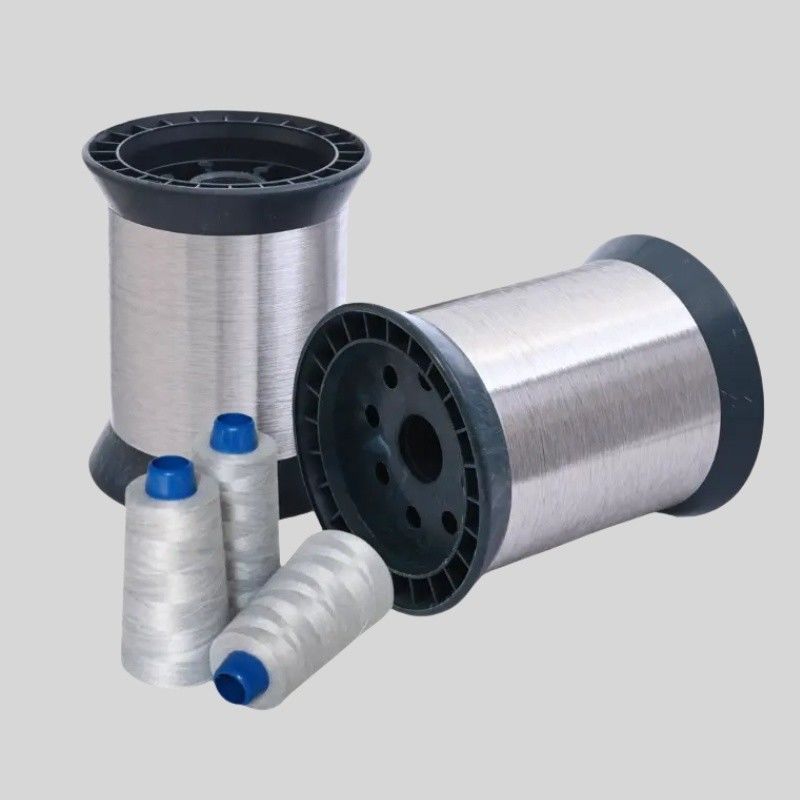

Name: 0.025-0.08mm Precision Micro Stainless Steel Wire
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-WIRE0.05
Availability: InStock

Model Number:	HH-WIRE0.05
MOQ:	one spool
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	3000 spool PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Precision Micro Stainless Steel Wire

Wire Diameter:

0.025mm-0.08mm

Finished:

Electrolysis Bright, Bright, Matt.

HS Code:

7223000000

Characteristic:

High Temperature Resistance And Corrosion Resista

Spool Size:

KK80, K60, PL-1, HK100(1), HK100(2), HK115

Packaging Details:

10 spool PER carton

Supply Ability:

3000 spool PER 30 DAYS

Highlight:

Micro Stainless Steel Wire

0.08mm Micro Stainless Steel Wire

Micro Ultra Fine Wire

Product Description

Stainless Steel Microwire Woven Protective Clothing Anti-Static Anti-Cutting Gloves Steel Yarns Filament

Quick details of Precision Micro Stainless Steel Wire

Material grade: 304,304L,316,316L,etc

Wire diameter:0.025mm -0.08mm

Condition: soft wire, semi-soft wire, hard wire

Surface: electrolysis bright, bright, matt.

Spool type: KK80, K60, PL-1, HK100(1), HK100(2), HK115

Description of Precision Micro Stainless Steel Wire

Wire Diameter (mm)	Allowed Difference (mm)	Max. Diameter Difference (mm)
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002

Strength and elongation for 316L material

Material	Wire Dia(mm)	EL(%)	Strength(map)	SWG	AWG	Inch	Allow difference(mm)
316L	0.035	≥22	570-800		AWG47	0.00138	+0.002 -0.001
316L	0.04	≥23	550-800	SWG48	AWG46	0.00158	+0.002 -0.002
316L	0.05	≥24	380-850	SWG47	AWG44	0.00197	±0.002

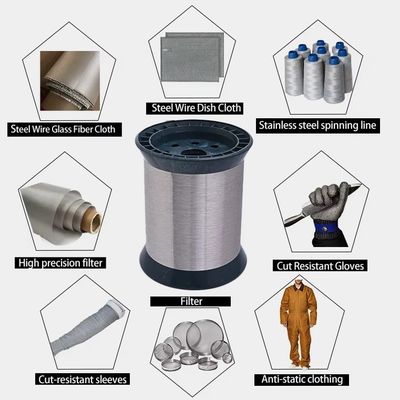

Applications of Precision Micro Stainless Steel Wire

1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire.
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings.
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets.
4). Food and medical machinery accessions and many more applications.

Advantage of Precision Micro Stainless Steel Wire

1. Precision Micro Stainless Steel Wire has good thermal conductivity and electrical conductivity.
2. It has high dimensional accuracy,good flexibility and high tensile strenght.
3. It has good corrosion resistance ,high temperature resistance and oxidation resistance.
4. It has good radiation protection,biocompatibility,anti-magnetic,electronic shielding performance,etc.
5. Precision Micro Stainless Steel Wire is widely used in textile,medical,electronic appliances,filtration,machinery and precision instruments,chemical industry,aerospace,etc.
