Home Products

Ultra Fine Wire

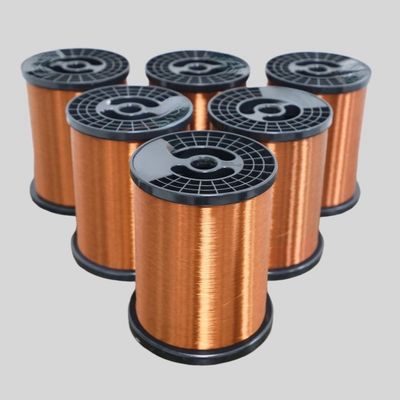

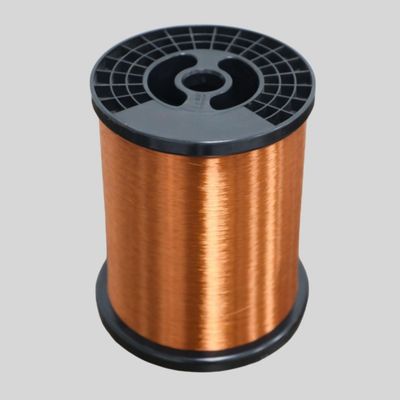

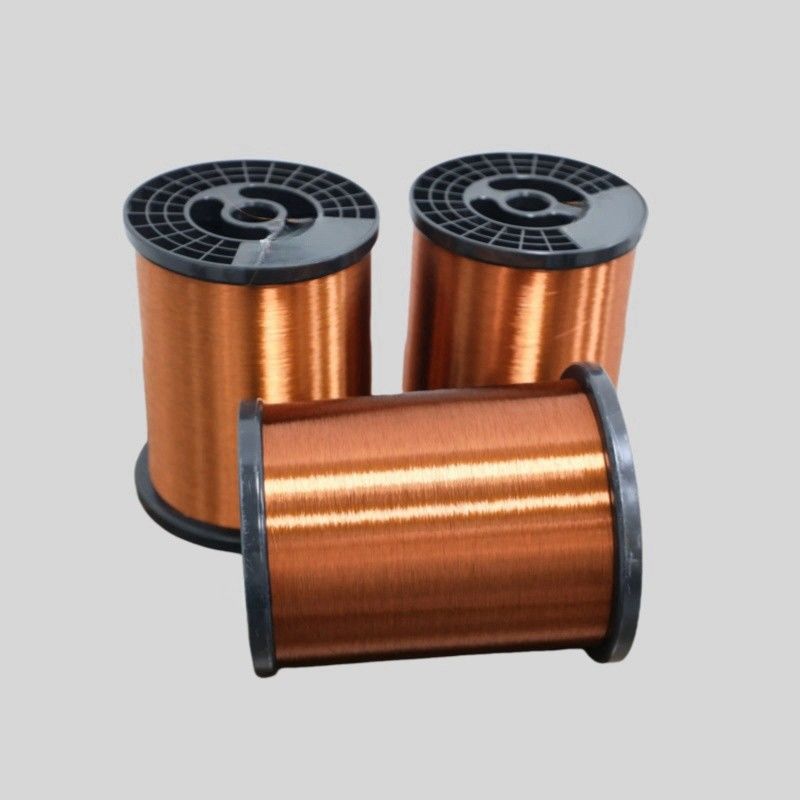

Polyester Imide Enameled Copper Wire Insulated EIW/180

Name: Polyester Imide Enameled Copper Wire Insulated EIW/180
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-STRIP
Availability: InStock

Model Number:	HH-STRIP
MOQ:	1 spools
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 ROLLS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Polyester-Imide Enameled Copper Wire

Class:

EIW/180

Size Range:

0.025-0.06mm

Cut Through Temperature:

300℃

HS Code:

854411

Shape:

Round Wire

Feature:

Easy To Be Dyed, Good Elongation And Coiling

Wire Type:

Insulated

Packaging Details:

PL4/PT10/PT15/PT25/PT60/PT200(Spool) Coil in Carton with Wooden Pallet or Wooden Cases.

Supply Ability:

1000 ROLLS PER 30 DAYS

Highlight:

polyesterimide enamelled copper wire

insulated enameled copper wire

EIW/180 super enamelled copper wire

Product Description

Polyester-Imide Enameled Copper Wire

Quick details of Polyester-Imide Enameled Copper Wire

Polyester-imide Enameled Copper Wire Class 180: EIW/180
Film Thickness: -2: Thin , -1: Thick , -0: Over Thick
Size Range: 0.025-0.06mm AWG: 21#-50#
Thermal Level Code: H
Cut Through Temperature: 300℃
Heat Shock: 200℃
Reference Standar: IEC 60317-8, NEMA MW30-C, JIS C3202

Product Main Features:

Excellent resistance to heat shock. Suitable for high-speed winding. Good thermostability under 180ºC working environment, is the best choice for price among the high temperature resistance wire. Good chemical resistance and scuff resistance.

Description of Polyester-Imide Enameled Copper Wire

Polyester-Imide Enameled Copper Wire is double-layer insulation, and its bottom layer is Polyesterimide or Modify Polyester covered by Polyamideimide. This combination improves insulation characteristics to obtain the best characteristics, such as strong physical characteristics and excellent insulation with excellent chemical resistance, refrigerant resistance.

Specification of Polyester-Imide Enameled Copper Wire

Conductor [mm]		Minimum film [mm]	Overall diameter [mm]	Breakdown Voltage Min[V]	Conductor resistance [Ω/m,20℃]	Elongation Min[%]
Bare wire diameter	Tolerance	Minimum film [mm]	Overall diameter [mm]	Breakdown Voltage Min[V]	Conductor resistance [Ω/m,20℃]	Elongation Min[%]
0.025	±0.001	0.003	0.031	180	38.118	10
0.03	±0.001	0.004	0.038	228	26.103	12
0.035	±0.001	0.004	0.043	270	18.989	12
0.04	±0.001	0.005	0.049	300	14.433	14
0.05	±0.001	0.005	0.060	360	11.339	16
0.055	±0.001	0.006	0.066	390	9.143	16
0.060	±0.001	0.006	0.073	450	7.528	18

Application of Polyester-Imide Enameled Copper Wire

a. winding wire of motor
b. winding wire of transformer
c. winding coil of household appliance
d. winding wire of electric instrument
e. winding wire of electric appliance
