Titanium Anode Mesh

Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2

Name: Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-ANODE
Availability: InStock

Model Number:	HH-ANODE
MOQ:	1 square meter
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 ROLLS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Iridium-based MMO Coated Titanium Anode

Material:

Gr1, Gr2 Titanium

Temperature Range:

<60 ℃

Apply Current:

<15000A

Oxygen Evolution Potential:

<1.45V

Precious Metal Content:

15-40g / M2

Coating Thickness:

15-40g / M2

Shape:

Plates, Tubes, Nets, Rods, Wires, Machined Parts

Packaging Details:

Water-proof, plastic paper, wooden case, pallet

Supply Ability:

1000 ROLLS PER 30 DAYS

Highlight:

coated titanium anode mesh

titanium anode mesh gr1

mmo platinized titanium mesh

Product Description

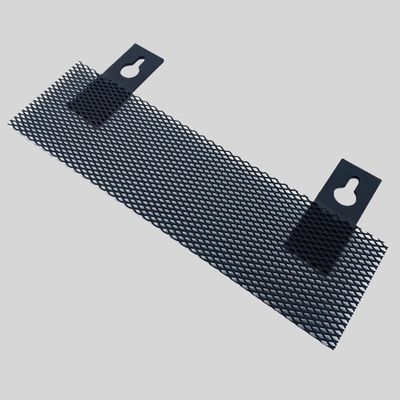

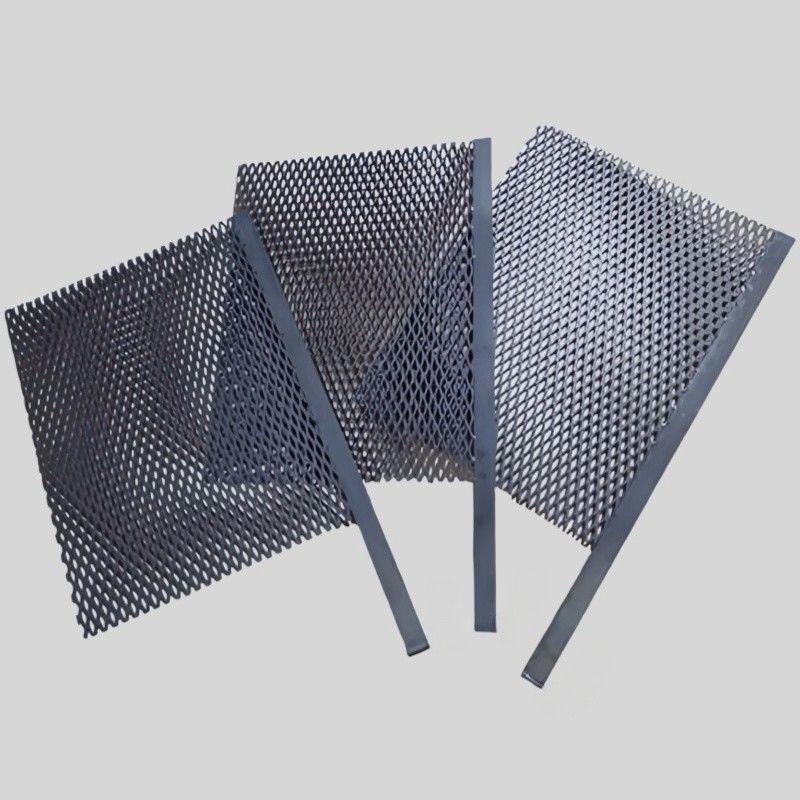

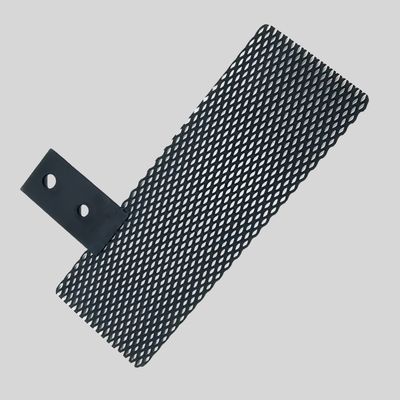

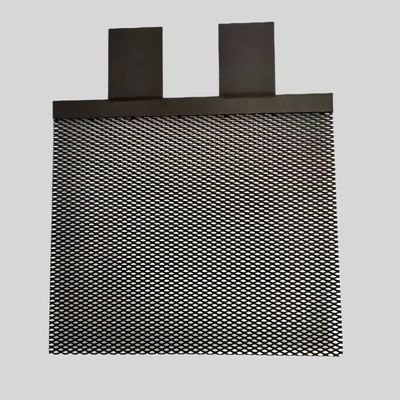

Iridium-based MMO Coated Titanium Anode Mesh

Iridium-based MMO coated titanium anodes are a type of insoluble anode, which are coated with an iridium oxide layer on a titanium substrate using a special process. This coating endows the anode with excellent electrocatalytic activity and conductivity. In electrochemical reactions, based on the classification by gas evolution, iridium-based MMO coated titanium anodes are categorized as oxygen-evolving anodes, suitable for environments where oxygen evolution is desired.

Parameter of Iridium-Based MMO Coated Titanium Anode Mesh

Coating material	IrO2 + Ta2O5 + X
Base metal	Gr1, Gr2 titanium
Temperature range	<60 ℃
Apply Current	<15000A
Oxygen evolution potential	＜1.45V
Fluoride content	<50mg / L
Precious metal content	15-40g / m2
Coating thickness	8-15μm
PH value	1-12
Enhanced life	300 H-400H
Titanium anode shapes	plates, tubes, nets, rods, wires, machined parts

Base Material: Pure titanium in Gr1 or Gr2;
Coating: Iridium tantalum
Coating Thickness 10~40 μm or custom;
Shape: Plate, mesh, rod or custom;
Life span: 2-5 years;

Features of Iridium-Based MMO Coated Titanium Anode Mesh

Lower cell voltage and overpotential;
Stable in performance and dimension;
Strong catalytic activity;
High corrosion resistance;
Long service life;
Tailor-made service is available.

Application of Iridium-Based MMO Coated Titanium Anode Mesh

Seawater Desalination
Electro Chlorination;
Cooling water anti-biofouling;
Electrodialysis;
Seawater electrolysis;
Salt pool chlorinators;
