Home Products

Titanium Anode Mesh

Platinum Plated Titanium Anode Mesh Expanded Type For Hydrogen Production

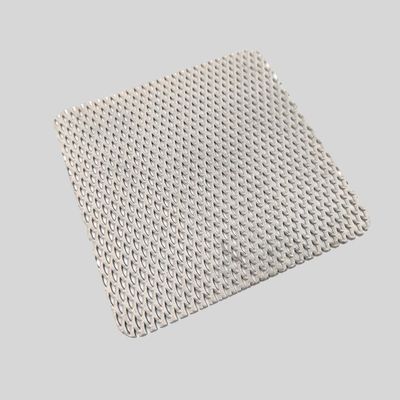

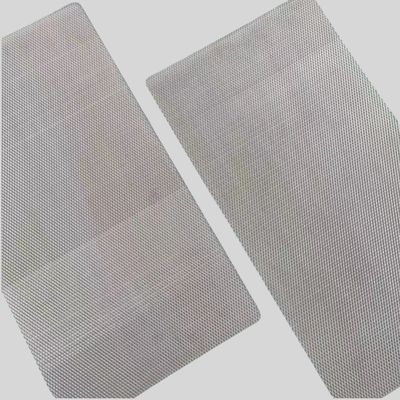

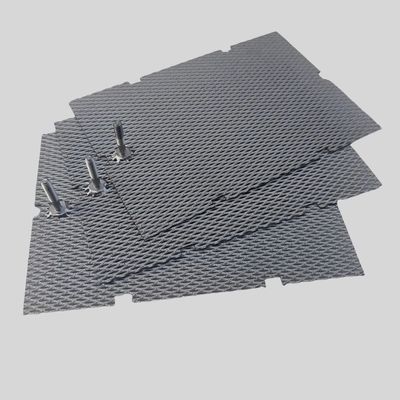

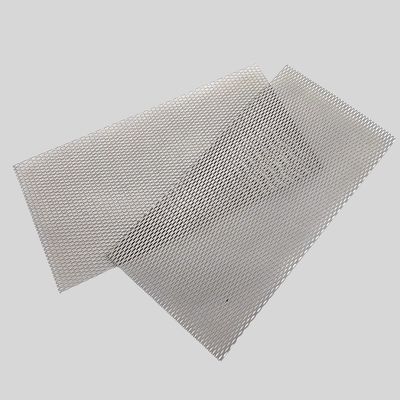

Name: Platinum Plated Titanium Anode Mesh Expanded Type For Hydrogen Production
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-PPTAM
Availability: InStock

Model Number:	HH-PPTAM
MOQ:	1 SQUARE METER
Price:	CONTACT WITH US
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Platinum Plated Titanium Anode Mesh

Ti Content (%):

99.99%

Mesh Thickness:

0.05-5mm

Mesh Type:

Expanded Mesh

Mesh Aperture:

0.3x0.6mm, 0.5x1mm, 0.8x1.6mm, 1 X2mm, 1.25x2.5mm Ect

Application:

Hydrogen Production

Work Temperature:

≥1200 °C

Coating Thickness:

1~5 µm

Packaging Details:

wooden case

Supply Ability:

1000 square meters per 20 days

Highlight:

Pt platinum plated titanium anode

Platinum Plated Titanium Anode Mesh

expanded platinum plated titanium anode

Product Description

Platinum Plated Titanium Anode Mesh

Long Service Coating
Using state-of-the-art technology, the titanium base is taken to a high temperature ( ≥1200 °C) in a vacuum sintering furnace ensuring total adhesion of the coating. Thus, the coating consumption rate is extremely low and uniform, measured in milligrams per ampere-year.

Quality Substrate Material
Our electrodes are manufactured from high-tensile titanium, which meets commercially Grade I/II standards.

Element	Grade I	Grade II
Iron (Fe)	0.20% max.	0.30% max.
Carbon (C)	0.08% max.	0.08% max.
Nitrogen (N)	0.03% max.	0.03% max.
Hydrogen (H)	0.015% max.	0.015% max.
Oxygen (O)	0.18% max.	0.25% max.
Titanium (Ti)	Remainder	Remainder

Parameters of Titanium anode Mesh

The titanium anode mesh is made through punching and stretching titanium sheet, The mesh aperture is diamond or hexagonal.

Mesh thickness: 0.05-5mm
Mesh width: 10mm-2000mm

Mesh Aperture: 0.3 * 0.6mm, 0.5 * 1mm, 0.8 * 1.6mm, 1 * 2mm, 1.25 * 2.5mm ,1.5 * 3mm
2 * 3mm, 2 * 4mm ,2.5 * 5mm,3 * 6mm, etc. Max 50 * 100mm

Technical Parameters	Performance
Coating Composition	Platinum (Pt)
Coating Thickness	1~5 µm
Operating Voltage	≤ 24V
Current Density	≤7500 A/m²
pH Range	1~12
Working Temperature	< 60 °C

Applications of Platinum Plated Titanium Anode Mesh

1.Drinking Water electrolysis
2.HHO Generator
3.Electroplating
4.Electrolytic organic synthesis
5.Electrodialysis
6.swimming pool disinfectant
7.perchlorate protection
8.Cathodic protection
9.chlor-alkali industry,ects.
