MMO Coating Titanium Expanded Metal Mesh For Electrode

Name: MMO Coating Titanium Expanded Metal Mesh For Electrode
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-MMOC
Availability: InStock

Model Number:	HH-MMOC
MOQ:	1 square meter
Price:	contact with us
Payment Terms:	L/C,T/T,Western Union,alipay
Supply Ability:	1000 sqaure meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Titanium Expanded Metal Mesh

Finished:

MMO Coating

Material:

Pure Titanium TA1

Hole Size:

1*2mm,3*5mm,3*6mm

Thickness:

1mm, 2mm

Current Density:

≤2000A/M2

Oxygen-liberated Potential:

≤1.68V

Packaging Details:

10 in a pile, with plastic film, 20 pile in a box.

Supply Ability:

1000 sqaure meters per 20 days

Highlight:

coating titanium expanded metal mesh

mmo titanium expanded mesh

mmo titanium expanded metal mesh

Product Description

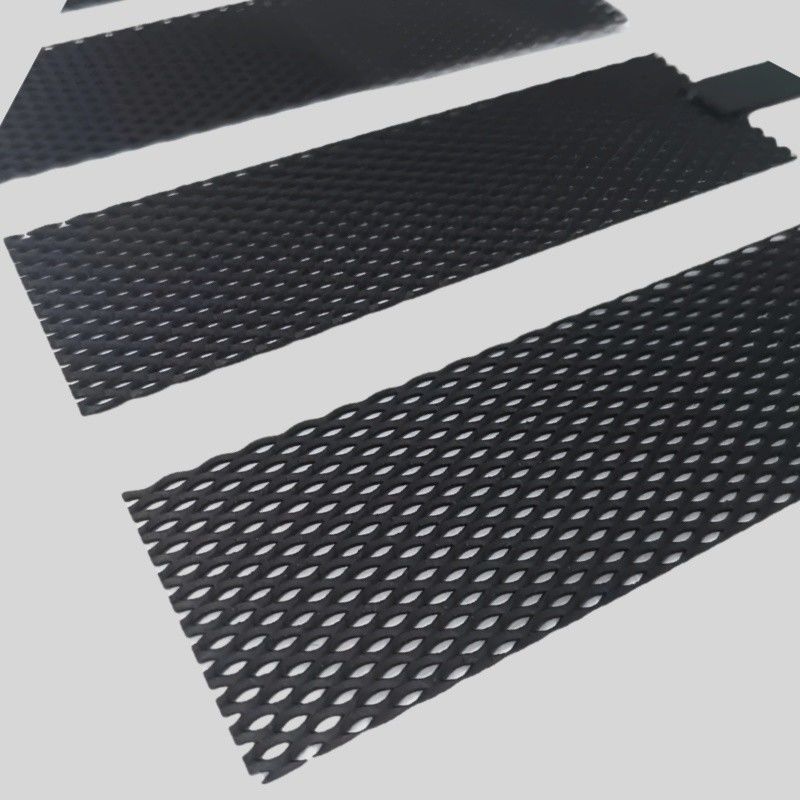

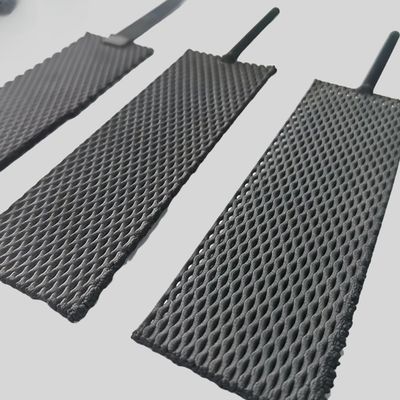

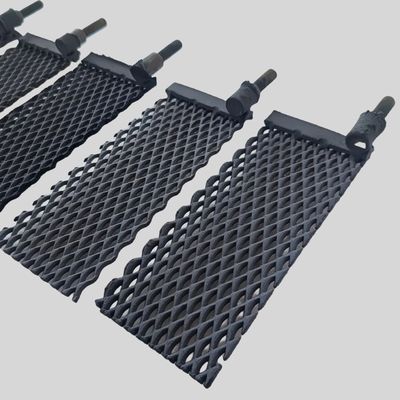

MMO Coating Titanium Expanded Metal Mesh For Electrode

Quick details of MMO Coating Titanium Expanded Metal Mesh

Substrate: pure titanium TA1

Thickness: 1-2mm
Hole Size: 1*2mm,3*5mm,3*6mm
Coating: Mixed Ruthenium-Iridium Oxide Or Platinum
Technology: Sand Blasting, Acid Washing And Brush Coating
Dimension: According To Customer’s Drawing

Working parameter:

1) Current density ≤2000A/M2
2) Temperature <60°C
3) Homogenous degree >=85%
4) Oxygen-liberated potential <=1.68V

Manufacturing processes of Titanium Expanded Metal Mesh

1)Pretreatment:choosing right material, cutting ,welding accordingly , annealing ,cleansing ,acid etching

2) Preparing noble metal: be made up in proportion of mol according to customer's application

3) Brush painting :coated by 12 to15 times

4) thermal decomposition of oxidation

Specification of Titanium Expanded Metal Mesh

Mesh thickness:	0.04-5mm
Mesh width:	5mm-2000mm
Mesh Aperture:	0.3 * 0.6mm
	0.5 * 1mm
	0.8 * 1.6mm
	1 * 2mm
	1.25 * 2.5mm
	1.5 * 3mm
	2 * 3mm,
	2 * 4mm
	2.5 * 5mm
	3 * 6mm

Features of Titanium Expanded Metal Mesh

1) Stable working ability under high current density & Voltage

2) High electrolysis efficiency

3) Stable electrolysis ability

4) High anti-corrosion property

5) The matrix can be recycled and recoated with MMO for reuse

6) Long working life etc.

Our different types of Anodes with MMO (Mixed Metal Oxides) coatings are:

Ruthenium-Iridium titanium anode

Ruthenium-Iridium-stannum titanium anode

Iridium-Tantalum titanium anode

Ruthenium-titanium anode

Platinum titanium anode

Lead dioxide titanium anode
