Home Products

Titanium Anode Mesh

Water Electrolysis Grade1 2 Titanium Expanded Sheet

Name: Water Electrolysis Grade1 2 Titanium Expanded Sheet
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-ANODE
Availability: InStock

Model Number:	HH-ANODE
MOQ:	10 sheet mesh
Price:	contact with us
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 sheet mesh per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Titanium Expanded Sheet

Material:

Grade1 2 Titanium

Usage:

Water Electrolysis

Mesh Size:

0.2mm×0.4mm To 50*100mm

Material Thickness:

0.3mm-1mm

Customized:

Cut Into Different Size And Shape

Packaging Details:

10 pcs with plastic film,

Supply Ability:

5000 sheet mesh per 20 days

Highlight:

Water Electrolysis Titanium Expanded Sheet

Grade1 2 Titanium Expanded Sheet

Water Electrolysis platinum coated titanium mesh

Product Description

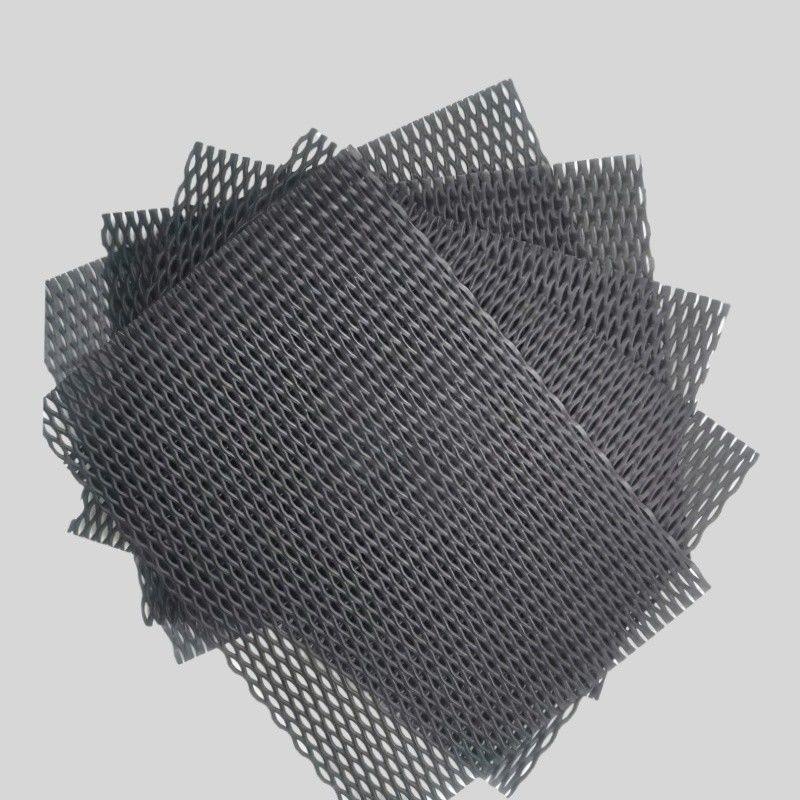

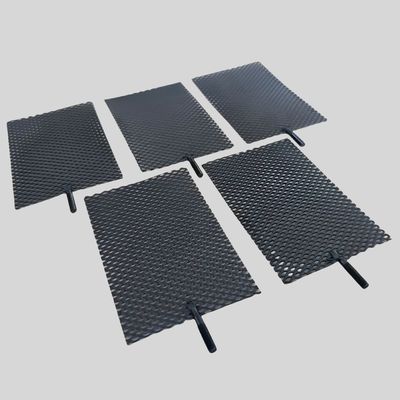

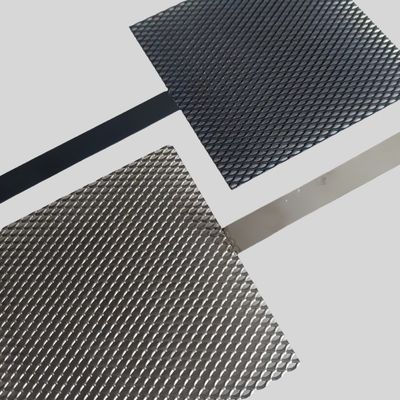

Water Electrolysis Grade1 2 Titanium Expanded Sheet

Quick details of Titanium Expanded Sheet

1) Current density<2000A/M2
2) Temperature<85°C
3) Electrolyte:H2SO4 or HNO3, Neutral
4) PH 0.1~14
5) Max content of Fluoride ion is 200PPM
6) Homogenous degree: >=85%
7) Oxygen-liberated potential <=1.8V

Thickness	0.03mm to 1mm or customized
Opening	0.2mm×0.4mm to 50*100mm
Width	100mm 150mm 200mm 300mm 400mm 1000mm 1200mm or customized
Length	18 20 30 meters roll or customized

Description Titanium Expanded Sheet

Platinum coated Titanium Electrode Mesh for PEMWE is crafted from high-quality Titanium Expanded Sheet, this electrode plate is meticulously coated with dual-sided platinum layers, ensuring optimal performance within the electrolysis chamber. Experience accelerated reaction rates and improved durability in your electrolysis processes, setting sail toward enhanced productivity and reliability.

Benefits of Titanium Expanded Sheet

Combines titanium’s strength with platinum’s electrocatalytic properties.
Resistant to corrosion even thoughTitanium Expanded Sheet is used in aggressive electrolyte bath
The Platinum coating thickness is uniform and the usage life span can be prolonged.
Titanium Expanded Sheet is customizable according to customers’ required dimensions and design.

Titanium Expanded Sheet specification

Overall Thickness	Design Size (in.)		Opening Size (in.)		Strand Size (in.)
	SWD	LWD	SWO	LWO	Width	Thickness
.050	.140	.280	.085	.185	.029	.024
.070	.165	.400	.115	.260	.035	.024
.060	.230	.500	.170	.370	.036	.024
.083	.220	.400	.140	.240	.035	.024
.085	.220	.400	.140	.240	.045	.030
.080	.270	.600	.200	.440	.045	.024
.088	.270	.600	.200	.440	.050	.030
.172	.630	1.575	.428	1.260	.110	.060

Applications of Titanium Expanded Sheet

Commonly used in electroplating and electrolysis.

Platinised Titanium Expanded Sheet Anodes are used in electrochemical processes due to their durability, high current efficiency, and resistance to corrosion. Applications include cathodic protection (to prevent metal corrosion), electroplating (for depositing a metal coating on objects), and water treatment (to purify and desalinate water). Their robustness and longevity make them suitable for harsh environments and demanding industrial processes.

Water Electrolysis Grade1 2 Titanium Expanded Sheet 0
