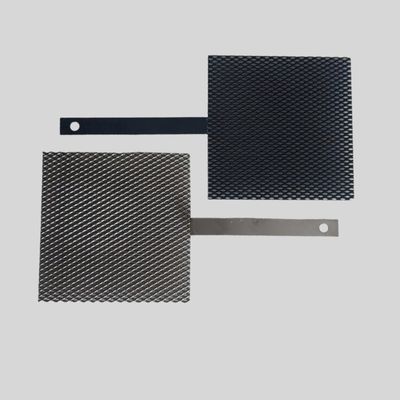

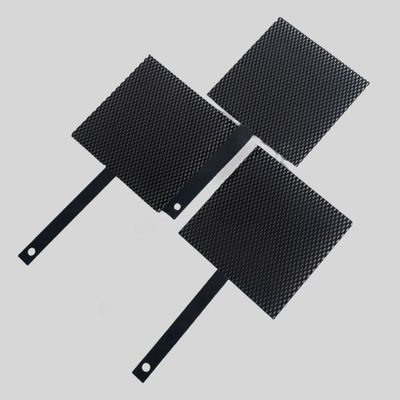

Expanded Mesh Water Treatment Titanium Electrode

Description of Water Treatment Titanium Electrode

Titanium electrode applied for water treatment is mainly in the electrochemical methods, which is an efficient method for the complete elimination of organic pollutants and remediation of wastewater. The titanium electrode also known as the dimensionally stable anode or electrode is one of the greatest technological advancements in the electrochemistry field.

Working processing for water treatment

MMO electrodes, referred to as Dimensionally Stable Anodes , comprise a family of electrodes made from commercially pure titanium to which thermal decomposition applies an electrocatalytic layer. The electrocatalytic layers are composed of a mixture of noble and valve metal oxides, like RuO2, IrO2, Ta2O5, Platinum, or PtO2 the selection of which and their ratio is dictated by the electrolyte conditions in which the anode is immersed. This titanium MMO electrode is stable and has high conductivity and corrosion resistance for use as an anode in the electrochemical water treatment field, such as the production of chlorine, sodium chlorate, and sodium hypochlorite.

Advantage of Water Treatment Titanium Electrode

The titanium MMO electrode for electrochemical water treatment is constructed of a titanium substrate and a special mixed metal oxide coating, which can improve the longevity and efficacy of the anodes against the corrosion of the electrolysis process. This titanium MMO electrode significantly reduced the anode overpotential and therefore the cell voltage, allowing improved cell designs to be introduced, reducing the interelectrode gap to further lower the cell voltage and provide higher efficiencies for chlorine production.

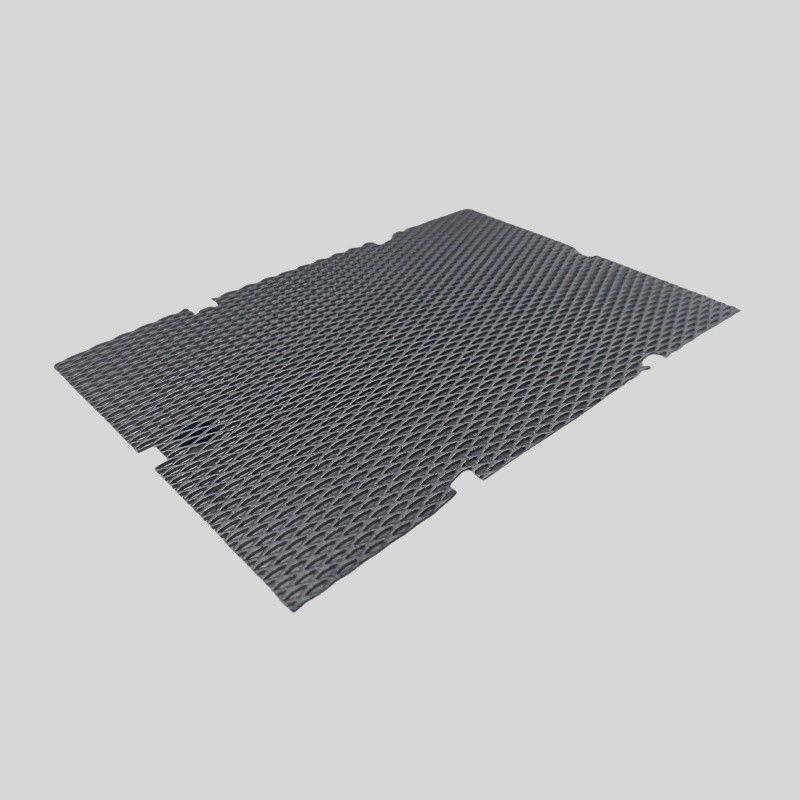

What is expanded Titanium Mesh?

Micro expanded mesh is produced from light gauge metals and foils with excellent ductile. The metals and foils are produced through slit and expand into a high precision mesh material for specific weight and dimensional requirements. We manufactured from 0.002" (50 µm)thick, up to 49.21" (1250 mm) in width. Micro expanded metal has wide ranges of applications in shielding, lightning strike protection, batteries and other applications.
