Home Products

Ultra Fine Wire

0.5mm 99.99% Pure Platinum Metal Wire

Name: 0.5mm 99.99% Pure Platinum Metal Wire
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-PLA0.5
Availability: InStock

Model Number:	HH-PLA0.5
MOQ:	ONE SPOOL
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	5000 spools per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Platinum Metal Wire

Material:

99.99% Pure Platinum

Wire Diameter:

0.5mm

Mircon Size:

500

Application:

Metallurgical, Petrochemical, Electronics, Aerospace

Color:

Silver

Packaging Details:

Spool+ stretch film+carton+pallet

Supply Ability:

5000 spools per 30 days

Highlight:

Pure Platinum Metal Wire

0.5mm Platinum Metal Wire

0.5mm pure platinum wire

Product Description

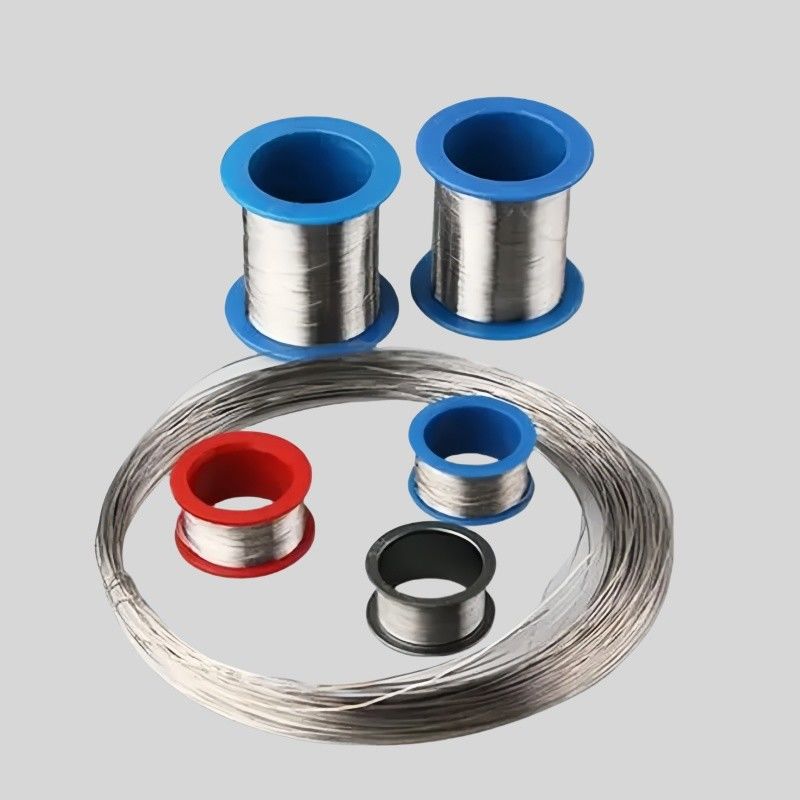

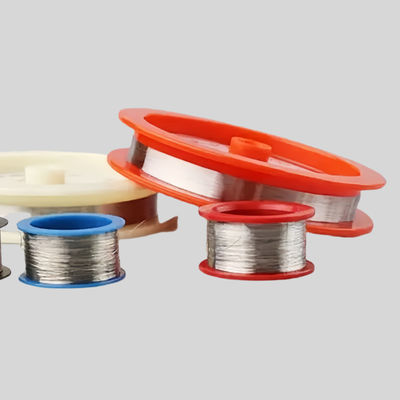

0.5mm 99.99% Pure Platinum Metal Wire

Quick details of Pure Platinum Metal Wire

Material: 99.99% Pure Platinum

Wire diameter: 0.5mm

Platinum's inert properties, high melting point, ductility, and resistance to corrosion and oxidation allow for use in the following industries: Metallurgical, Petrochemical, Electronics, Aerospace

Description of 99.99% Pure Platinum Metal Wire

Platinum gold wire is a silver self colored and glossy metal, which is relatively soft and has good ductility, thermal conductivity, and electrical conductivity. Platinum wire has an excellent flame color reaction effect, with no impurities interfering with the flame color. Fine precious metal wires are widely used in industry, and the unique requirements for wire materials in these industries are very fine wire diameters (starting from 0.015mm) and their strict material properties are necessary. These applications include resistance thermometers and flammable gas detectors. The specifications of silk materials can be customized to meet the requirements of customers.

Material specification of 99.99% Pure Platinum Metal Wire

Item		Platinum wire
Main chemical composition %	Pt	99.99%
	Au,Pd,Rh,Ir,Ag, Cu,Ni,Cu,Ni,Fe, impurity	0.01%




Boiling point(℃)		3827℃
Melting point(℃)		1772℃
Density g/cm3		21.45g/cm3

Material	Melting point °C	Density g/cm
Pure Pt --- Pt(99.99%)	1772	21.45
Pure Rh--- Rh(99.99%)	1963	12.44
Pt-Rh5%	1830	20.70
Pt-Rh10%	1860	19.80
Pt-Rh20%	1905	18.80
Pure Ir --- Ir(99.99%)	2410	22.42
Pt-Ir5%	1790	21.49
Pt-Ir10%	1800	21.53
Pt-Ir20%	1840	21.81
Pt-Ir25%	1840	21.70
Pt-Ir30%	1850	22.15

Thermocouple No. species and sub-degree		Use temperature range°C
Variety	No. graduated	Use temperature range°C
Platinum-Rhodium 10-Platinum	S	0-1600
Platinum-Rhodium 13-Platinum	R	0-1600
Platinum-Rhodium 30-Platinum	B	600-1700
