0.05mm SUS304L Ultra Fine Wire 50 Microns Customized

Name: 0.05mm SUS304L Ultra Fine Wire 50 Microns Customized
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-FINE WIRE
Availability: InStock

Model Number:	HH-FINE WIRE
MOQ:	one spool
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	3000 spool PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

SUS304L Ultra Fine Wire

Wire Dia:

0.05mm

Grade:

SUS304L

Spool Type:

K80

Usage:

Textile Products And Filters

Factory:

Huihao Hardware

Packaging Details:

Spool+ stretch film+carton+pallet

Supply Ability:

3000 spool PER 30 DAYS

Highlight:

sus304l ultra fine wire

ultra fine wire 50 microns

0.05mm extra fine wire

Product Description

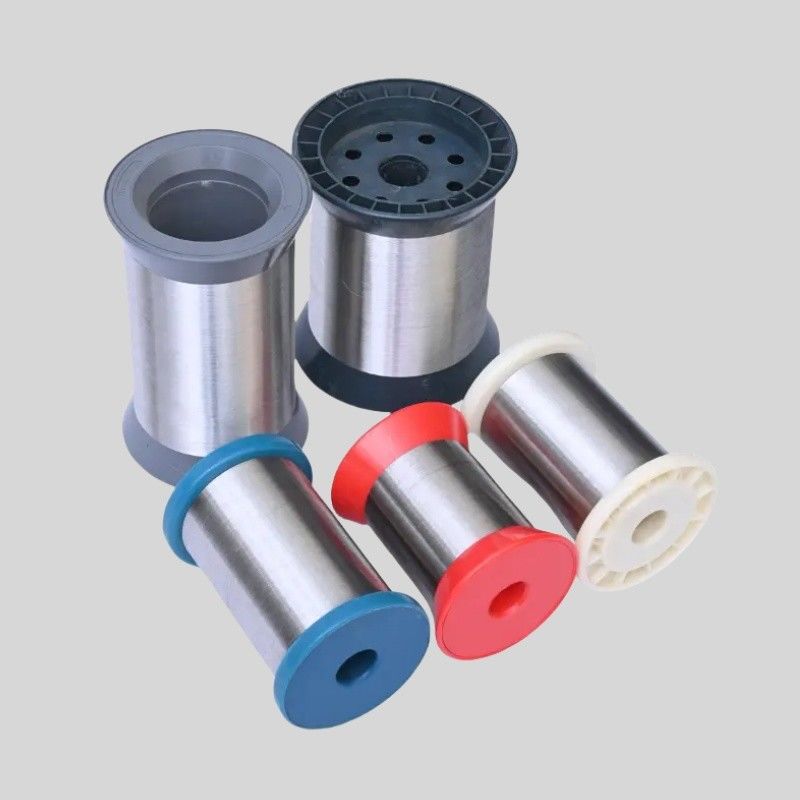

0.05mm SUS304L Ultra Fine Wire

Quick details of SUS304L Ultra Fine Wire

Grade: stainless steel 304L

Wire diameter: 0.05mm (0.00197")

Micron size: 50 microns

Diameter tolerance: 0.001mm

Tensile Strength(N / mm2):686-980

Spool type: KK80,KK125,HK115,PH-1,HK100(1),HK100(2),KK85*90,K60

Applications: Textile products,Filters,Cleaning products,Aerospace,Chemical industry,Medical treatment,Electronic wires,etc.

Specification of SUS304L Ultra Fine Wire

Name:	0.05mm Ultra fine stainless steel wire – 304L
Grade:	AISI 304L
Size(mm):	0.05mm
Size(inch):	0.00197” inch
Size(micron):	50 microns
Diameter tolerance:	±0.001mm
Tensile Strength(N / mm2):	686-980
Elongation(%):	20-30%
Weight(g):	250-600g or customized
Weight(lb):	0.55-1.32lb
Temper:	Annealed and Soft
Spool type:	Customized
Application:	Spinning, weaving , knitting and braiding
MOQ:	≥500kg
Package:	Spool+ stretch film+carton+pallet

Advantages of SUS304L Ultra Fine Wire

SUS304L Ultra fine wire has good thermal conductivity and electrical conductivity.
SUS304L Ultra fine wire has high dimensional accuracy,good flexibility and high tensile strenght.
SUS304L Ultra fine wire has good corrosion resistance ,high temperature resistance and oxidation resistance.
SUS304L Ultra fine wire has good radiation protection,biocompatibility,anti-magnetic,electronic shielding performance,etc.
SUS304L Ultra fine wire is widely used in textile,medical,electronic appliances,filtration,machinery and precision instruments, chemical industry,aerospace,etc.
