Ultra Fine Wire
Created with Pixso.

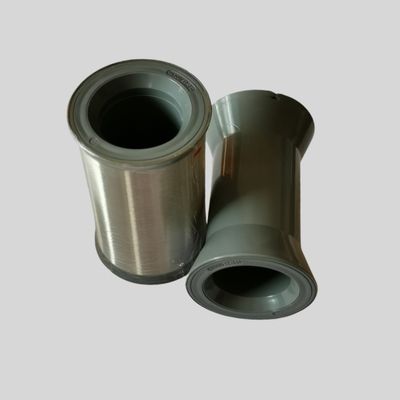

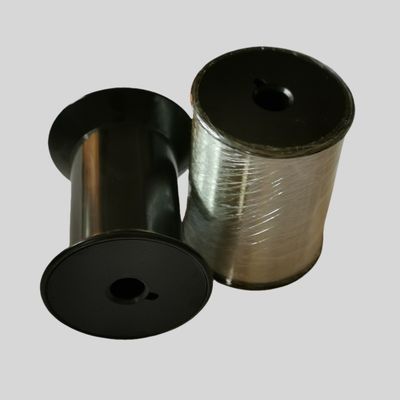

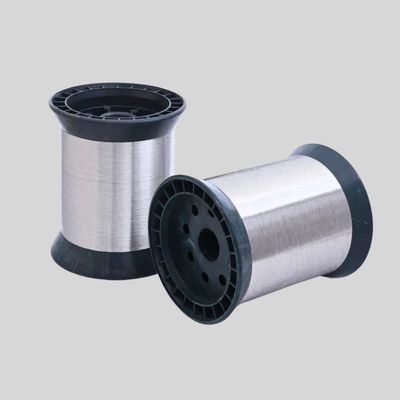

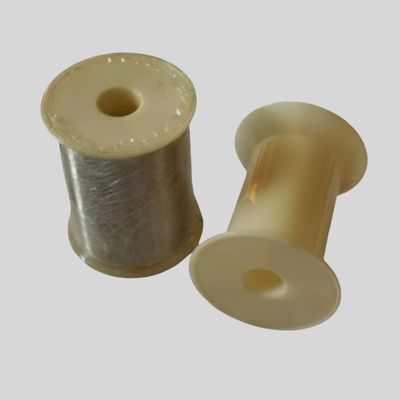

304 Stainless Steel Ultra Fine Wire Spool Package Type

304 Stainless Steel Ultra Fine Wire Spool Package Type

304 Stainless Steel Ultra Fine Wire Spool Package Type

Model Number: HH-FINEWIRE
MOQ: one spool
Price: contact with us
Payment Terms: L/C, T/T, Western Union, Alipay
Supply Ability: 3000 spool PER 30 DAYS
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Stainless Steel Ultra Fine Wire
Material:
Ss304 Round Wire
Wire Diameter:
0.01mm-0.82mm
Package Type:
Spool
Mircon Size:
10-820
Customized:
Different Alloy Wire And Wire Diameter
Packaging Details:
10 spool PER carton
Supply Ability:
3000 spool PER 30 DAYS
Highlight:

Stainless Steel Ultra Fine Wire

,

ss304 Ultra Fine Wire

,

round Ultra Fine Wire

Product Description



Stainless Steel Ultra Fine Wire


These fine wires can be manufactured within the range of 0.01 mm to 0.82 mm (0.0004” to 0.032”), boasting exceptional precision in diameter and ovality tolerances. Available in various tensile strengths and spool options, they can be tailored to suit specific applications. The wires can be provided in either a soft annealed state or as hard drawn.


Dimension tolerances of stainless steel ultra fine wire


Wire can be supplied to specific tolerance. However, dimension tolerance and resistance tolerance can not be specified simutanelously.


Wire size mmMax out of roundness mm
0,05 to <0,100,0025
0,10 to <0,200,005
≥0,20

0,010




Specification of stainless steel ultra fine wire



304 Soft Wires
Ø
(mm)		Tolerance
(mm)		Ovality
(mm)		Tensile Strength
(kgf / mm2)		Tensile Strength
(N / mm2)		Elongation
(%)
0.03± 0.0030.00370 – 100686 – 98010 min
0.04
0.05± 0.0040.004
0.0670 – 90686 – 88220 min
0.07
0.08
0.09± 0.0050.005
0.10
0.12± 0.0070.007
0.14
0.16
0.18± 0.0100.01070 – 85686 – 833
0.20
0.25



Advantage of stainless steel ultra fine wire

  • Selection of ultra-pure raw materials
  • Utilization of cutting-edge production equipment
  • Guaranteed dimensions and tolerances
  • Stable mechanical performance
  • Extended service life
  • High yield of finished products
