Home Products

Ultra Fine Wire

Stainless Steel Micro Wire For Textile Sewing Metallic Yarn

Name: Stainless Steel Micro Wire For Textile Sewing Metallic Yarn
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-FINE WIRE
Availability: InStock

Model Number:	HH-FINE WIRE
MOQ:	ONE SPOOL
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	3000 spool PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Micro Wire

Material:

AISI 304,304L,316,316L

Standard:

ISO 4782 - DIN 177, ASTM A478

Wire Diameter:

0.018mm -0.05mm

Wire Type:

Ultra Fine Wire

Application:

Textile Sewing Metallic Yarn

Packaging Details:

10 spool PER carton

Supply Ability:

3000 spool PER 30 DAYS

Highlight:

Textile Sewing Micro Wire

Metallic Yarn Micro Wire

Stainless Steel Micro Wire

Product Description

316L Stainless Steel Micro Wire for Mesh Weaving Textile Sewing Metallic Yarn

stainless steel micro wire (often referred to as “wet drawn” stainless fine wire) is wire of diameters generally < 0.025” with bright finish due to drawing through diamond dies immersed in oil. Grades of stainless steel fine wire cover the whole range of stainless steels compositions

Description of stainless steel micro wire

Our products strength and elongation.

material	Wire Dia.(mm)	strength(mpa)	EL(%)	SWG	AWG	Inch	Allow difference (mm)
316L	0.035	570-800	≥22		AWG 47	0.00138	+0.002 -0.001
316L	0.04	550-800	≥23	SWG 48	AWG 46	0.00158	+0.002 -0.001
316L	0.05	680-850	≥24	SWG 47	AWG 44	0.00197	±0.002

Product name	Stainless steel wire, Stainless steel yarn, metallic yarn, Cut Resistant Yarn
Grade	304, 304L, 316, 316L, etc
Diameter	0.018mm-0.05mm
Condition	soft wire, semi-soft wire, hard wire
Surface	electrolysis bright, bright, matt.
Type	Hydrogen, Cold rolled, light

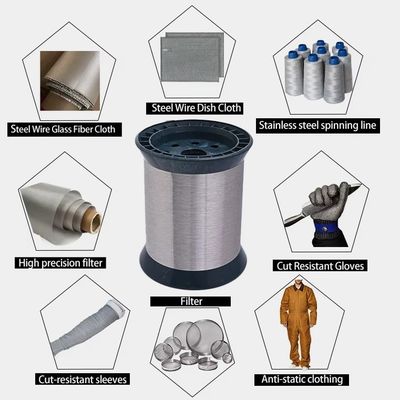

Stainless steel fine wire is mostly used in Weaving, Knitting and Braiding applications such as :

Woven wire for cloth and mesh : filtration, architectural & decorative applications,…
Knitted wire for filtration
Agricultural fine wire for beehives frames
Braided wire for flexible hoses :domestic & industrial hydraulic applications
Medical wire for dental applications
Stranded wire for various types of cables, rigging slings & cables in boats, etc..
Locking wire for safety applications in vehicles, motorcycles, aircrafts ,etc
