Proofing Bird Mesh For Solar Panel

Quick details of Proofing Bird Mesh

Proofing Bird Mesh Width: 203 mm
Proofing Bird Mesh Length: 30 meters
Proofing Bird Mesh Weight: 3.6 kgs per roll
Color: Black
Mesh aperture (mm): 12.7 x 12.7
Wire diameter before PVC Coating: 0.70 mm
Wire Diameter After PVC Coating: 1.00 mm
Proofing Bird Mesh Finshed: PVC
Material: Stainless steel 304 wire

Description of Proofing Bird Mesh

Solar Proofing bird mesh will protect your solar panels from potential damage and loss of efficiency caused by pigeons, and debris.  The PVC coated stainless steel mesh has been specifically designed for long lasting and non-rusting quality.  Installing proofing bird mesh around the perimeter of the solar panels will prevent damage to wiring, corrosion (caused by bird droppings) to your roof and stop animals including birds and rodents living under your solar panels.

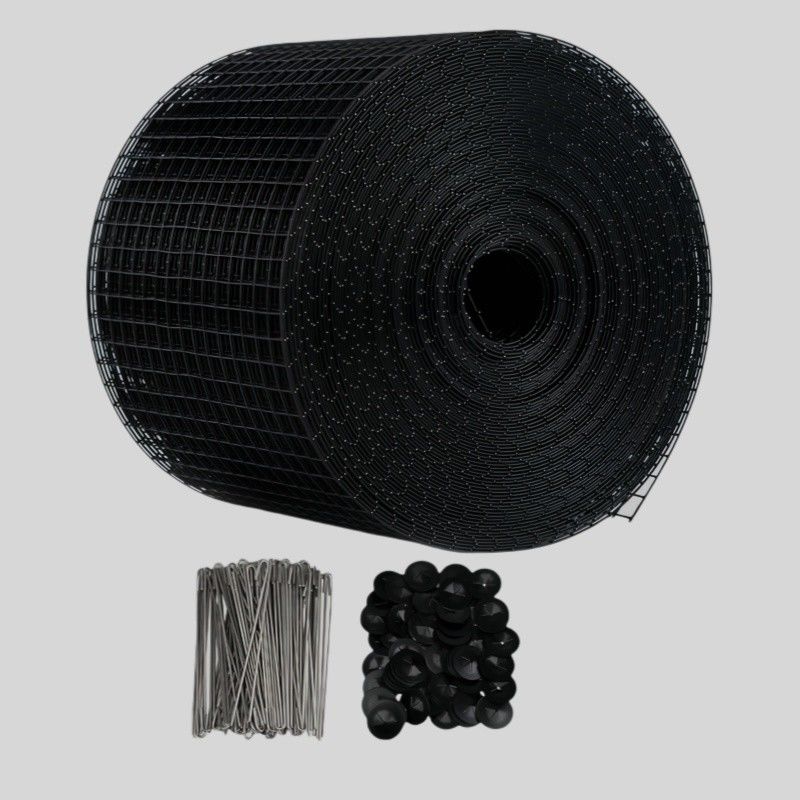

30M Solar panel Proofing Bird Mesh Kit Contains:

• 1 X 30M PVC Coated stainless steel wire mesh
• 100 sets fasteners, self locking washer and J hooks

Installation processing for fixing solar panel brid mesh

1. Cut the mesh to an appropriate size for your solar panel.

2. Use a piece of plywood to bend the solar panel proofing bird mesh at a 45-degree angle so that it sits on the roof.

3. Attach a hook to the solar panel.

4. Place clips every 18inches.

5. Thread the hooks through the mesh.

6. Add a washer to the hook.

7. Slide washers down the hook.

8. Once all washers are added, slide them up against the solar panel proofing bird mesh to secure.

9. Cut the excess portion of the hooks just past the washers to complete.
