Solar Panel Bird Mesh
Created with Pixso.

Solar Panel Critter Guard Kit

Solar Panel Critter Guard Kit

Model Number: HH-SPKIT
MOQ: one carton
Price: Contact us get lowest price
Payment Terms: L/C,T/T,Western Union
Supply Ability: 6000 kits per 30 days
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Solar Panel Critter Guard Kit
Mesh Type:
Welded Wire Mesh
Mesh Aperture:
12.7mm X12.7mm
Wire Diameter:
0.7mm / 1mm Pvc Coated
Fasteners:
SS/ALU/ Nylon Material Speed Clips
Carton Size:
30cm X30 Cm X22cm
Gross Weight:
4.153 Kgs / CNT
Net Weight:
3.601kgs / Cnt
Packaging Details:
in rolls for easy handling. Secured with protective wrap
Supply Ability:
6000 kits per 30 days
Highlight:

Solar Panel Critter Guard Kit

,

solar panel critter guards Kit

,

welded Solar Panel Critter Guard

Product Description



Solar Panel Critter Guard Kit



Quick details of Solar Panel Critter Guard Kit



Premium weather-resistant galvanized steel Hot-Dipped in black PVC-coated, 17 gauge, 1/2" wire mesh.

Fasteners clips: 100 pcs of j hook and self locking washer for 100 ft mesh, available material include stainless steel, aluminum and nylon.

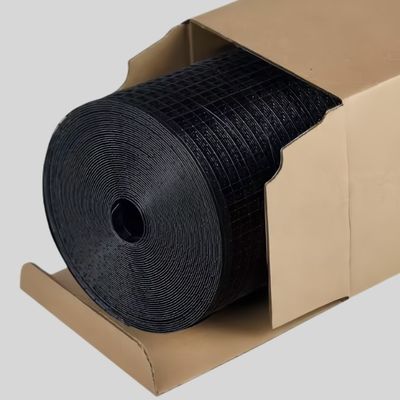

Pack solar panel critter guard kit details + clips (Box):

Carton size: Length: 30 cm Width: 30 cm Height: 22 cm
Gross Weight: 4.153 kg/ carton
Mesh Aperture (mm): 12.7 x 12.7
Wire Diameter Before PVC Coating: 0.70 mm
Wire Diameter After PVC Coating: 1.00 mm



Description of Solar Panel Critter Guard Kit

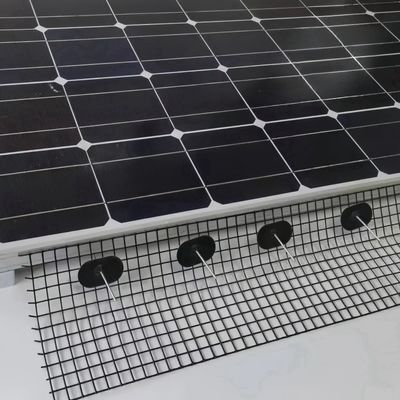

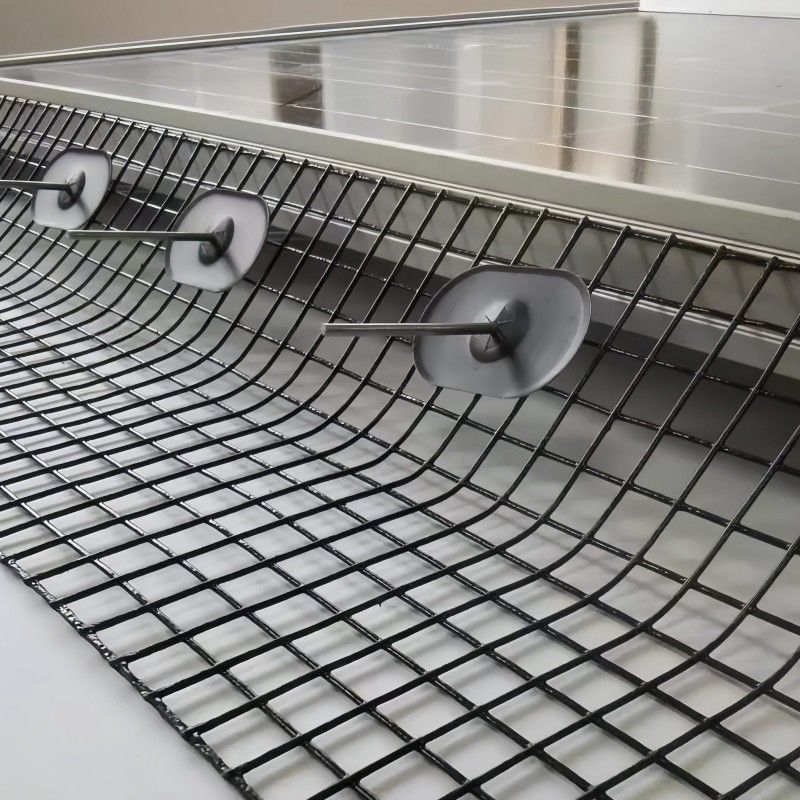

The Solar Panel Critter Guard Kit includes 100 ft. of stainless steel mesh and 100  solar clips for easy installation. Mesh and clips can be purchased separately. Stainless steel mesh creates a physical barrier around the perimeter of the panel, effectively blocking all pest animals from entering. Solar clips are the easiest way to secure solar mesh without voiding the panel’s warranty. When installed properly, this system is 100% effective.



Most popular size of  weld mesh for Solar Panel Critter Guard Kit



Popular Specification For Solar Panels Bird Barrier Proofing
Wire Diameter/After PVC Coated Diameter 0.7mm/1.0mm , 1.0mm/1.5mm , 1.0mm/1.6mm
Mesh Opening 1/2”X1/2” mesh,
mesh Width

4 inch , 6 inch ,

8 inch , 10 inch

Length 100ft / 30.5m
mesh Material Hot dipped galvanized wire or electro galvanized wire
Remark: Specification can be customized according to customers’ request

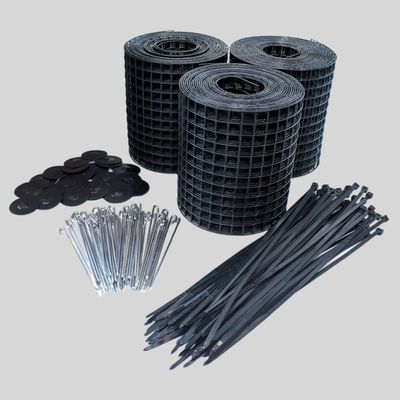

  • 100 sets fasteners, self locking washer and J hooks for one roll weld wire mesh
Material

aluminum and aluminum alloy

Stainless steel

J hook size in common:  2.4mmx100mm 2.0mmx120mm
Surface treatment phosphating Polish
Solar panel clips including J hook nails and self locking washers
Self locking washer size: 29mmx31mm, 30mmx30mm, 30mmx60mm

Calculating the necessary number of clips: Use 2 clips for the short side of every exposed edge of a panel and 3 clips for the long side of every exposed edge of a panel.



Why choose Huihao company?



Huihao mesh is the leading manufacturer of humane bird and wildlife control solutions. Our company supplies a complete line of unique products for all types of structures.
We are dedicated to providing a diverse line of professional grade
products and hardware for all types of bird jobs Free consultations for installers
Personalized virtual training for you and your company
Industry leading customer service team
Products ship from multiple Cina. locations to ensure a timely delivery
