Home Products

Solar Panel Bird Mesh

Rooftop Barrier Solar Panel Bird Mesh Welded And Pvc Coated And Cut

Name: Rooftop Barrier Solar Panel Bird Mesh Welded And Pvc Coated And Cut
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: hh-spkit
Availability: InStock

Model Number:	hh-spkit
MOQ:	30m mesh+100 pcs fasteners
Price:	contact us
Payment Terms:	T/T,alipay
Supply Ability:	6000 cartons kit per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Rooftop Barrier Solar Panel Bird Mesh

Mesh Tchnical:

Welded And Pvc Coated And Cut

Mesh Aperture:

12.7mm, 25.4mm, 12.7mm X25.4mm

Wire Diameter:

0.7mm, 0.9mm, 0.1mm, 0.11mm

Mesh Width:

4inch, 6inch, 8inch, 10 Inch

Mesh Roll Length:

100 Ft In Common

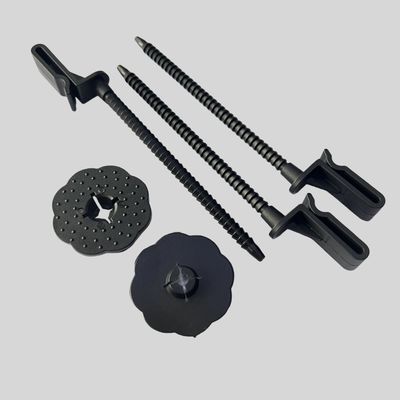

Clips:

100mm J Hook, 30 Mm Self Locking Washer

Customized:

Cut Into Different Size And Shape

Packaging Details:

carton / pallet

Supply Ability:

6000 cartons kit per 30 days

Highlight:

Rooftop Solar Panel Bird Mesh

Rooftop solar panel bird barrier

Solar Panel Bird Mesh Pvc Coated

Product Description

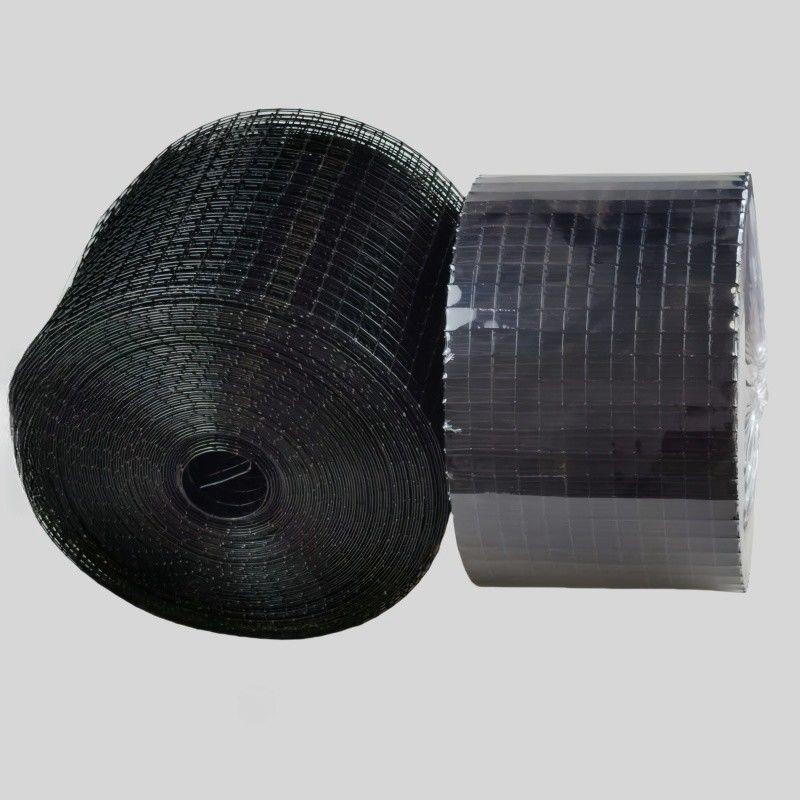

Rooftop Barrier Solar Panel bird mesh

Why Rooftop Barrier Solar Panel bird mesh Needed?

Made with steel wire welded mesh fence.
PVC coated,popular width 6in,8in,12in, length 100ft.
This solar panel bird mesh designed specifically to keep birds and other wildlife from gaining access to the underside of Solar Panels.
This non-penetrating system is fast and easy to install. The black solar panel bird mesh is locked in place by our Solar Panel Clips.

Solar panel bird mesh features

Fast and easy to install, no gluing or drilling necessary.
solar panel bird mesh does not void warranties and can be removed for servicing.
Non-invasive installation method that neither pierces the solar panel nor the roof covering.
solar panel bird mesh is better than using spikes or repellent gels,100% effective when properly installed.
long-lasting, durable, non-corrosive.
Reduce the cleaning and maintenance requirements for solar panels.

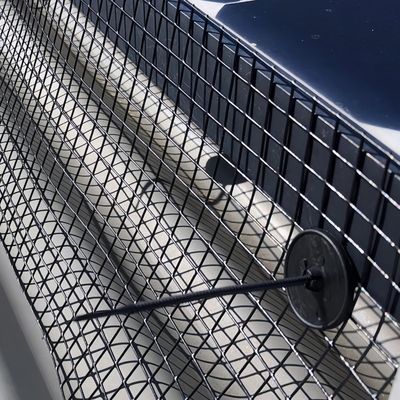

What Will Solar panel bird mesh for installation?

1. Cut the PVC-coated weld mesh to an appropriate size for your solar panel

2. Use a piece of plywood to bend the mesh at a 45-degree angle so that it sits on the roof

3. Attach a clip to the solar panel

4. Place clips every 18 inches

5. Thread the clips through the weld wire mesh

6. Add a washer to the threaded clip

7. Slide washers down the threaded clip. but not all the way to the mesh

8. Once all washers are added, slide them up against the mesh to secure

9. Cut the excess portion of the threaded clips just past the washers to complete

Popular weld wire mesh size for solar panel bird mesh

Popular Specification For Solar Panel Mesh Solar Skirts
		Wire Diameter/After PVC Coated Diameter	0.7mm/1.0mm , 1.0mm/1.5mm , 1.0mm/1.6mm
Mesh Opening	1/2”X1/2” mesh, 1/2" x 1" mesh, 1" x 1" mesh
		Width	4 inch , 6 inch , 8 inch , 10 inch
Length	100ft / 30.5m
		Material	Hot dipped galvanized wire electro galvanized wire
Remark: Specification can be customized according to customers’ request
