Home Products

Copper Wire Mesh

150 200 250 Mesh Copper Woven Wire Mesh Plain Weave

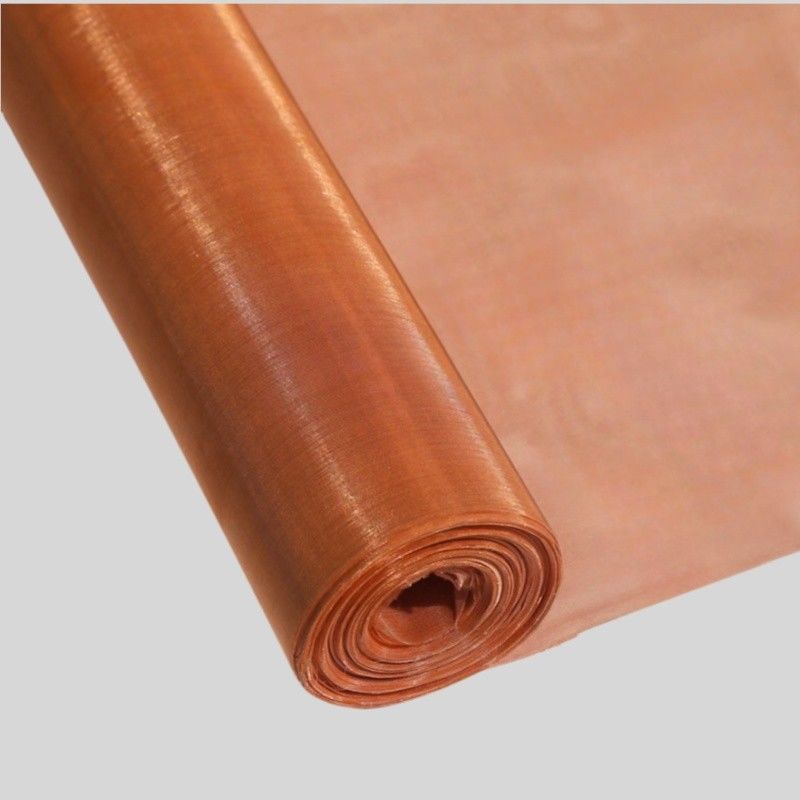

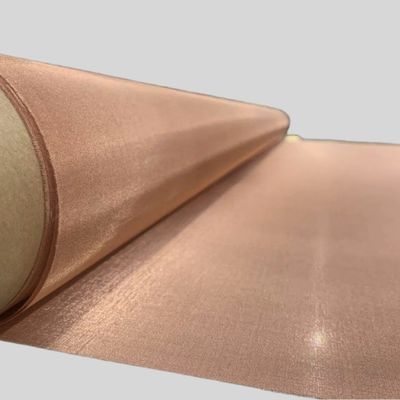

Name: 150 200 250 Mesh Copper Woven Wire Mesh Plain Weave
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: hh-cwm
Availability: InStock

Model Number:	hh-cwm
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

iso9001-2018

Name:

Copper Wire Woven Fabric

Mesh:

150, 200, 250

Material:

99.9% Copper

Weave Technique:

Plain Weave

Width:

1m, 1.5m, 1.5m And 2m

Usage:

Fabric

Packaging Details:

Water-Proof Paper Insides and Wooden Case Outsides

Supply Ability:

30000 square meters per 20 days

Highlight:

copper woven wire mesh plain

250 mesh copper woven wire mesh

150 woven copper mesh

Product Description

Copper Wire Woven Fabric Wire Mesh Cloth

Description of copper wire woven fabric

Copper wire woven fabric is also called red copper mesh. The purity of copper is 99.99%. The aperture of copper wire mesh can range from 2 meshes to 300 meshes, which can suit for different requirements. Except for pure copper woven wire mesh, there are copper alloy wire mesh, such as brass wire mesh and phosphor bronze wire mesh.

Copper wire woven fabric is non-magnetic, so it is also called shielding screen mesh in the circuits, laboratories and computer rooms, it also has outstanding wear resistance and sound insulation performance.

Due to the excellent conductive property of copper, Radio Frequency Interference Shielding, Grounding Grids and Lighting Arrestor Elements commonly incorporate copper wire cloth. Copper wire mesh applications may be limited due to its low tensile strength, poor resistance to abrasion and common acids.

The chemical composition of copper wire mesh is 99.9% copper, it is a soft and malleable material. Copper wire mesh is available in various mesh counts to produce specific opening sizes to meet our industrial users' requirements.

Cu	O	As	Sn	Zn	Pb	P	Fe	Sb	Bi
≥99.95%	≤0.002%	≤0.002%	≤0.002%	≤0.005%	≤0.005%	≤0.002%	≤0.004%	≤0.002%	≤0.002%

Specification of copper wire woven fabric

Mesh/In	Wire Dia.(In)	Opening(In)	Open Area(%)	Weave Type	Width
2	0.063	0.437	76	PSW	36"
4	0.047	0.203	65	PSW	40"
8	0.028	0.097	60	PSW	36"
16	0.018	0.044	50	PSW	36"
18 X 14	0.011	0.044 X 0.06	67	PW	48"
18 X 14	0.011	0.044 X 0.06	67	PW	60"
20	0.016	0.034	46	PSW	36"
30	0.012	0.021	40	PSW	40"
40	0.01	0.015	36	PSW	36"
50	0.009	0.011	30	PSW	36"
100	0.0045	0.0055	30	PSW	40"
150	0.0026	0.004	37	PSW	36"
200	0.0021	0.0029	33	PSW	36"
250	0.0016	0.0024	36	PSW	40"
325	0.0014	0.0016	29	TSW	36"
400	0.00098	0.00152	36	PSW	39.4"

Popular Industries and Applications Of copper wire woven fabric

Energy storage
Electric heaters
Pest control fumigation
Tactical shelters & modular containers
Robotics & power automation
Gamma irradiators

Health, body and mind enrichment
Space program initiatives (NASA)
Metalsmithing & bookbinding
Air & liquid filtration and separation
