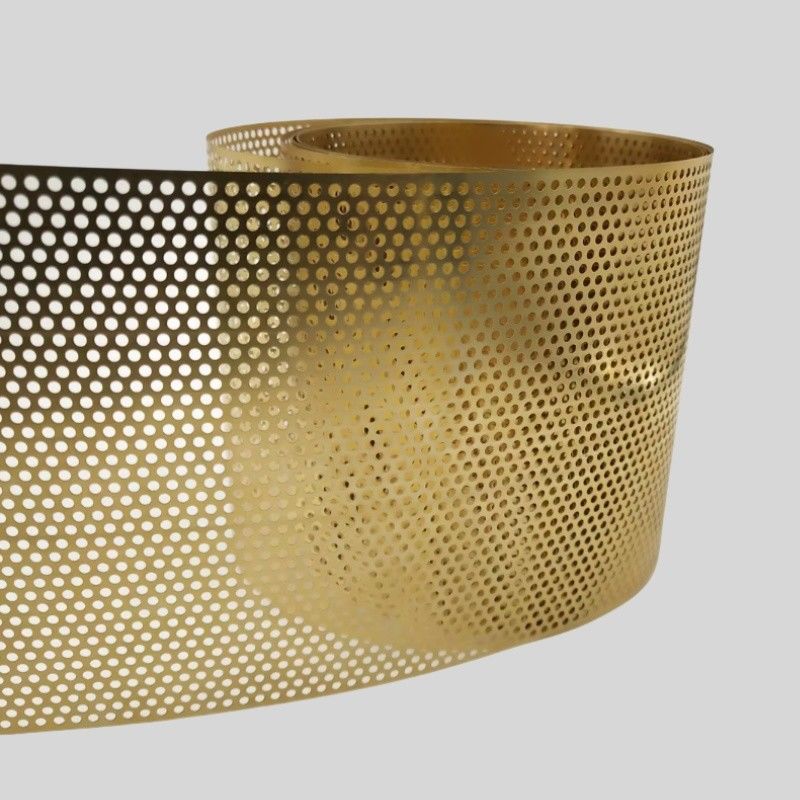

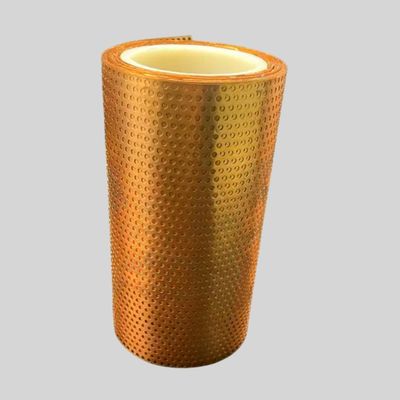

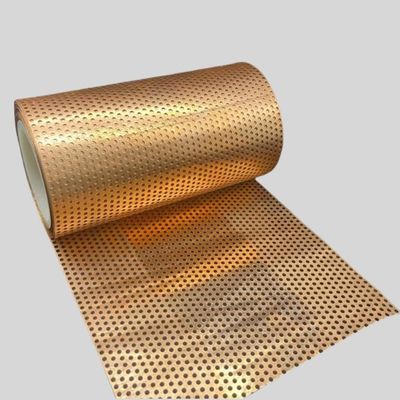

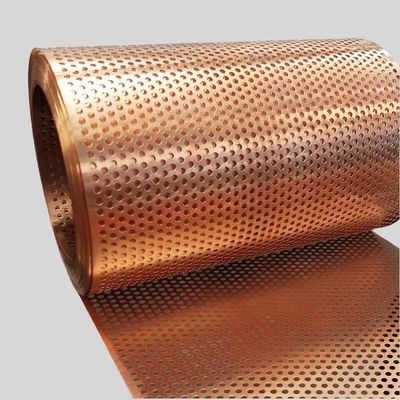

Micro hole Perforated Copper Mesh

Quick details of  Micropore Perforated Copper Mesh

Material: copper sheet or brass sheet

Sheet size: 10mm to 1500 mm width and length

Thickness: 0.1mm-1.0mm

Common hole sizes:

• 0.4mm Hole
• 0.5mm Hole
• 0.6mm Hole
• 0.8mm Hole
• 1mm Hole
• Custom size

Description of  Micropore Perforated Copper Mesh

Micro Hole Perforated copper always means the hole size smaller than 1.0 mm. Our CNC Punching machine can make the smallest 0.4 mm & 0.5 mm, Etching Micro Hole Perforated Metal Mesh can be 0.2 mm and even smaller, and Drilling perforated copper make holes smaller than thickness.

Our Micro Hole Perforated Metal made by 0.1–1.0 mm copper sheet, brass sheet and other metal plate.

Micro Hole Perforated Metal are different than common hole size perforated metal. The hole size can't be larger than thickness, for these kind of sheets, diameter of holes and thickness are the same most of times (also called holes-as-thickness). It is for chemical, food and mechanical purpose. We have more than one hundred ready tooling molds in stock to make Micro Hole Perforated Metal in to 10mm to 1500 mm width and length can be custom made.

Specification of  Micropore Perforated Copper Mesh

Applications of Micro Hole Perforated copper mesh

Food and beverage industry: Microporous plates and perforated plates are used in centrifuges, sugarcane filters, etc.

Electronics industry: Microporous plates are used in fields such as integrated circuit printing, fluorescent screen electronic grids, microelectrode assemblies, and electronic substrates.

Industrial manufacturing: It is used for manufacturing signs, trademarks, and fine crafts, as well as inside dryers in melamine powder production plants.

Why Choose huihao Micro Hole Perforated copper mesh

Fine quality, no broken holes, no burr,no random spacing,clean and flat.

ONE-STOP TOP Perforated Metal supplier. We can make supply all the specifications and patterns.

All standard commonly required specifications are in stock for urgent or small quantity needs.

Additional fabrication service such as laser cutting, water jets, cutting, rolling, bending, welding, polishing, coating are available from us at good quality and price.
