CABLE CONNECTION WIRE ROPE NETTING FOR STAIRCASE PROTECTION

CABLE CONNECTION WIRE ROPE NETTING FOR STAIRCASE PROTECTION

Brand Name:	HUIHAO KASITE
Model Number:	HH-WRN-1.5
MOQ:	1M2
Price:	USD10-USD28/M2
Payment Terms:	T/T,L/C
Supply Ability:	600000 SQUARE METERS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Wire Rope Netting

Material:

Stainless Steel 304 / 314

Application:

STAIRCASE PROTECTION

Direction:

Horizontal Mesh Diamond Direction, Vertical Mesh Diamond Direction

Opening Angles:

60° Standard

Maximum Opening Angle:

70–75°.

Packaging Details:

STANDARD EXPORT PACKAGE: WOODEN CASE /PALLET

Supply Ability:

600000 SQUARE METERS PER 30 DAYS

Highlight:

wire rope mesh for staircase protection

cable connection wire rope netting

staircase safety wire rope mesh

Product Description

CABLE CONNECTION WIRE ROPE NETTING FOR STAIRCASE PROTECTION

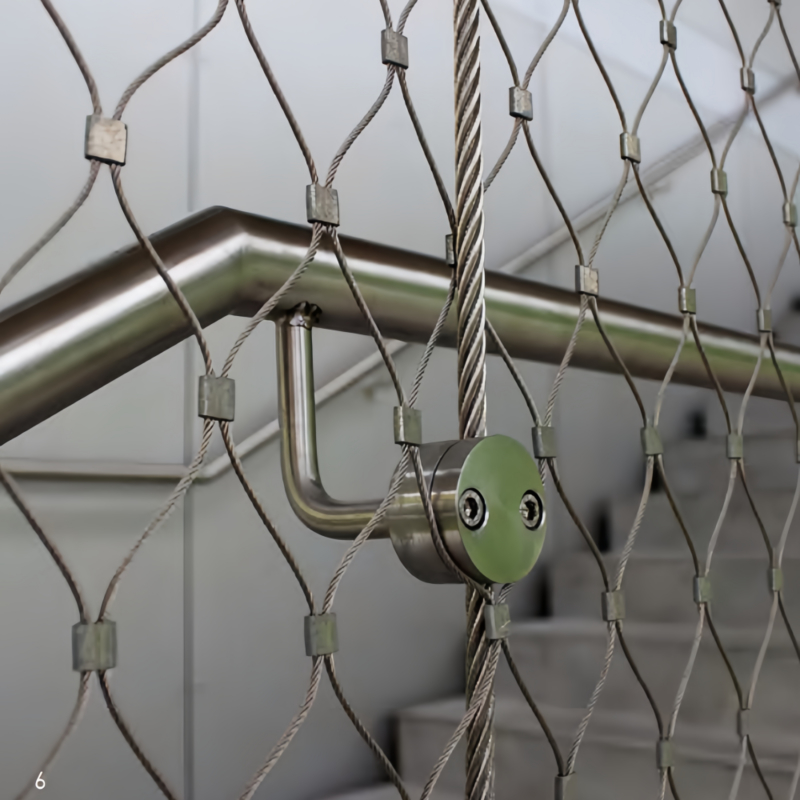

Features of Staircase, handrail attached to vertical cable with screw-on cross clamp

Safety meets design
Transparent and flexible
Lightweight and sturdy
2D or 3D configurations available
Innovative and durable construction
High-quality stainless steel materials
Available in various colors
Suitable for both interior and exterior use
Offers many practical benefits
Enhances aesthetics and lifestyle
Sustainable and recyclable materials
Exceptionally versatile applications

Wire Rope Netting Mesh Directions

There are three possible mesh diamond directions in relation to the building and the frame:

Horizontal
Vertical
Diagonal

Economic considerations: The longer the wire rope netting mesh panels with horizontal mesh diamond direction, the more economical. Sub-structures, such as those for balustrades, are generally less costly when small individual mesh panels are avoided.

The horizontal mesh diamond direction is the most commonly used solution. Wire rope balustrade mesh is often implemented with horizontal mesh diamond direction and long continuous mesh panels, representing the most economic solution. These mesh panels can be installed adjacent to one another over any length or joined together on-site using specialized tools, creating nearly invisible seams.

The horizontal mesh diamond direction works well for both large installations and small individual panels. When wire rope netting mesh panels are joined together continuously to the sides, they create a vertical mesh diamond direction. This configuration can also be assembled on-site with proper tools. Vertical mesh diamond direction may be preferable for larger mesh widths and safety-critical applications.

High vertical mesh panels often feature vertical mesh diamonds for both visual impact and structural requirements, particularly in facade applications or vertical fall protection systems. Round geometries are typically realized using vertical mesh diamonds.

Wire Rope Netting Specifications

Standard sizes of steel cable netting (custom sizes available):

Item No.	Cable Diameter	Mesh Opening Size (W×H)
HH-32120F	1/8 inch (3.2 mm)	4.75 x 8.23 inch (120 x 207.8 mm)
HH-32102F	1/8 inch (3.2 mm)	4 x 6.9 inch (102 x 176.7 mm)
HH-3290F	1/8 inch (3.2 mm)	3.55 x 6.15 inch (90 x 156 mm)
HH-3276F	1/8 inch (3.2 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-3251F	1/8 inch (3.2 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-24102F	3/32 inch (2.4 mm)	4 x 6.9 inch (102 x 176.7 mm)
HH-2490F	3/32 inch (2.4 mm)	3.55 x 6.15 inch (90 x 156 mm)
HH-2476F	3/32 inch (2.4 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-2460F	3/32 inch (2.4 mm)	2.4 x 4.16 inch (60 x 104 mm)
HH-2451F	3/32 inch (2.4 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-2076F	5/64 inch (2.0 mm)	3 x 5.2 inch (76 x 131.6 mm)
HH-2060F	5/64 inch (2.0 mm)	2.4 x 4.16 inch (60 x 104 mm)
HH-2051F	5/64 inch (2.0 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-2038F	5/64 inch (2.0 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1676F	1/16 inch (1.6 mm)	1.2 x 2.08 inch (76 x 131.6 mm)
HH-1651F	1/16 inch (1.6 mm)	2 x 3.46 inch (51 x 88.3 mm)
HH-1638F	1/16 inch (1.6 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1630F	1/16 inch (1.6 mm)	1.2 x 2.08 inch (30 x 52 mm)
HH-1625F	1/16 inch (1.6 mm)	1 x 1.73 inch (25.4 x 44 mm)
HH-1238F	3/64 inch (1.2 mm)	1-1/2 x 2.6 inch (38 x 65.8 mm)
HH-1230F	3/64 inch (1.2 mm)	1.2 x 2.08 inch (30 x 52 mm)
HH-1225F	3/64 inch (1.2 mm)	1 x 1.73 inch (25.4 x 44 mm)
HH-1220F	3/64 inch (1.2 mm)	4/5 x 1.39 inch (20 x 34.6 mm)
