80 Mesh Stainless Steel Wire Netting Plain Weave For Filter

80 Mesh Stainless Steel Wire Netting Plain Weave For Filter

Model Number:	HH-SS200
MOQ:	5 roll wire mesh
Price:	USD100-140/roll
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 rolls wire mesh with in 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Wire Netting

Material:

Stainless Steel

Mesh Type:

Plain Weave

Mesh No:

80 Mesh

Usage:

For Filter Mesh

Roll Width:

3', 4 ',5 ', Etc

Roll Length:

100' In Common

Key Words:

SS Wire Mesh

Packaging Details:

Paper tube+water proof paper outside , then put into wooden case

Supply Ability:

3000 rolls wire mesh with in 30 days

Highlight:

80mesh stainless steel wire netting

Filter stainless steel wire netting

Filter stainless steel netting

Product Description

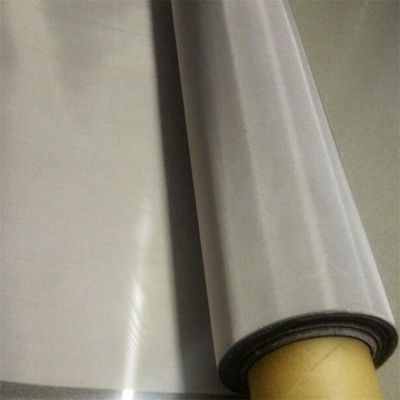

80 Mesh Stainless Steel Wire Netting Plain Weave For Filter

Quick details of Stainless Steel Wire Netting

Product name : Stainless steel wire netting , asls name stainless steel wire mesh,stainless steel wire cloth
Material: stainless steel 304
Mesh no:80 mesh
Wire Diameter:0.12mm
Mesh opening :0.20mm
Roll widht :3' ,4',5' in common , also could be customized .
Used for; Filter screen

Description of Stainless Steel Wire Netting

Plain weave stainless steel wire netting , a fundamental structure in wire mesh manufacturing, is characterized by its simple crisscross pattern where each warp wire alternately passes over and under each weft wire¹⁵⁸. This interlacing method creates a uniform grid with balanced tensile strength and dimensional stability.

High Performance: These metal wire meshes have high tensile strength, rust and corrosion resistance, high temperature resistance of 600°C, acid and alkali resistance, will not leave rust on bricks or wood, and are easy to maintain.

Material: Woven mesh is made of high-quality stainless steel, with fine and uniform mesh, tear resistance, sturdiness and durability, good toughness, not easy to break, and long service life.

Easy to use: You can cut and bend the screen at will to get different shapes and sizes required for daily use, easy to operate and care.

80 Mesh Stainless Steel Wire Netting Plain Weave For Filter 0

Standard Speficiation of Stainless Steel Wire Netting

Stainlsss Steel Wire Netting
Mesh Count	Wire Diameter		Mesh Hole Size		Thickness	Maximum Width	Opening rate
Mesh Count	Inches	mm	Inches	mm	mm	mm	%
50 × 50	0.0090	0.2290	0.0110	0.2800	0.46	2000	30.3
50 × 50	0.0080	0.2030	0.0120	0.3100	0.41	2000	36.5
60 × 60	0.0075	0.1910	0.0092	0.2300	0.38	2000	29.8
60 × 60	0.0070	0.1780	0.0097	0.2500	0.36	2000	34.1
70 × 70	0.0065	0.1650	0.0078	0.2000	0.33	2000	30.0
80 × 80	0.0055	0.1400	0.0070	0.1800	0.28	2000	31.6
80 × 80	0.0047	0.1200	0.0077	0.1970	0.24	2000	38.6
90 × 90	0.0050	0.1270	0.0061	0.1600	0.25	2000	31.1
100 × 100	0.0045	0.1140	0.0055	0.1400	0.23	2000	30.4
100 × 100	0.0040	0.1020	0.0060	0.1500	0.20	2000	35.4
100 × 100	0.0035	0.0890	0.0065	0.1700	0.18	2000	43.1
110 × 110	0.0040	0.1016	0.0051	0.1295	0.20	2000	31.4
120 × 120	0.0037	0.0940	0.0046	0.1168	0.19	2000	30.7
150 × 150	0.0026	0.0600	0.0041	0.1041	0.12	2000	40.2
160 × 160	0.0025	0.0635	0.0038	0.0965	0.13	2000	36.4
180 × 180	0.0023	0.0584	0.0033	0.0838	0.12	2000	34.7
200 × 200	0.0021	0.0533	0.0029	0.0737	0.11	2000	33.7
250 × 250	0.0016	0.0400	0.0024	0.0610	0.08	2000	36.5
270 × 270	0.0016	0.0400	0.0021	0.0540	0.08	2000	33.0
300 × 300	0.0016	0.0400	0.0018	0.0446	0.08	2000	27.8
325 × 325	0.0014	0.0356	0.0017	0.0432	0.07	2000	30.1
400 × 400	0.0011	0.0300	0.0015	0.0330	0.06	1600	27.4
Note	The mesh nomber and mesh width and length could be made as request .

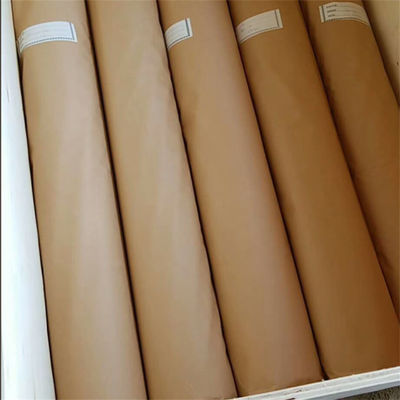

Packing of the Stainless Steel Wire Netting :

The Stainless steel wire netting packing in rolls ,
it was warpped on the paper tube , then packed with water proof paper, at last put into wooden case
It could also packed in box for the fine mesh ..

80 Mesh Stainless Steel Wire Netting Plain Weave For Filter 1

Application of the Stainless Steel Wire Netting :

‌Industrial filtration systems (liquid/gas separation)
Architectural facades and protective screens
Food processing equipment (grade-specific filtration)
Chemical industry components (corrosion-resistant barriers)

Advantage of the Stainless Steel Wire Netting

Features: magnetic,acid resistance,alkali resistance,temperature resistance

Customized: according to your request to design the hole size, wire diameter, width and length. and we also support deep procession, for cutting into different shape filter sheet and make different cap, tube, disc and so on.

Note: Available in rolls, sheets, or fabricated components (cylinders, discs). Laser-cut edges or reinforced frames as request.
