Home Products

Wire Mesh Filter

Alloy Mesh Pleated Filter Disc Micron 10mm 12mm 14mm 20mm 30mm 40mm

Name: Alloy Mesh Pleated Filter Disc Micron 10mm 12mm 14mm 20mm 30mm 40mm
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-Pleated Filter Disc
Availability: InStock

Model Number:	HH-Pleated Filter Disc
MOQ:	100 pcs Pleated Filter Disc
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	100000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Pleated Filter Disc

Housing:

304 & 316 Stainless Steel, Copper

Sizes:

3/8" - 5"

Micron Rating:

1-200 µm

Midea Material:

Weave Wire Mesh

Standard Thickness:

3.2mm

Packaging Details:

wooden case, could be customized

Supply Ability:

100000 pcs per 30 days

Highlight:

Alloy Mesh Pleated Filter Disc

weave Pleated Filter Disc

304 & 316 Pleated Filter Disc

Product Description

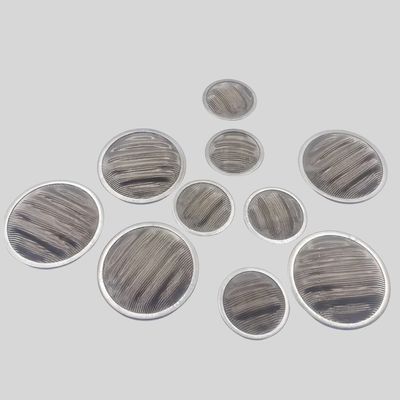

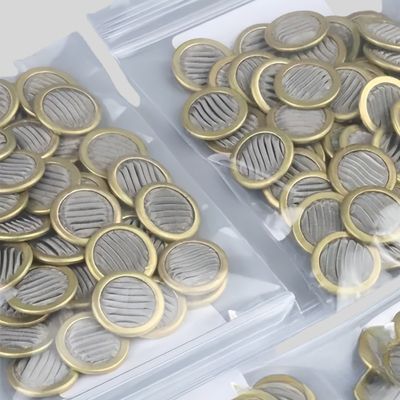

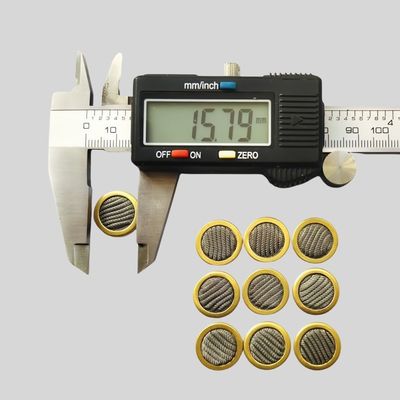

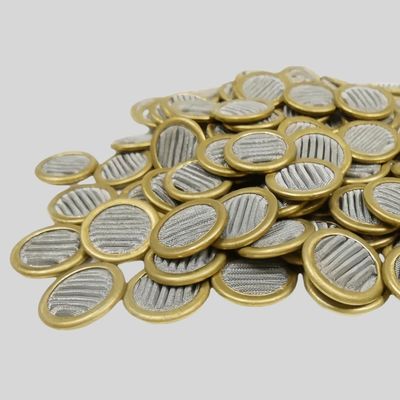

Micron 10mm 12mm 14mm 20mm 30mm 40mm Edge Packed Round Shape SS Wire Mesh Filter Disc

Quick details of Pleated Filter Disc

Housing: 304 & 316 Stainless Steel, Copper
Sizes: 3/8" - 5" (custom Discs Sizes Available)
Micron Rating: 1-200 µm
Collapse Pressure: 50 PSID
huihao can also provide custom design and manufacture of Stainless Steel Pleated Filter Discs according to your specific application.

Applications

Electrical Cooling Systems
Gas Turbine Engines
Fuels & Lubricants
Fuel & Air Injection
Test Stands
Vacuum Inlets to Equipment
Aircraft Engine Fuel & Air Systems

Description of Pleated Filter Disc

Pleated Filter Disc, also known as an extended area filter disc, is made of stainless steel mesh or other alloy mesh, usually made of stainless steel 304, 316 material, with a solid layer or multiple layers, which is ideal for accurate filtration. It can also be customized to meet the application of various types of pleated filter discs to increase the surface area of the filter.

Standard specification of Pleated Filter Disc

Item			Dimensions		Effective Area in2
	A ± .005"	B ± .015"	C ± .015"	D ± .015"
1	0.375	0.300	0.100	0.015	0.220
2	0.5	0.420	0.150	0.020	0.660
3	0.625	0.490	0.170	0.030	1.000
4	0.75	0.615	0.170	0.030	1.600
5	1	0.875	0.170	0.030	3.300
6	1.375	1.250	0.170	0.030	6.600
Note: A – O.D. (Outer Diameter), B – I.D. (Inner Diameter), C – Overall Thickness D – Boarder Thickness

More model Pleated Filter Disc

Servo valve D661, A67999-100 of G631
Pilot valve D061-8 of A67999-200
Pilot valve D630 A67999-065, A67999-100 of servo valve D631
Pilot valve D661 A67999-200
