Structured Packing – High Flow Rate & High Separation Efficiency

Quick details of Mesh Structured Packing

• Surface areas: 250 m2/m3, 500 m2/m3, 750 mm2/m3, 1000 m2/m3, 1200 m2/m3.
• Material: AISI304, AISI304L, AISI316, AISI316L, carbon steel, duplex stainless steel, Monel, Titanium alloy and others
• mould: 250X, 500X, 700Y

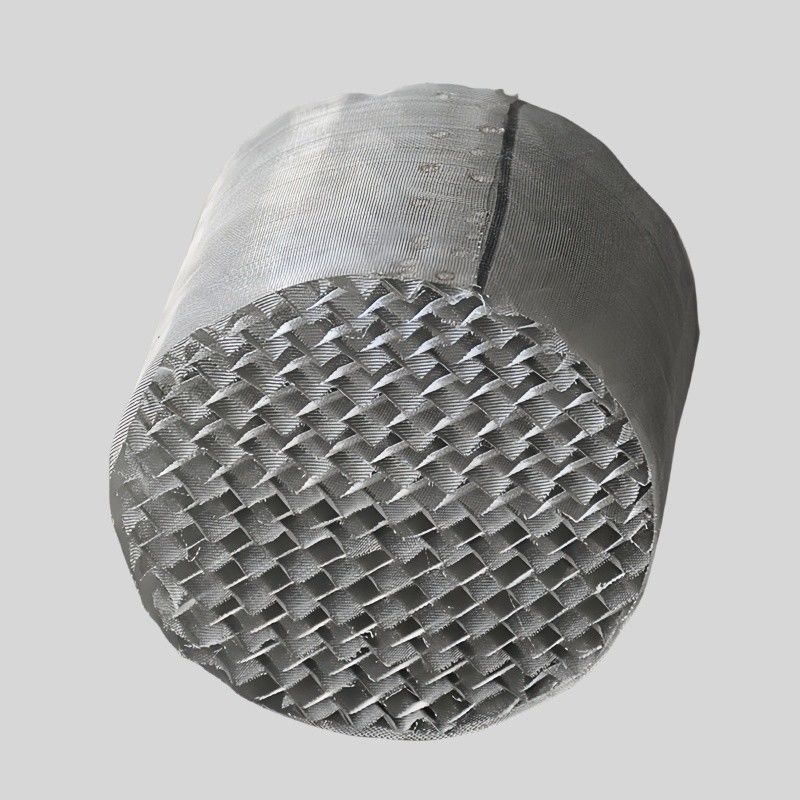

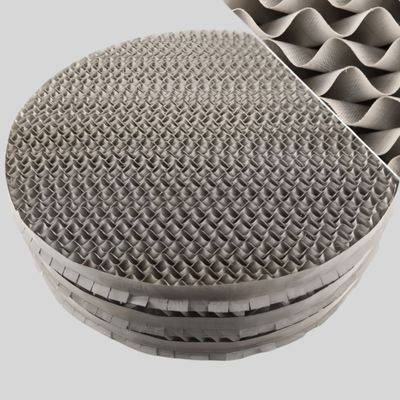

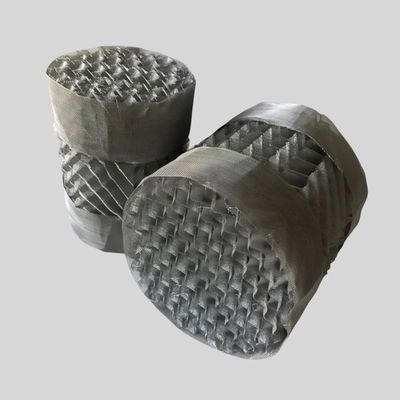

Description of Mesh Structured Packing


Mesh Structured Packing can be made of various metal materials, such as low carbon steel, stainless steel, duplex stainless steel, Monel, Titanium alloy and others. Structured packing is a kind of a geometrically shaped and corrugated packing

According to the corrugated angle, it is divided into X type and Y type. X type stands for the 30° angle and the Y type stands for the 45° angle. X type structured packing has low pressure dorp and Y type structured packing has better mass transfer property.


Popular Specifications of Metal Woven Structured Packing

Features of Mesh Structured Packing

• Low pressure drop
• Large contact area
• High separation and filtering efficiency
• High capacity
• Reduced liquid hold-up performance
• Corrosion and high temperature resistance

Application of Mesh Structured Packing

• Metal wire gauze packing is used for Fine chemical, flavors factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
• 250(AX) Precision rectification for high productive capacity and less theoretical plate number.
• 500(BX) Vacuum rectification for thermo sensitive system and hard separation system, especially suitable for rectification with pressure lower than 7KPa .
• 700(CY) Separation of isotopic compound and isomeric compound.
• Wire gauze structured packing is not suitable for fouling services and strongly corrosive media.
