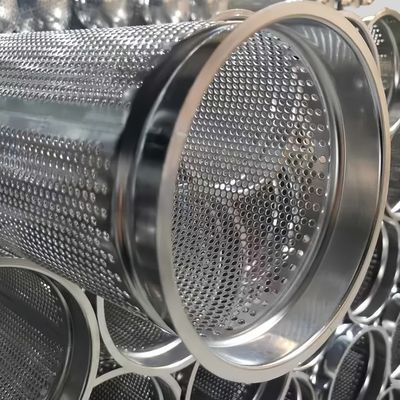

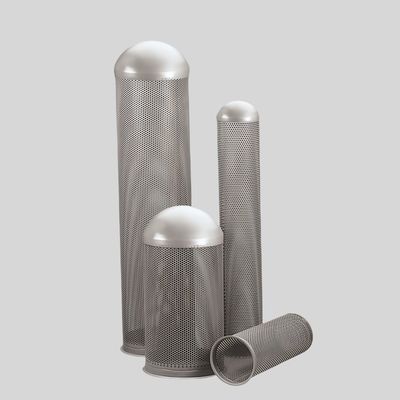

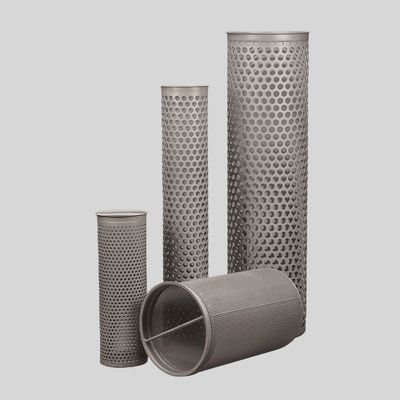

Metal Mesh Filter Bag Support Baskets 9/64"

Name

Metal Mesh Filter Bag Support Baskets 9/64"

Model Number: HH-filter leaf
MOQ: 10 pcs filter leaf
Price: contact with us
Payment Terms: L/C, T/T, Western Union, Alipay
Supply Ability: 1000 pcs per 30 days
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Name:
Filter Bag Support Baskets
Material:
Ss Perforated Metal Mesh
Standard Hole Open:
9/64"
Filter Area:
0.05 M2 To 0.5 M2
Filter Rating:
5–5000 μm
Weight:
0.6kg-1.3kgs
Surface Treatment:
Electrolytic Polishing
Basket Diameter:
109mm And 179mm
Packaging Details:
wooden case, could be customized
Supply Ability:
1000 pcs per 30 days
Highlight:

Metal Mesh Filter Bag

,

Metal Mesh Filter 9/64"

,

metal mesh filter screen 9/64"

Product Description



Metal Mesh Filter Bag Support Baskets for Bag Filter Housings



Quick details of Metal Mesh Filter Bag Support Baskets



  • Material: perforated metal mesh
  • Standard design perforated opening diameter is 9/64", with a high opening ratio and suitable for filter bags of all standard sizes.
  • Available in a variety of standard sizes
  • Great corrosion and chemical resistance, easy to clean
  • Filter area: 0.05 m2 to 0.5 m2
  • Filter rating: 5–5000 μm



Description of Metal Mesh Filter Bag Support Baskets



Filter bag support basket is a key element of bag filters. In the filtration process, filter bag meets industrial filtration precision requirements, however, it has a low impact strength and is easily damaged. Filter bag support basket is provided to support and protect the filter bag. It not only greatly reduces the use cycle of replacing the filter bag, but also plays the role of coarse filter.



Specification of Metal Mesh Filter Bag Support Baskets



Specification of Filer Bag Support Baskets
Item No. Support Basket for 1# Filter Bags Support Basket for 2# Filter Bags Support Basket for 3# Filter Bags Support Basket for 4# Filter Bags
Material 304/316
Weight (kg) 1.3 2.5 0.3 0.6
Height (mm) 345 730 185 335
Diameter (mm) 178 mm 109 mm
Size Hole diameter 3.5 mm, center spacing 4.7 mm
Surface treatment Electrolytic polishing



Applications of Metal Mesh Filter Bag Support Baskets

  • Filtration for discharge water and process water

  • Filtration for cooling liquid or cutting oil

  • Lubricating oil filtration

  • Filtration for oil paint, resin, and solvent

  • Bulk chemical filtration

  • Filtration for components cleaning system

  • Adhesive filtration
