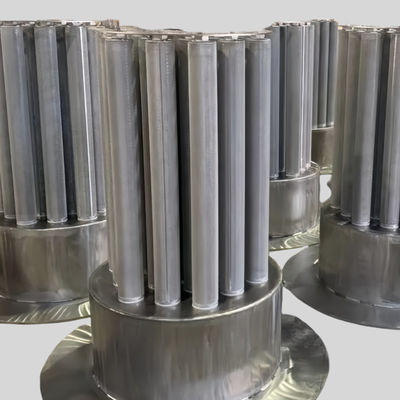

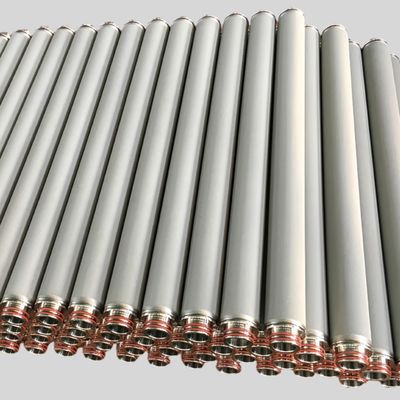

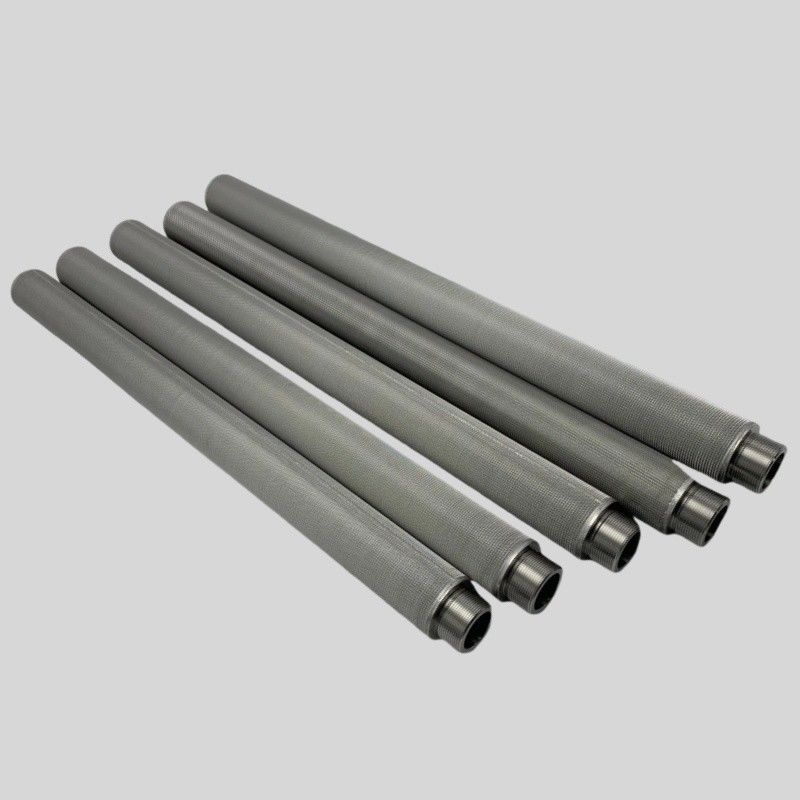

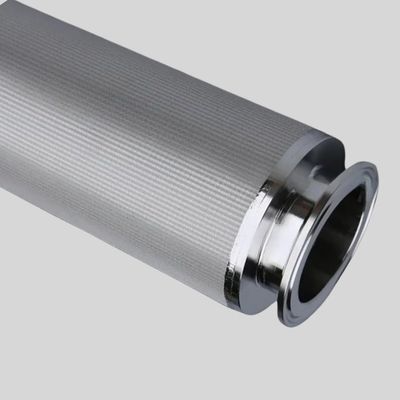

Sintered Mesh Filter Cartridge

Model Number:	HH-Filter Cartridge
MOQ:	10 pcs Sintered Mesh Filter Cartridge
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Sintered Mesh Filter Cartridge

Length:

10", 20", 30", 40" Or Customized

Filter Rating:

2-200 μm

Diameter:

65 Mm, 70 Mm Or Customized

Connection Type:

M42, M30, M32, M20, 215, DOE, 226, 222 Or Customized

Seal Material:

Silicon, NBR, EPDM, VITON

Operating Temperature:

-200 °C To 650 °C

Others:

Other Diameters And Lengths Are Available On Request

Packaging Details:

wooden case, could be customized

Supply Ability:

1000 pcs per 30 days

Highlight:

customized wire mesh filter

customized pleated filter disc

200 μm wire mesh filter

Product Description

Sintered mesh filter cartridges are woven metal meshes that are formed through vacuum sintering, where each interconnection point between wire strands undergoes sintering treatment.

Quick details of Sintered Mesh Filter Cartridge

Filer rating:2-200 μm
Length:10", 20", 30", 40" or customized
Diameter:65 mm, 70 mm or customized
Connection type:M42, M30, M32, M20, 215, DOE, 226, 222 or customized
Seal material:Silicon, NBR, EPDM, VITON
Operating temperature:-200 °C to 650 °C.
Permeability:0.02–20 L/cm2·min·pa
Operating pressure:1 bar

Description of Sintered Mesh Filter Cartridge

Sintered mesh filter cartridge generally adopts standard 5-layer sintered wire mesh laminate as the filter medium.

The surface layer is plain square weave wire cloth and this layer is the protective layer for the second filtration control layer.
The filtration control layer determines the filtration rating. It can be square weave, Dutch weave, twill weave or other types of wire cloth.
The third layer is usually same with the first layer, but often functions as dispersion and transition layer.
The fourth and fifth layers are Dutch weave wire mesh, but with 90-degree variation. These two reinforcing layers give the sintered wire mesh support and strength.

Normal diameter	60mm (2.4"), 70mm(2.8"), 80mm(3.1"),100mm(3.9")
Normal length	125mm (5"), 250mm (10"), 498mm (20"), 745mm (30"), 1012mm (40")
Temperature limit with Buna-N gaskets	121℃ (250°F), other gasket materials to 232°C (450°F). From -269℃( -452°F ) to1000℃ ( 1832°F ) alloy limiting.
Normal flow direction	15bar (218psi)
Reverse flow direction	3bar (44psi)
Micron size range	1-300μm
Different media options	From 2-layer to 7-layer mesh configurations, standard options include metal woven mesh and non-woven fiber felt.
Materials of construction	SS304/316/316L, also Alloy ( Hastalloy276, Inconel 600, Monel, Titanium, Duplex and so on).
customized	Other diameters and lengths are available on request

Connection Type

Sintered Mesh Filter Cartridge 0

Application Of sintered mesh filter cartridge

Sintered mesh filter cartridges are suitable for filtering high temperature and acid-base environments and are widely used in the following industries.
