Knitted Mesh Demister Pad Filter Density 150kg/M3

Name: Knitted Mesh Demister Pad Filter Density 150kg/M3
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-pad
Availability: InStock

Model Number:	HH-pad
MOQ:	5 pcs Sintered Disc Filter
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Demister Pad Filter

Material:

SS AND MONEL

Filter Midea:

Knitted Wire Mesh

Demister Pads Density:

150kg/m3

Free Volume:

98.3%

Surface Area:

267.5M2

Structure:

Grids, Frame Work

Pad Shape:

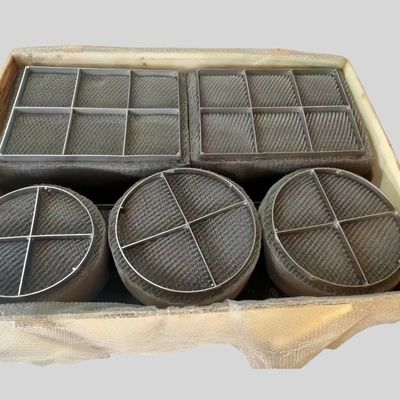

In Square Or Round Pad/panel Filter Forms

Packaging Details:

wooden case, could be customized

Supply Ability:

1000 pcs per 30 days

Highlight:

Knitted Mesh Demister Pad

Demister Pad Filter

267.5M2 Demister Pad

Product Description

Demister Pads of Monel and Stainless Steel Knitted Mesh

Quick details of Knitted Mesh Demister Pad Filter

Wire Material: Monel A400 and (or option) SS 316L
Grids: Material DUPLEX ASTM A276 UNS S31803 and (or option) SS 316L
demister pads density: 150kg/m3, free volume: 98.3%, surface area: 267.5m2, wire diameter: 0.254mm
Pad material: MONEL A400(0.0254) or SS316L

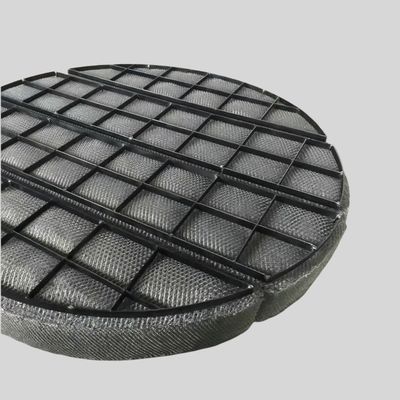

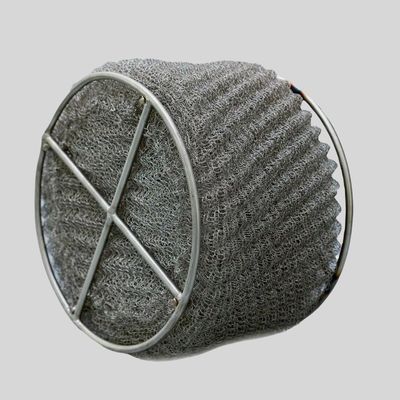

Structure: Grids, frame work: round bar, dia. 6mm, the top and bottom grids are tied together with spacer rod 6mm round bar.
Popular Sizes :1237 X 520 X 120mm, 1268 X 520 X 120mm,1222 X 260 X 120mm, 1268 X 308.5 X 120mm,1238 X 260 X 100mm

Description of Knitted Mesh Demister Pad Filter

Demister Filter Pads processed from Knit Mesh in Stainless Steel 304, 316L and Nickel Alloys Monel, Inconel, etc. Applied to a wide range of the vessel models and various housing dimensions.

Demister Pad filter Type Mist Eliminators can be produced in varied degrees of density with 99.99% Efficiency. The filter pads are essentially porous mesh blankets designed and constructed to efficiently separate mist particles.

Popular Vessel Diameter Applied: Vessel diameter 2500 I.D, 3100 I.D, 36 inch ID, etc.

Pad specification of Knitted Mesh Demister Pad Filter

Demister Filter, also known as mist eliminator filter or dehumidifier, is an important component in the gas-liquid separation industrial process. Used to intercept tiny droplets from gas flow media and to filter gases.

Type		Wire diameter (mm)	Specific Surface Area (m2/m3)	Bulk Density (kg/m3)	Voidage
SP	Flat Wire	0.1x 0.4	475	168	0.9788
	Round Wire	0.23	320
DP	Flat Wire	0.1x 0.3	626	186	0.9765
	Round Wire	0.19	484
HR	Flat Wire	0.1x 0.4	313	134	0.9875
	Round Wire	0.23	217
HP	Round Wire	0.08 - 0.22	403	128	0.9839

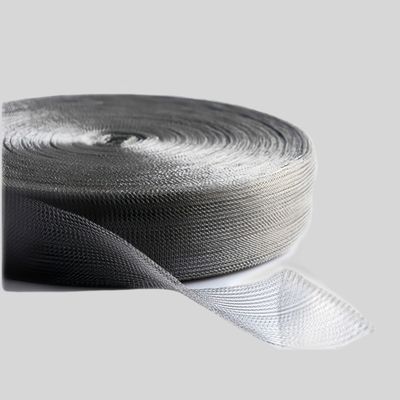

Pad Media- knitted mesh specification

Specification of Knitted mesh
Material	stainless steel wire 304 304L 316 316 L galvanized wire brass wire copper wire titanium wire alloy wire nickel wire nylon wire PE wire fiberglass wire etc
Wire Diameter	Round wire	0.08-0.55mm
Wire Diameter	Flat wire	0.10.4mm0.10.3mm0.2*0.4mm
Hole Size	4mm×3mm 5mm×6mm 2mmx4mm 4mmx5mm etc.
Width	40mm 80mm 100mm 150mm 200mm 300mm 400mm 500 mm 600mm etc.
Length	30-200m
Wire Number	Single wire double wires several wires.
Mesh type	Standard type	40-100 60-150 105-300 140-400
	Highly efficiency type	60-100 80-100 80-150 90-150 150-300 200-400
	Damping type	30-50 48-50 30-60 30-80 50-120

Knitted Mesh Type	Typical wire diameter(mm)	Range of natural width(mm)	Typical number of stitches per cm on length	Typical number of stitches per cm across lay flat
Standard Mesh	0.2-0.35	30-1000	1.6	1.9
Coarse Mesh	0.2-0.35	30-550	1.6	0.74
Super-Coarse Mesh	0.4-0.6	330-550	0.5	0.5
