Home Products

Wire Mesh Filter

Stainless Steel Mesh Filter Bag 5-1000 micron

Name: Stainless Steel Mesh Filter Bag 5-1000 micron
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-Filter Bag
Availability: InStock

Model Number:	HH-Filter Bag
MOQ:	100 pcs Filter Bag
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	100000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Filter Bag

Material:

Stainless Steel 304, 316

Standard Size:

7”x 16.5”, 7”x 32”

Filtration Accuracy:

5-1000 Micron

Temperature Resistance:

260°C-consistent Working, 400°C-Max.

Construction:

Filter Media Layer, Flange/thread; Optional Extra Support Frame

Joining Craftsmanship:

Welding, Sewing.

Application:

Liquid Filtration

Packaging Details:

wooden case, could be customized

Supply Ability:

100000 pcs per 30 days

Highlight:

Stainless Steel Mesh Filter Bag

Wire Mesh Filter Bag

metal mesh filters 1000 micron

Product Description

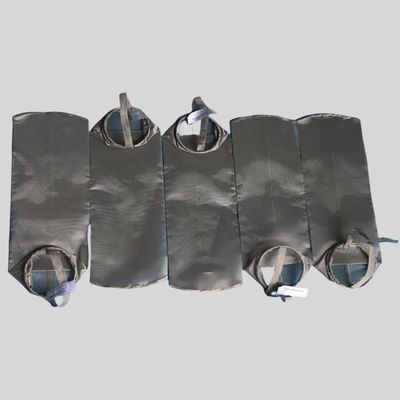

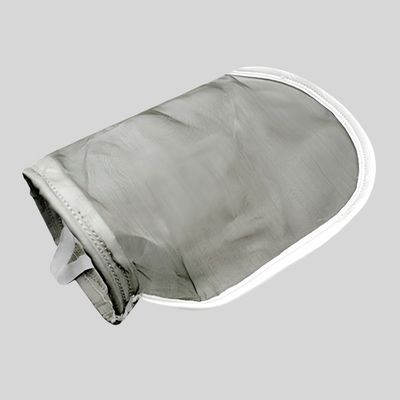

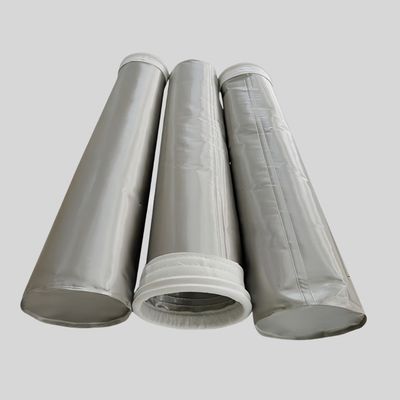

Stainless Steel Mesh Filter Bags

Quick details of Stainless Steel Mesh Filter Bag

High temperature resistance up to 400˚C.
High tensile strength. Limited rounds of backwash is acceptable.
35 ~ 800 micron range, absolute rating.
SS304 steel snap-fit rings.
Broad chemical compatibilities.
Fiber migration & extractable free media treatment.
Change-out pressure differential 0.15 MPa, Max. 0.20 MPa.

Description of Stainless Steel Mesh Filter Bag

Stainless steel filter bags are made of stainless steel woven cloth. Compared with non-woven filter bags, stainless steel filter bags have a longer service life and better corrosion resistance.

Place the filter bag into the support basket. Fluid flows into the filter from the inlet and flows out of the outlet after in-house filtration. Impurities are trapped in the filter bag. Filter bags need to be replaced after a period of use.

Specification of Stainless Steel Mesh Filter Bag


Size Code	Diameter	Bag Length	Flow Rate	Filter Surface Area	Inflated Volume
01	7" (177.8 mm)	17" (431.8 mm)	20 m3/h	0.25 m2	8.0 L
02	7" (177.8 mm)	32" (812.8 mm)	40 m3/h	0.50 m2	17.0 L
03	4" (101.6 mm)	8" (203.2 mm)	6 m3/h	0.09 m2	1.30 L
04	4" (101.6 mm)	14" (355.0 mm)	12 m3/h	0.16 m2	2.50 L
05	4" (101.6 mm)	20" (508.0 mm)	18 m3/h	0.20 m2	3.80 L

Mesh To Micron Conversion
Mesh	Micron
100	149
120	125
150	100
180	82

Stainless Steel Mesh filter Bags Specifications
Mesh Material	304 Stainless Steel
Ring Material
Strap Material
Maximum Working Temperature	800°C (1472°F)
Maximum Holding Weight/Force	6 kg/59N (13.2 lb)
