Home Products

Wire Mesh Filter

Metal Mesh Hot Gas Cleaning Filter

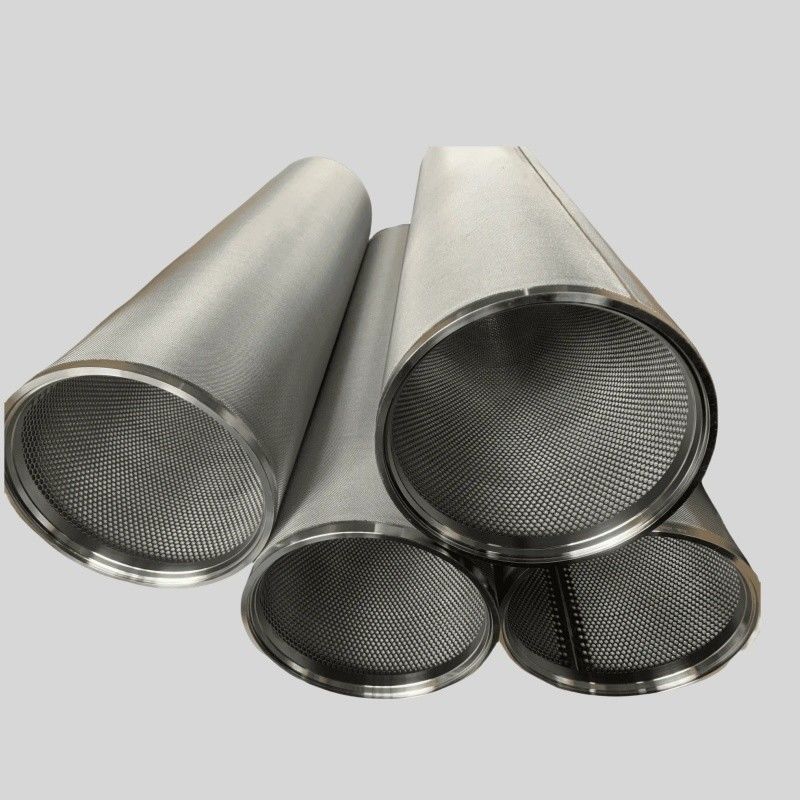

Name: Metal Mesh Hot Gas Cleaning Filter
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-Gas Cleaning Filter
Availability: InStock

Model Number:	HH-Gas Cleaning Filter
MOQ:	20 pcs Gas Cleaning Filter
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Gas Cleaning Filter

Working Temperature:

450 °C – 650 °C

Wall Thickness:

1mm -2mm

Dust Content After Filtration:

≤ 5 Mg/Nm3

Retained Dust Particle Size:

≤ 0.1 μm

Air Permeability:

100 M3/(m2·h)

Material:

SS316L, SS316S, INCONEL600 AND HASTEELLOY X

Customized:

Customizable Design Options Were Available

Packaging Details:

wooden case, could be customized

Supply Ability:

1000 pcs per 30 days

Highlight:

ss316l wire mesh filter

ss316l pleated filter disc

Product Description

Strengthened Hot Gas Cleaning Filter with Good Thermal Shock Resistance

Quick details of hot Gas Cleaning Filter

Interception efficiency exceeds 99.99% for particles as small as 1μm
Withstand high temperatures ranging: from 450 °C to 650 °C.
A fully welded structure capable of withstanding high-pressure differentials.
Customizable design options were available.
Material: SS316L, SS316S, INCONEL600 AND HASTEELLOY X

Material	Oxidizing	Reducing or Neutral
SS 316L	400℃(750℉)	538℃(1000℉)
SS 310S	600℃(1100℉)	816℃(1500℉)
Inconel 600	600℃(1100℉)	816℃(1500℉)
Hastelloy X	789℃(1450℉)	926℃(1700℉)

Description of hot Gas Cleaning Filter

The filtering layer of Strengthened Hot Gas Cleaning Filters is made of a composite medium consisting of micrometer-level metal powder and multi-layered metal wire mesh.

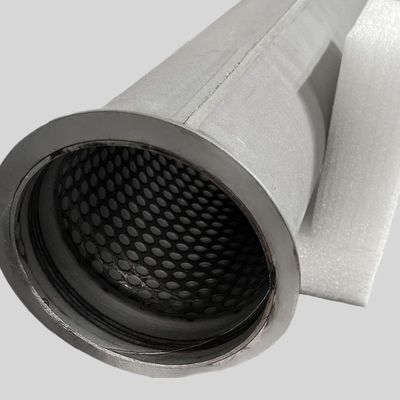

The standard structure of Standard Hot Gas Cleaning Filters uses a core support layer of perforated porous tubes to meet the strength requirements. One end is closed and the other is open. A flange is welded at the open end to facilitate installation and fixation and ensure the sealing of high-temperature synthetic gas.

Specification of hot Gas Cleaning Filter

Metal Mesh Hot Gas Cleaning Filter 0

Popular Specification of Strengthened Hot Gas Cleaning Filters
Model	Installation Diameter (mm)	Diameter D (mm)	Diameter d (mm)	Total Length L (mm)	Length l (mm)	Filter Area (m2)
HH-T-60-150	60	90	56	1500	1466	0.28
HH-T-60-175	60	90	56	1750	1716	0.33
HH-T-60-200	60	90	56	2000	1966	0.38
HH-T-60-225	60	90	56	2250	2216	0.42
HH-T-60-250	60	90	56	2500	2466	0.47
HH-T-60-300	60	90	56	3000	2966	0.57

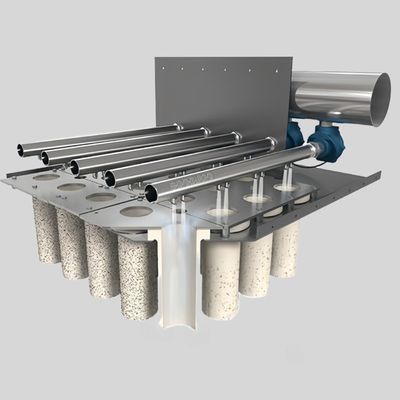

Installation diameter refers to the diameter for filter installed on the installation plate. Other specifications are available upon request.

Application of hot Gas Cleaning Filter

Catalyst Recovery
Photovoltaic Cell Production
Tire Pyrolysis
Pyrolysis gas
Reducing atmosphere
Calcination
Chemical Production
