Economical Multi Cartridge Filter Housing Liquid Filtration Stainless Steel Cartridge Filter Housing for Electronics

Quick details of Multi Cartridge Filter

• Optional cartridge:PP pleated cartridges, ceramic cartridges and stainless steel wire cartridges
• Rated value:0.05–200 μm
• Cartridge size (length):10", 20", 30", 40"
• Number of cartridges:1–200
• Cartridge end cap:DOE, SOE (Fin/ 222, Fin/ 226, Flat/ 222, Flat/ 226)
• Housing material:SS304, SS316L, carbon steel
• Surface treatment:Sandblasting, mechanical polishing, electrolytic polishing
• Inlet/outlet:BSP, Tri-cover, ANST flange
• Applicable viscosity (cp):1–500
• Design pressure:0.6 MPa, 1.0 Mpa
• Operating temperature:40 °F to 140 °F
• Cover connection:V-band, swing-bolt.

Description of Multi Cartridge Filter

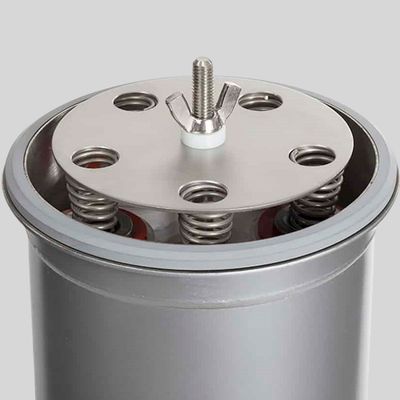

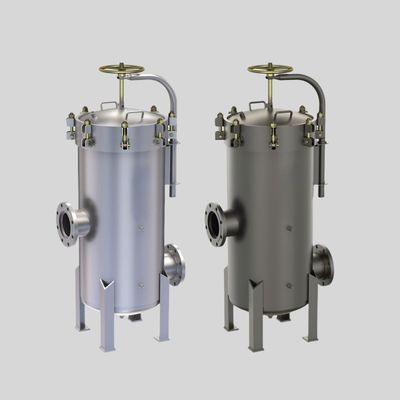

Stainless Steel Multi Cartridge Filter Housing is manufactured by high quality SS304 or SS316L stainless steel and workmanship. SS multi filter housing accommodate different end cap styles of filter cartridges in either DOE or SOE, providing economic and efficient alternatives of filtration processes.

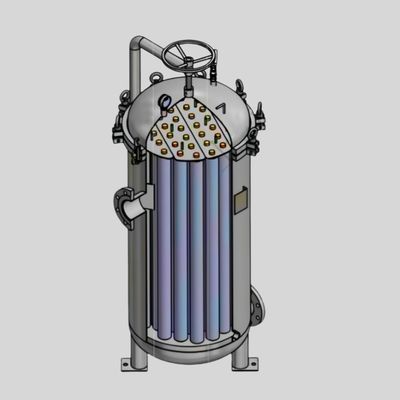

The unfiltered liquid flows into the filter from the inlet, flows through the cartridge from outside to inside and becomes clean. Impurities are trapped in the deep layer or on the surface of the cartridge and clean fluid flows out from the outlet.

When the differential pressure upstream and downstream is more than 0.2MPa and the flow rate of the liquid is 30% less than before, it is time to change the filter cartridge to prevent system clogging.

Specification of Multi Cartridge Filter

Application of Multi Cartridge Filter

Operation Data for Stainless Steel Multi Cartridge Filter Housing

Cartridge filters are suitable for liquid precision filtering to remove tiny impurities and bacterium, and are widely used in the following industries.

• For soft drink production
• For municipal water filtration
• For drinking water filtration
