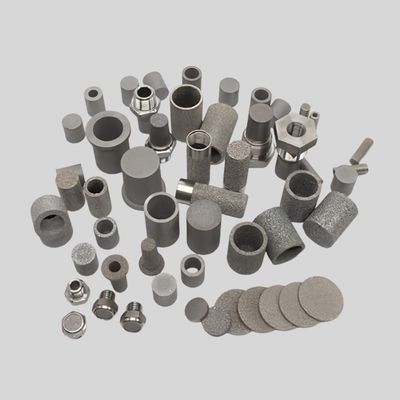

Sintered sintered titanium filter 30-200mm Diameter Round Disc Sheet Tube

Sintered sintered titanium filter 30-200mm Diameter Round Disc Sheet Tube

Sintered sintered titanium filter 30-200mm Diameter Round Disc Sheet Tube

Model Number: HH-power filter
MOQ: 10 pcs Sintered titanium power filter
Price: contact with us
Payment Terms: L/C, T/T, Western Union, Alipay
Supply Ability: 100000 pcs per 30 days
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Name:
Sintered Titanium Power Filter
Material:
High-purity Industrial-grade Titanium Powder (99.4%)
Removal Ratings:
0.45μm，1.0μm，3.0μm，5.0μm，10μm，20μm，30μm，50μm，80μm，100μm，120μm
Working Temperature:
500-600℃ In The Air ( Usually 280℃)
Diameter:
30-200mm
Length:
100 - 1000mm Im Common
Shape:
Round Disc, Sheet, Tube
Surface Area:
10-40cm²/cm³
Packaging Details:
wooden case, could be customized
Supply Ability:
100000 pcs per 30 days
Highlight:

0.45μm sintered titanium filter

,

Sintered titanium power filter

,

Round Disc sintered titanium filter

Product Description



Sintered titanium power filter



Quick details of Sintered titanium power filter



  • Raw material: pure titanium powder and titanium alloy
  • Purity: more than 99.4%
  • Filtration accuracy:0.22-100μm
  • Working pressure:0.5-1.5MPa
  • Working temperature:500-600℃ in the air ( usually 280℃)
  • Porosity:35-50%
  • Diameter: 30-200mm
  • Length:100-1000mm



Description of Sintered titanium power filter



Titanium Filter is a filtration device made from titanium or titanium alloy powers. One of its notable variations is the Sintered Metal Powder Filter, where titanium particles are fused together under high temperatures to create a porous structure.



  • High-purity titanium construction
  • Anti-corrosive; high temperature and oxidation resistant
  • Uniform structure with narrow pore size distribution and high filtration efficiency
  • No free-falling particles
  • High porosity, low filtration resistance and high filtration efficiency
  • Good compatibility with human tissue and blood due to its non-toxic and non-magnetic nature



Specification of Different shapes Sintered titanium power filter



Production ( Diameter ) Length ( Diameter ) Width Thickness Customized

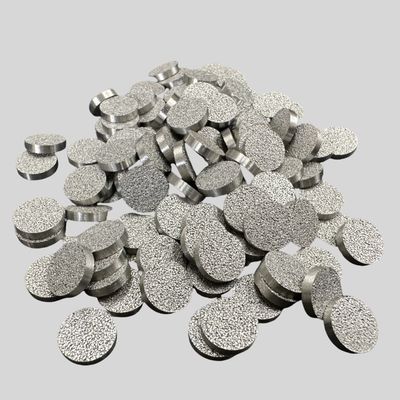

Sintered Discs φ5 - φ400mm φ5 - φ400mm 1-10mm Yes
Sintered Sheets 1000mm 380mm 1-10mm Yes

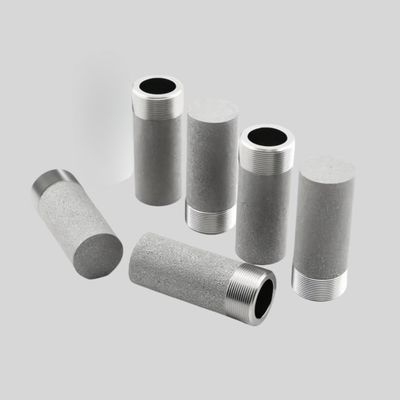

Sintered Tubes 40-1200mm φ20 - φ200mm 1-3mm Yes

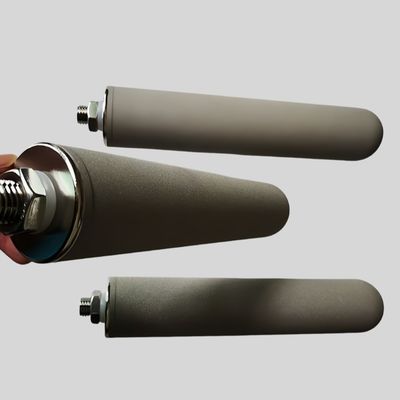

Sintered Cartridge 40-1200mm φ20 - φ200mm 1-3mm Yes



Standard technical data of titanium power filter



Filter Precision Maximum aperture Breathability Thickness Pressure Resistance
(μm) (μm) M³/h.m².kPa mm Mpa/cm³
0.2 2.5 1.5 3.0 3.0
0.5 4.0 3.0 3.0 3.0
1.0 5.0 6.0 3.0 2.5
3.0 10.0 12.0 3.0 2.5
6.0 15.0 42.0 3.0 2.0
10.0 30.0 90.0 3.0 2.0
20.0 50.0 200.0 3.0 1.5
35.0 100.0 450.0 3.0 1.5
60.0 150.0 650.0 3.0 1.0
80.0 180.0 800.0 3.0 1.0



Some pars Technical data for Application



Oxygen Utilization Rate ≥20%
Oxygen Filling Capacity ≥0.13KgO2/h
Theoretical Dynamic Efficiency ≥5.0Kg/Kw.h
Resistance Loss ≤4000Pa
Service Area DN100mm ≥0.15m2
DN150mm ≥0.35m2
DN180mm ≥0.50m2
Standard Ventilation (3Kg pressure at 28°C) DN100mm 10-16m3/h
DN150mm 25-30m3/h
DN180mm 35-40m3/h
Aeration Depth ≥4m
Porosity 35-50%
Design Flow Rate Of Air Pipe 10-15m/s for main pipe and 5m/s for branch pipe.
