Horizontal Pressure Leaf Filter 5ply SS Wire Mesh

Name: Horizontal Pressure Leaf Filter 5ply SS Wire Mesh
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-Horizontal Pressure Leaf Filter
Availability: InStock

Model Number:	HH-Horizontal Pressure Leaf Filter
MOQ:	1 pcs Horizontal Pressure Leaf Filter
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	100000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Horizontal Pressure Leaf Filter

Tank Diameter:

900-2000mm

Working Temperature:

150℃

Filter Area:

5-90 ㎡

Vessel Vol. L:

1.5-15.5

Footprint:

6200x2000-12000x3400

No. Of Leaves:

20PCS -36PCS

Leaf:

5-ply Of SS Wire Mesh

Packaging Details:

wooden case, could be customized

Supply Ability:

100000 pcs per 30 days

Highlight:

5 ply horizontal pressure leaf filter

SS wire mesh pressure leaf filter

horizontal leaf filter 5ply

Product Description

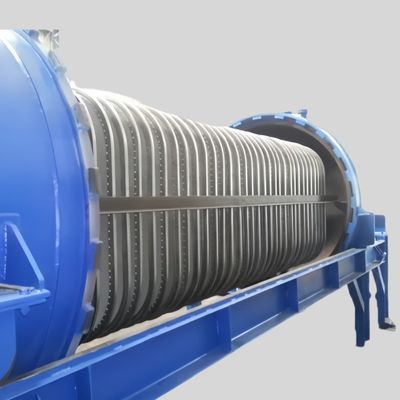

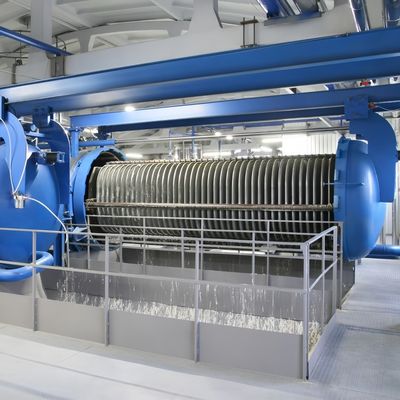

High Efficiency Horizontal Pressure Leaf Filter

Description of Horizontal Pressure Leaf Filter

The horizontal pressure leaf filter is an enclosed filtration system and can be fully automated. This filter produces a high filtrate clarity after the clarification run and is also suitable for all kinds of filter aids. The regeneration time between the filtration cycles is short. Horizontal pressure leaf filters can also be delivered as tandem units to save floor space. The pressure leaf filter itself has no rotating parts, keeping maintenance to a minimum. These advantages result in an economical filtration solution.

No filter cloth is required. Filter leaves are made of 5 layers of stainless steel wire screen and enjoy a long service life and a low maintenance cost;
Movement of bundle or shell by hydraulic power pack makes the filter easy to be observed and discharge filter cakes;
A variety of filter aids can be added and the filter area is up to 200 m2;
Automatic filter cake discharge. The filter can operate in both dry and wet cake discharge modes.
Fully closed structure and fully automated operation reduce environmental pollution and labor costs;
Suitable for batch processing applications requiring high flow rates with small solids removal.

Specification of Horizontal Pressure Leaf Filters

filtering area m2	no. of leaves	leaf spacing mm	diameter mm	vessel vol. L	footprint mm
15	20	80	900	1.5	6200X2000
20	26	80	900	1.8	6800X2000
25	21	90	1200	2.7	6400X2300
30	25	90	1200	3.4	6800X2300
35	20	100	1400	4.5	7100X2500
40	19	100	1500	4.8	7000X2600
45	18	110	1600	6.4	7200X2800
50	20	110	1600	6.5	7400X2800
60	24	110	1600	6.8	7800X2800
70	22	110	1800	8.2	7600X3000
80	25	110	1800	8.7	8000X3000
90	28	110	1800	9.2	8400X3000
100	31	110	1800	9.7	9200X3000
120	28	120	2000	12.5	9800X3400
140	36	120	2000	15.5	12000X3400
160	36	120	2000	15.5	12000X3400
180	36	120	2000	15.5	12000X3400
200	36	120	2000	15.5	12000X3400

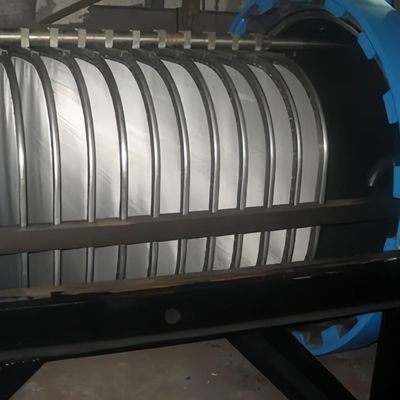

Filter leaf construction

Each leaf is made of 5-ply of SS wire mesh of different gauge wires. Two outer filtering mesh and three inners are only for support. Different outer filtering mesh is used for different filtration process. The 5-ply wire mesh are held together by a tubular frame and made leak proof by machine riveting. The quality of filtration and life of filter depends mainly on the quality of outer wire mesh and revetting

Application of Horizontal Pressure Leaf Filter

Food and Beverage Industry (edible oil, brine solution, gelatin, sugar, etc.)
Mineral Processing
Chemical Processing
Water and Wastewater treatment, De-fluoridation
Molten Sulphur Polishing
