Monel 400 Wire Mesh Cloth Weave Type Mesh

Name: Monel 400 Wire Mesh Cloth Weave Type Mesh
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SPECIAL
Availability: InStock

Model Number:	HH-SPECIAL
MOQ:	1 SQAURE METER
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Features:

Corrosion Resistance And Strength

Name:

Monel 400 Wire Mesh Cloth

Material:

Monel 400

Mesh Roll:

1x30m 2x30m 1.524x30m 0.914x30m Etc.

Mesh Count:

18-250

Technical:

Weave Type Mesh

Packaging Details:

ROLL+PLASTIC FILM

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

Monel 400 wire mesh cloth

wire mesh cloth 1x30m

wire mesh cloth 2x30m

Product Description

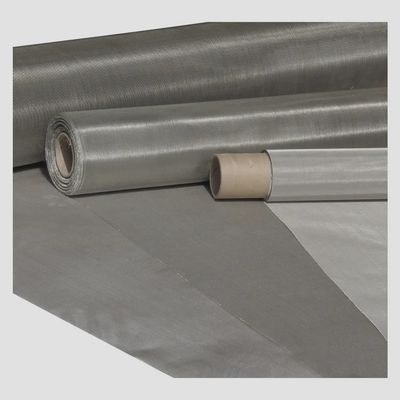

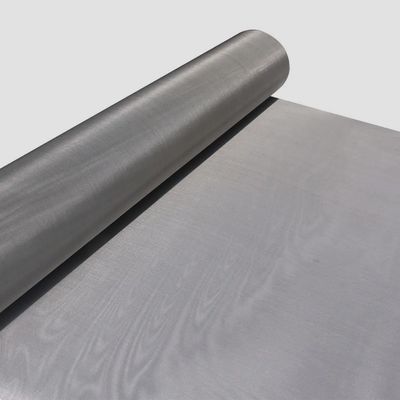

Monel 400 Wire Mesh Cloth

Quick details of Monel 400 Wire Mesh Cloth

Monel wire cloth is a kind of nickel based material woven wire mesh, containing minimum 63% Nickel and 28% Copper.

material of the monel wire cloth/mesh:monel 400 k500

mesh counts: 18-200mesh/inch

micron size:10-1000microns,also we can customize weaving.

Features of the monel wire mesh/cloth

Nickel Alloy 400- Copper alloy, containing minimum 63% Nickel and 28% Copper
Corrosion resistance and strength
Marine and chemical environments
"Exclusive"-Monel Insect Screen

Usage of the monel wire mesh/cltoh:

used for sea water evnironments
used for filters:like dintered filter disc, filter cylinder, filter disc etc
used in acid and alkali conditions

Common mesh size of monel wire mesh cloth

Monel wire mesh cloth specification
Mesh/Inch	Wire diameter (mm)	Aperture (mm)
18 mesh	0.35×0.35	1.06
20 mesh	0.30×0.30	0.97
30 mesh	0.25×0.25	0.60
40 mesh	0.21×0.21	0.43
50 mesh	0.19×0.19	0.32
60 mesh	0.15×0.15	0.27
70 mesh	0.14×0.14	0.22
80 mesh	0.12×0.12	0.20
100 mesh	0.10×0.10	0.154
120 mesh	0.08×0.08	0.132
150 mesh	0.065×0.065	0.104
200 mesh	0.050×0.050	0.077
250 mesh	0.040×0.040	0.062
