Home Products

Special Mesh

Niobium Zirconium Tungsten Wire Mesh For Heater Element

Name: Niobium Zirconium Tungsten Wire Mesh For Heater Element
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-TUNW
Availability: InStock

Model Number:	HH-TUNW
MOQ:	ONE SQUARE METER
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	30000 SQUARE METERS PER 25 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Material:

Tungsten Wire, W>99.9%

Mesh Size:

8 X 8 To 200 X 200 Mesh

Regular Mesh Size:

10mesh, 20mesh, 30mesh, 37mesh, 40mesh, 100mesh, 150mesh

Surface Finished:

Black Oxide Or Chemical Cleaned

Application:

Battery, Chemical, Mine, Hydrogen Making, Acid Making, Making Heating Element.

Max. Operating Temperature:

2370 °F

Packaging Details:

plastic wooden bags,wooden case/carton

Supply Ability:

30000 SQUARE METERS PER 25 DAYS

Highlight:

zirconium tungsten wire mesh

niobium nichrome wire mesh

niobium tungsten wire mesh

Product Description

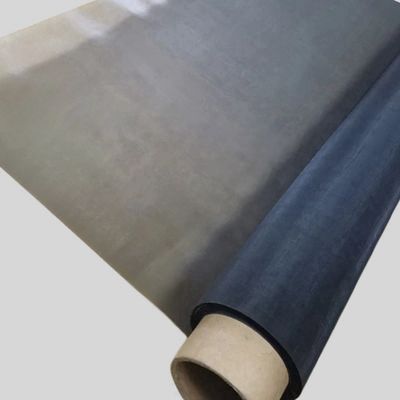

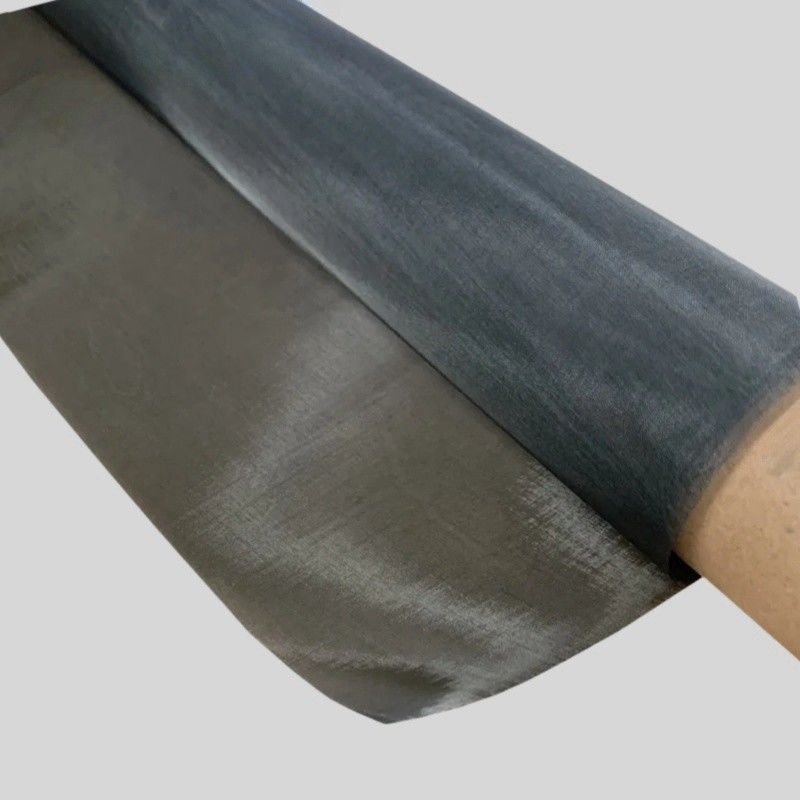

Niobium Zirconium Tungsten Wire Mesh For Heater Element

Quick details of Tungsten Wire Mesh

Material: Bright pure tungsten wire, tungsten content 99.95%, black pure tungsten wire

Purity: 99.5%

Single element:0.01

Total element: 0.05

Other physical & chemical properties

Density: 0.697 lbs/in3
Tensile strength: 330 Kpsi
Elongation: 1%
Melt point: 6170 °F
Max. Operating Temperature: 2370 °F

mesh size: 1m*30m,1.2*30m,1.2m*30.5m,etc

Melting point:3410±20℃

Boiling point:5927℃

surface tretment: Black oxide or Chemical cleaned

Tensile strength and elongation are for annealed 0.012" wire diameter. Other diameters will varies.

Description of Tungsten Wire Mesh

Tungsten wire mesh has the highest melting point and tensile strength among all alloy woven wire mesh at extreme temperatures.

The product is woven with pure tungsten wire (black pure tungsten wire, tungsten content greater than or equal to 99.95%). The common tungsten mesh weaving process is plain weave and twill weave; the product is flat and oil-free, without broken wires; the tungsten mesh has high resistance and high melting point, and is widely used in vacuum furnace tungsten mesh heating elements, heat treatment support nets, various machinery, electrical appliances, air conditioners, filters and electromagnetic shielding nets, vacuum furnace heat treatment grids, light wave filtering.

Specification of Tungsten Wire Mesh

Mesh Size	Wire Diameter
30mesh	0.15mm
30mesh	0.1mm
50mesh	0.03mm
100mesh	0.02mm
100mesh	0.08mm
150mesh	0.05mm
150mesh	0.03mm
200mesh	0.03mm
360mesh	0.017mm

In addition to conventional tungsten wire mesh, we can also provide cutting, welding and other processing. For example, discs, strips, and even baskets.
