Home Products

Special Mesh

Inconel 600 601 625 Wire Mesh Plan Twill Dutch Weaving

Name: Inconel 600 601 625 Wire Mesh Plan Twill Dutch Weaving
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-INCONEL
Availability: InStock

Model Number:	HH-INCONEL
MOQ:	1 SQAURE METER
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Inconel 600 601 625 Wire Mesh

Material:

Inconel 600 601 625 700 Alloy Wire

Weave Type:

Plan/ Twill-Dutch Weaving

Mesh Size:

7x40mesh-500x3500 Mesh

Mesh Width:

0.914m,1m, 1.2m, 1.22m, 1.3m, 1.5m Etc

Customized:

Different Size And Shape

Packaging Details:

ROLL+PLASTIC FILM

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

7x40 Inconel 600 Wire Mesh

Inconel 601 Wire Mesh 500x3500

Dutch Weaving Inconel 625 Wire Mesh

Product Description

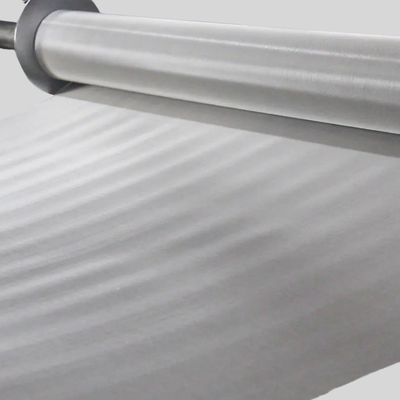

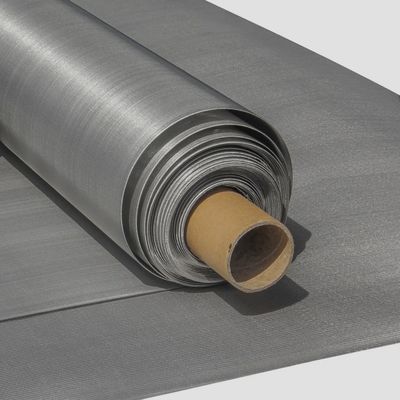

Inconel 600 601 625 Wire Mesh

Quick details of Inconel 600 601 625 Wire Mesh

Nickel Alloy 601 is composed mostly of nickel (58-63%) and also includes:

Cr 21-25% Al 1-1.7% Mn 1% max Co 1% Si .5% max Fe balance Si .59% max S .015% max

Customizable Sizes: Available in various widths, including 0.914m, 1m, 1.2m, and 1.5m, to accommodate diverse user needs.

Durable and Reliable: With a mesh count ranging from 2-250 mesh, this product provides excellent filtration capabilities for the chemical industry and other applications.

Multi-Functional: Our product offers various processing services, including bending, welding, decoiling, cutting, and punching, to cater to different user requirements.

Features of Inconel 600 601 625 Wire Mesh

(1)High Temperature Resistance withstands extreme heat without losing strength or integrity.
(2)Corrosion Resistance in acids, alkalis, and saltwater.
(3)Strength and Durability is exceptionally strong durable, maintaining its structural integrity over time.
(4)Versatility: It comes in various grades and configurations, allowing customization for specific needs.
(5)Chemical Compatibility with a wide range of chemicals, ensuring reliability in diverse environments.
(6)Low Thermal Expansion: It expands and contracts minimally with temperature changes, ensuring dimensional stability.
(7)Creep Resistance deformation over time, even under high temperatures and stress.

Specification of inconel 600 601 625 wire mesh

Plain-Dutch Weaving Mesh Size			Twill-Dutch Weaving Mesh Sizes
Mesh count(mesh)	Wire diameter(mm)	Micron	Mesh count(mesh)	Wire diameter(mm)	Micron
7x40	0.9x0.71	350	70x600	0.14x0.09	30
8x45	0.8x0.6	310	80x680	0.112x0.08	28
8x62	0.63x0.45	300	90x780	0.1x0.07	25
10x90	0.45x0.28	250	101x900	0.10x0.063	20
12x64	0.56x0.4	210	127x1400	0.07x0.05	17
14x110	0.355x0.25	180	160x1400	0.063x0.04	15
16x120	0.28x0.224	145	165x600	0.071x0.05	28
20x140	0.315x0.2	133	165x800	0.071x0.05	25
24x110	0.35x0.25	120	165x1100	0.071x0.04	20
25x140	0.28x0.20	100	165x1400	0.071x0.04	16
30x150	0.25x0.18	80	200x600	0.071x0.06	15
35x180	0.224x0.16	70	200x800	0.071x0.06	14
40x200	0.20x0.14	60	200x1400	0.071x0.04	12
50x250	0.14x0.11	53	200x1600	0.05x0.032	10
55x280	0.14x0.10	50	200x1800	0.045x0.03	9
60x300	0.11x0.08	36	250x2000	0.04x0.028	8
70x350	0.11x0.08	35	300x2100	0.036x0.025	6
70x400	0.11x0.007	32	325x2300	0.036x0.024	5
70x430	0.11x0.065	30	400x2700	0.028x0.02	4
80x400	0.10x0.065	40	400x2800	0.035x0.02	3
80x780	0.1x0.07	30	500x3200	0.03x0.019	2
100x1200	0.065x0.023	23	500x3500	0.025x0.015	1
