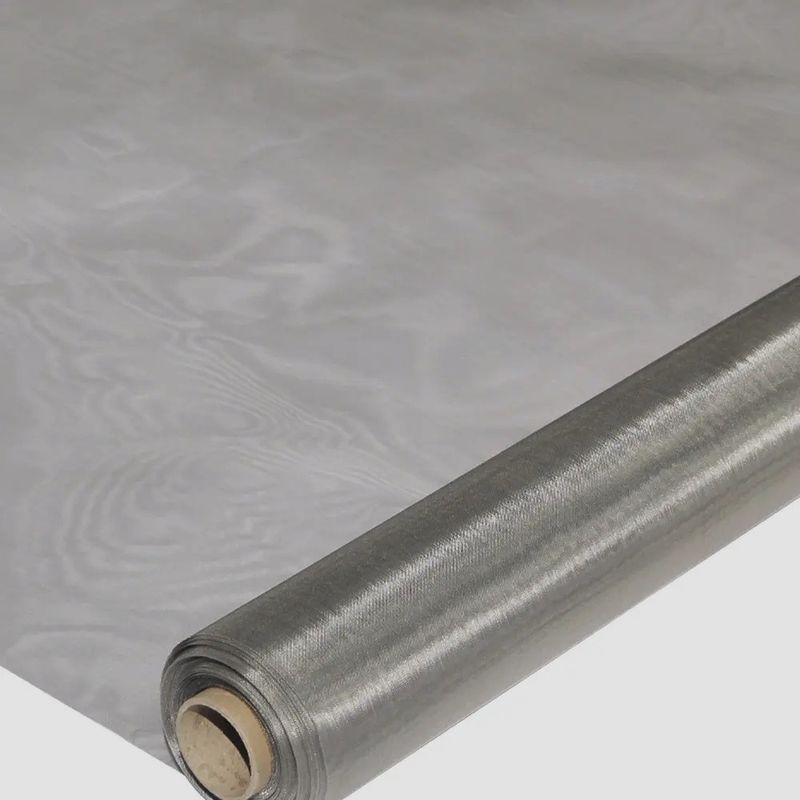

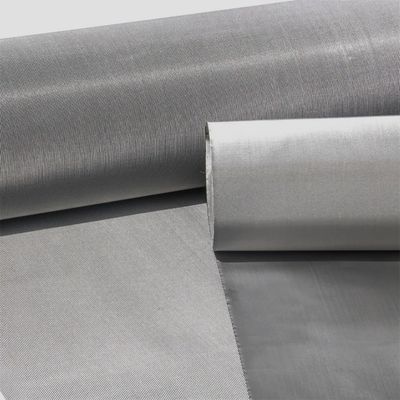

100 Mesh Cr20Ni80 Special Wire Mesh / Fine Mesh Screen Fabric

100 Mesh Cr20Ni80 Special Wire Mesh / Fine Mesh Screen Fabric

100 Mesh Cr20Ni80 Special Wire Mesh / Fine Mesh Screen Fabric

Model Number: HH-SPECIAL
MOQ: 1 square meters
Price: CONTACT US
Payment Terms: L/C, T/T, Western Union, ALIPAY
Supply Ability: 1000 ROLLS PER 20 DAYS
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Features:
Magnetic,Acid Resistance,Alkali Resistance,Temperature Resistance
Name:
Cr20Ni80 Special Wire Mesh
Material:
Cr20Ni80 Fine Wire
Roll Width:
0.914m 1m 1.2m 1.5m
Customized:
Customized Sizes According To The Customer's Request
Mesh:
100 Mesh
Wire Dia:
SWG44
Apeature:
0.172mm
Packaging Details:
ROLL+PLASTIC FILM+wooden case
Supply Ability:
1000 ROLLS PER 20 DAYS
Highlight:

100 Mesh Special Wire Mesh

,

Cr20Ni80 Special Wire Mesh

,

fine mesh screen fabric 100 x100

Product Description



Cr20Ni80 Special Wire Mesh



Quick details of Cr20Ni80 Special Wire Mesh



1.Material:Cr20Ni80, Cr15Ni60,Cr20Ni35, Cr20Ni30.

2.mesh count: 100 x100

3.wire diameter: SWG44

4.Aperture: 0.172mm

5.characteristics of Cr20Ni80 Special Wire Mesh

characteristic has bears the acid and alkali,against leakage ability strongly,the easy curl,the cost low status.Widely uses in the battery profession,the manufacture nickel cadmium,the nickel battery,the carp iron electron battery.



Common specification of Cr20Ni80 Special Wire Mesh



Mesh/Inch Wire Gauge SWG Aperture mm
20 30 0.95
30 34 0.61
40 36 0.44
50 38 0.36
60 40 0.30
80 42 0.21
100 44 0.172
120 44 0.13
150 46 0.108
160 46 0.097
180 47 0.09
200 47 0.077



Chemical composition, % of material wire


Grade
C
P
S
Mn
Si
Cr
Ni
Al
Fe
Cr20Ni80
≤0.03
≤0.02
≤0.015
≤0.60
0.75~1.60
20.0~23.0
balance
≤0.50
≤1.0
Cr30Ni70
≤0.05
≤0.02
≤0.015
≤0.60
0.75~1.60
28.0~31.0
balance
≤0.50
≤1.0
Cr15Ni60
≤0.08
≤0.02
≤0.015
≤0.60
0.75~1.60
15.0~18.0
55.0~61.0
≤0.50
balance
Cr35Ni20
≤0.08
≤0.02
≤0.015
≤1.00
1.0~3.0
18.0~21.0
34.0~37.0

balance
Cr20Ni30
≤0.08
≤0.02
≤0.015
≤1.00
1.0~2.0
18.0~21.0
30.0~34.0

balance


Mechanical and Physical Properties of Alloys


Grade
Cr20Ni80
Cr30Ni70
Cr15Ni60
Cr20Ni35
Cr20Ni30
Density(g/cm3)
8.4
8.1
8.2
7.9
7.9
Resistivity(Ωmm2/m)
1.09
1.18
1.12
1.04
1.04
Thermal Conductivity(Wmk)
15
14
13
13
13
Max temp(℃)
1200
1250
1150
1100
1100
Melting temp(℃)
1400
1380
1390
1390
1390
Magnetic
No
No
No
No
No
Specific electrical(Mpa)
420
430
370
340
340
Tensile strength(MPa)
650
650
600
600
600
Elongation( %)
20
20
20
20
20


Supply form and Specification


Alloy grade
Form
Specification
CrNi(2080/1560/3520/3070/2030)
Wire
Diameter=0.02mm~8mm
CrNi(2080/1560/3520/3070/2030)
Flat wire
Width=1~5mm
Thick=0.08~2.5mm
CrNi(2080/1560/3520/3070/2030)
Strip
width=6~250mm
ThickT=0.1~3.0mm
CrNi(2080/1560/3520/3070/2030)
Foil
width=6~120mm
Thick=0.01~0.1mm
CrNi(2080/1560/3520/3070/2030)
Bar
Diameter=8~100mm
Long=50~1000
CrNi(2080/1560/3520/3070/2030)
Plate/sheet
Thickness :1mm~50mm；Width:50mm~1000mm
Length:500mm~6000mm
