Home Products

Special Mesh

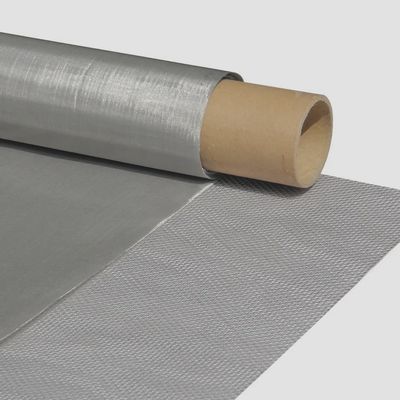

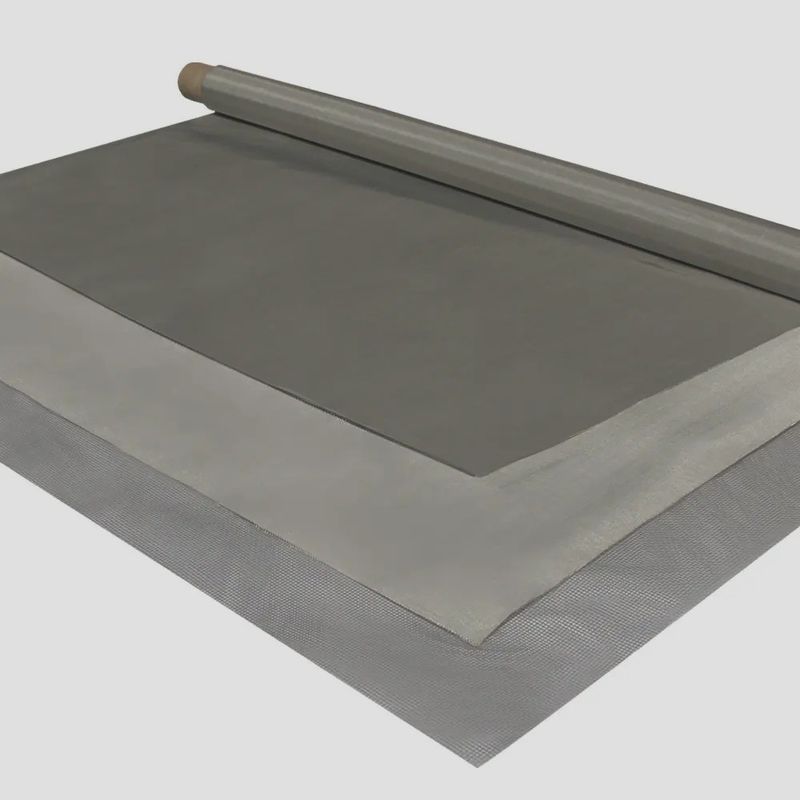

Chemical Fiber Special Tungsten Wire Mesh Cloth

Name: Chemical Fiber Special Tungsten Wire Mesh Cloth
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-TUNGSTEN
Availability: InStock

Model Number:	HH-TUNGSTEN
MOQ:	1 square meter
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 ROLLS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Tungsten Wire Mesh

Material:

99.9% Pure Tungsten Wire

Mesh:

10-180

Wire Diameter:

0.02mm-0.25mm

Roll Max Width:

50mm

Customized:

Different Size And Shape

Usage:

Chemical Fiber

Sample:

Free Small Sample For Stock Mesh

Packaging Details:

Water-proof, plastic paper, wooden case, pallet

Supply Ability:

1000 ROLLS PER 30 DAYS

Highlight:

99.9% pure Tungsten Wire Mesh

Chemical Fiber Tungsten Wire Mesh

50mm tungsten wire cloth

Product Description

Chemical Fiber Special Tungsten Wire Mesh

Quick details of Special Tungsten Wire Mesh

Usage: Battery, Chemical, Mine, Hydrogen Making, Acid Making, Basic Industry etc.
Material: over 99.9% pure tungsten wire
MOQ: 1 roll
Woven style: Plain and Twill Weave
Mesh :10-180Mesh
Diameter: 0.02mm-0.25mm
Roll Width: 0.1-1.5m
Roll Length: 10-100m

Description of Special Tungsten Wire Mesh

Tungsten wire mesh is special due to the metal used. With purity more than 99.9% Tungsten is a greyish white refractory metal, has the highest tensile strength among all metals. The metal has the highest melting point and the lowest vapor pressure. Tungsten is extracted from ores, crushed to become powdery and thereafter mixed and molded to create the wire mesh

Specification of Special Tungsten Wire Mesh

Mesh Count	Wire Diameter(mm)	Aperture(mm)	Max Width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60

Note: Special size and specifications can be made according to customers requires.

Features

Highest melting point – over 1650C at high temperature
Melting point of 3410C
Low vapor pressures at high temperature
Electrical and thermal conductivity
Low coefficient thermal expansion
High density
High tensile strength at extreme temperature
