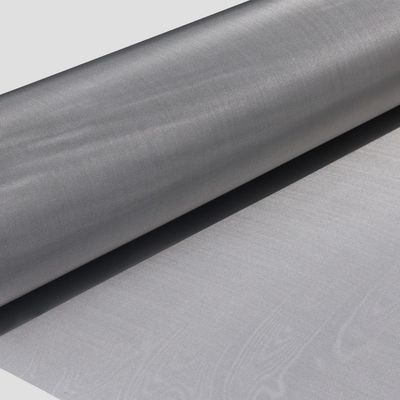

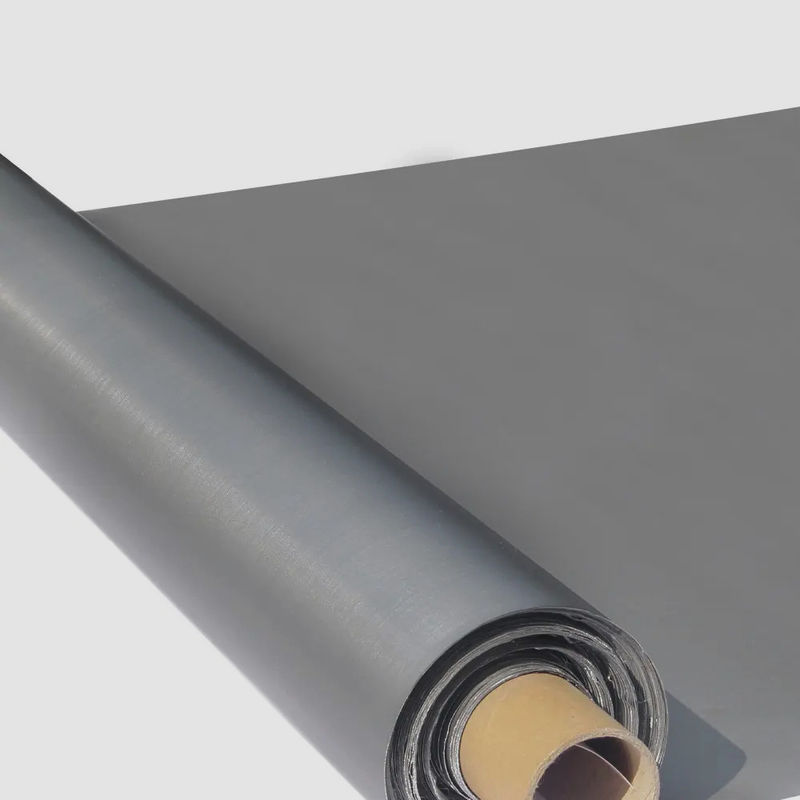

Oxidation Resistance Special Material Plain Dutch Weave Mesh 250X1400

Name: Oxidation Resistance Special Material Plain Dutch Weave Mesh 250X1400
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SPECIAL
Availability: InStock

Model Number:	HH-SPECIAL
MOQ:	1 square meters
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Special Material Wire Mesh

Feature:

Oxidation Resistance

Mesh:

250X1400

WIRE DIA:

.0022*X0016"

Nominal Micron Retention:

Woven Type:

Plain Dutch Weave

Packaging Details:

Paper tube,Craft paper,Plastic film, Wooden box/ pallet

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

Special Material plain dutch weave mesh

Oxidation Resistance Special Mesh

plain dutch weave mesh 250X1400

Product Description

Oxidation Resistance Special Material Wire Mesh

Quick details of Oxidation Resistance Special Material Wire Mesh

1.Specification customization: Wire Diameter, Mesh Count, Length and width
2.Mesh type: Woven wire mesh is available on the roll or cut to size
3.Stainless steel wire 201,202,304,304L, 316,316L, 321, 430, etc
4.More materials available: Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc

Description of Oxidation Resistance Special Material Wire Mesh

Belt type automatic filter is also known as contrast mesh, contrast mat mesh belt (Dutch cloth). This product is made of high-quality, high-strength stainless steel wire, with advanced equipment, superb production technology, and excellent filtration performance.It has the advantages of smooth mesh surface, high hardness, continuous meshing, no deformation, high temperature resistance, corrosion resistance, and flexible meshing.

Applications

1. Plastic extruder

2. Screening under acid and alkali environmental conditions

3. Mud mesh in the petroleum industry

4. Screen in the chemical fiber industry

5. Pickling mesh in industry

dutch weave type specificatiopn of Special Material Wire Mesh

Mesh Count Per Inch Warp * Shute	Wire Diameter Inches Warp * Shute	Nominal Micron Retention
Plain Dutch Weave
12*64	.023*.0165	180
24*110	.015*,0105	115
30*150	.009*.007	95
40*200	.007*,0055	75
50*250	.0055*,0045	60

Mesh Count Per Inch Warp * Shute	Wire Diameter Inches Warp * Shute	Nominal Micron Retention
Twilled Dutch Weave
20*250	,0036*.008	87
30*250	.010*,008	70
80*700	.004*.003	30-35
165*800	.0029*.0020	25
165*1200	,0028*,0016	19
165*1400	.0028*.0016	14
200*600	.0026*.0018	26
200*900	,0020*,0014	23
200*1400	.0028*.0016	10
250*1370	,0022*,0016	8
250*1400	.0022*,0016	8
250*1620	,0022*,0015	7-8
325*1370	.0014*.0012	7
325*1700	,0014*.0012	6
325*1900	.0014*.0011	5
325*2300	,0014*,0011	5
325*2800	.0014*.0010	4
325*2400	.0012*.0009	2-4
400*2800	.0011*.00078	2
