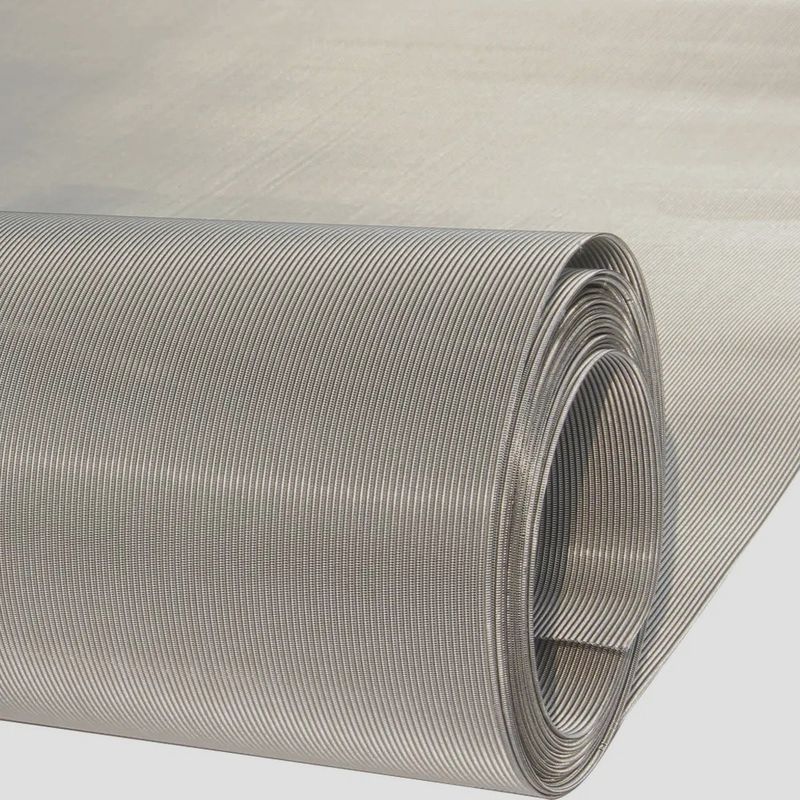

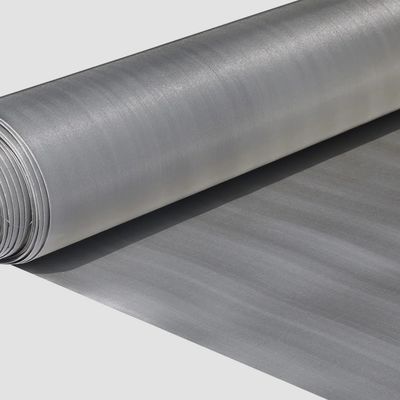

Reverse Dutch Weave Wire Mesh Special Wire Cloth Screen 7x40 - 500 x3500

Name: Reverse Dutch Weave Wire Mesh Special Wire Cloth Screen 7x40 - 500 x3500
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SPECIAL
Availability: InStock

Model Number:	HH-SPECIAL
MOQ:	1 square meters
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Special Wire Cloth Screen

Weave Type:

Reverse Dutch Weave

Application:

Pressure And Vacuum Filters; Filter Candles

Mesh:

7x40 - 500 X3500

Mesh Length:

10m, 15m, 20m, 30m

Wire Diameter:

0.13mm*0.27mm-0.45mm*0.6mm

Mesh Thickness:

0.6mm-1.75mm

Test Report:

PMI Raw Material Test

Packaging Details:

Paper tube,Craft paper,Plastic film, Wooden box/ pallet

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

Special Reverse Dutch Weave Wire Mesh

Wire Cloth Screen 7x40

Wire Cloth Screen 500 X3500

Product Description

Reverse Dutch Weave Special Wire Cloth Screen

Description of Reverse Dutch Weave Special Wire Cloth Screen

Reverse Dutch Weave Special Wire Cloth Screen is woven with a large wire diameter in the warp direction and a relatively smaller wire in the shute direction. This weave has great strength and is available in wide range of micron ranges. It is primarity used to filter a wide range of liquid and slurry products.

Because of its special weaving method and wire diameter several times thicker than square stainless steel mesh,it is suitable for high-pressurefiltration.

It is more wear-resistant and pressure-resistant.The higher the mesh number,the texture the finer.

Stainless steel mesh has high temperature resistance and anti-corrosion functions,and can be used for screening and filtration in acid and alkali environments.

Specification of Reverse Dutch Weave Special Wire Cloth Screen

Plain-Dutch Weaving Mesh Size			Twill-Dutch Weaving Mesh Sizes
Mesh count(mesh)	Wire diameter(mm)	Micron	Mesh count(mesh)	Wire diameter(mm)	Micron
7x40	0.9x0.71	350	70x600	0.14x0.09	30
8x45	0.8x0.6	310	80x680	0.112x0.08	28
8x62	0.63x0.45	300	90x780	0.1x0.07	25
10x90	0.45x0.28	250	101x900	0.10x0.063	20
12x64	0.56x0.4	210	127x1400	0.07x0.05	17
14x110	0.355x0.25	180	160x1400	0.063x0.04	15
16x120	0.28x0.224	145	165x600	0.071x0.05	28
20x140	0.315x0.2	133	165x800	0.071x0.05	25
24x110	0.35x0.25	120	165x1100	0.071x0.04	20
25x140	0.28x0.20	100	165x1400	0.071x0.04	16
30x150	0.25x0.18	80	200x600	0.071x0.06	15
35x180	0.224x0.16	70	200x800	0.071x0.06	14
40x200	0.20x0.14	60	200x1400	0.071x0.04	12
50x250	0.14x0.11	53	200x1600	0.05x0.032	10
55x280	0.14x0.10	50	200x1800	0.045x0.03	9
60x300	0.11x0.08	36	250x2000	0.04x0.028	8
70x350	0.11x0.08	35	300x2100	0.036x0.025	6
70x400	0.11x0.007	32	325x2300	0.036x0.024	5
70x430	0.11x0.065	30	400x2700	0.028x0.02	4
80x400	0.10x0.065	40	400x2800	0.035x0.02	3
80x780	0.1x0.07	30	500x3200	0.03x0.019	2
100x1200	0.065x0.023	23	500x3500	0.025x0.015	1

Usage of Reverse Dutch Weave Special Wire Cloth Screen

Reverse Dutch Weave Special Wire Cloth Screen Widely used as filter media in plastic wire drawing machines, stretch film machines, coating machine filters, plastic recycling filters, and polymer melt filtration.Filters for plastic, rubber and petroleum industries.Rub edges after slitting to help track automatic screen changers. High tensile warp for automatic screen changers in plastic extrusion industry.Automatic plastic extruder machine reverse dutch braid mesh belt.Reverse plain Dutch weave mesh is also used in applications requiring specific acoustic properties, mechanical robustness and high throughput filtration.
