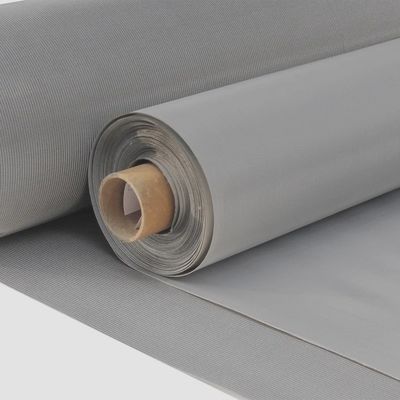

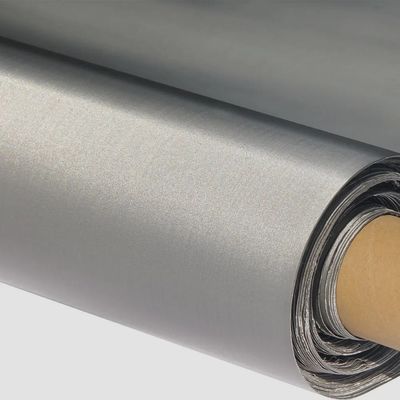

Solid Particle Sorting Special Mesh Woven Mesh Plan And Dutch Weave

Name: Solid Particle Sorting Special Mesh Woven Mesh Plan And Dutch Weave
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SPECIAL
Availability: InStock

Model Number:	HH-SPECIAL
MOQ:	1 square meters
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Special Woven Mesh

Usage:

Solid Particle Sorting

Weave Type:

Plan And Dutch Weave

Min Wire:

0.015mm

Max Width:

8000mm

Customized:

Different Size And Shape

Packaging Details:

Paper tube,Craft paper,Plastic film, Wooden box/ pallet

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

special fine wire cloth

plan special mesh

plan fine wire cloth

Product Description

Solid Particle Sorting Special Woven Mesh

Quick details of Solid Particle Sorting Special Woven Mesh

Special Material meets with high requirement environment:

Nickel wire mesh, monel alloy wire mesh, Titanium Woven Mesh, Inconel Mesh, Silver Woven Mesh, Molybdenum Mesh and

310S, 309 303 330 430, 410, 904L, 430, 321, 317, 317H, 316Ti, duplex 2205, super duplex 2507

Standard widths: 1000mm and 1220mm, 1500mm, 2000mm, max 8000mm, other widths available on request.
Standard roll lengths:15m and 30m, 50m according to specification.

Cut sections also available in all sizes and shapes.

Expect for weave mesh, also provide the Additional Services:

Precious Cutting Size with special shape 【+-0.02mm】
Flattening Service 【+-0.02mm】

Strips Cutting width can be 5mm. 【+- 0.02mm 】

Parts specification of special woven mesh

plain woven type wire mesh

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight
Mesh Acount	Inch	mm	inch	mm	%	LB/100SQfoot
10X10	0.02	0.51	0.08	2.03	64	26.1
20X20	0.02	0.508	0.03	0.76	36	55.2
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
50X50	0.009	0.229	0.011	0.28	30.3	28.4
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
Other size customized

dutch weave wire mesh

Type	Mesh/Inch	Wire diameter (inch)	Absolute Filtration Finess μm	Nominal Filtration Finess μm
Plain Dutch Weave Wire Mesh	8 × 85 - 80 × 400	0.014'' × 0.0126'' - 0.0049'' × 0.0028''	318-340 to 43-48	250-255 to 35-40
Twill Duntch Weave Wire Mesh	20 × 250 - 500 × 3200	0.0098'' × 0.0079'' - 0.0015'' × 0.0010''	110-120 to 8-9	98-105 to 2-3
