Heating Resistance Fireproof Wire Mesh Roll Szie 0.914m 1.0m 1.22m 1.5m 3.0m

Name: Heating Resistance Fireproof Wire Mesh Roll Szie 0.914m 1.0m 1.22m 1.5m 3.0m
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SPECIAL
Availability: InStock

Model Number:	HH-SPECIAL
MOQ:	1 square meters
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Heating Resistance Fireproof Wire Mesh

Weave Type:

Dutch Weave

Material:

1Cr13A4 Wire

Max Working Temperature:

950 Degree

Plan Mesh Count:

Woven Up To 400 Mesh

Twill Mesh Count:

Woven Up To 635 Mesh

Dutch Mesh Count:

Up To 70x400 Mesh

Roll Szie:

0.914m,1.0m,1.22m,1.5m.3.0m

Packaging Details:

Paper tube,Craft paper,Plastic film, Wooden box/ pallet

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

heating resistance fireproof wire mesh

0.914m nichrome wire mesh

0.914m fireproof wire mesh

Product Description

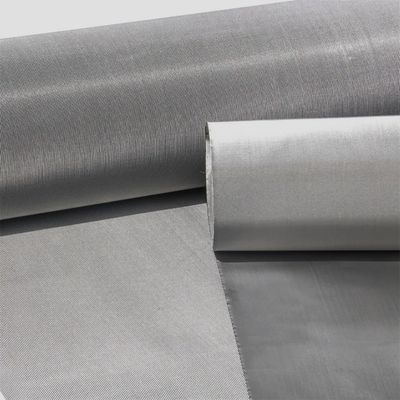

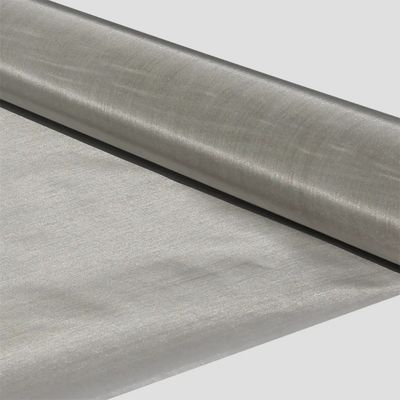

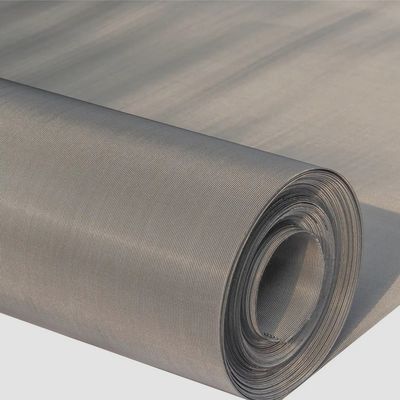

Heating Resistance Fireproof Wire Mesh

Quick details of Heating Resistance Fireproof Wire Mesh

Material: 1Cr13Al4, 1Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2.

Weave type:plain weave, twill weave , dutch weave and twilled dutch weave, reverse dutch weave, etc

Mesh count: Plain weave can be woven up to 400 mesh Twill weave can be woven up to 635 mesh, Dutch weave can be woven up to 70x400 mesh

Roll size: Roll Width:0.914m,1.0m,1.22m,1.5m.3.0m
Roll Length:15m,30m, other require can be customized

Max working temperature:

1Cr13A4 - 950 degree.
10r21A4 - 1100 degree.
0Cr21Al6 - 1250 degree.
0Cr23Al5 - 1250 degree.
0Cr25Al5 - 1250 degree.
0Cr21Al6Nb - 1350 degree.
0Cr27Al7Mo2 - 1400 degree.

Specification of Heating Resistance Fireproof Wire Mesh

Plain-Dutch Weaving Mesh Size			Twill-Dutch Weaving Mesh Sizes
Mesh count(mesh)	Wire diameter(mm)	Micron	Mesh count(mesh)	Wire diameter(mm)	Micron
7x40	0.9x0.71	350	70x600	0.14x0.09	30
8x45	0.8x0.6	310	80x680	0.112x0.08	28
8x62	0.63x0.45	300	90x780	0.1x0.07	25
10x90	0.45x0.28	250	101x900	0.10x0.063	20
12x64	0.56x0.4	210	127x1400	0.07x0.05	17
14x110	0.355x0.25	180	160x1400	0.063x0.04	15
16x120	0.28x0.224	145	165x600	0.071x0.05	28
20x140	0.315x0.2	133	165x800	0.071x0.05	25
24x110	0.35x0.25	120	165x1100	0.071x0.04	20
25x140	0.28x0.20	100	165x1400	0.071x0.04	16
30x150	0.25x0.18	80	200x600	0.071x0.06	15
35x180	0.224x0.16	70	200x800	0.071x0.06	14
40x200	0.20x0.14	60	200x1400	0.071x0.04	12
50x250	0.14x0.11	53	200x1600	0.05x0.032	10
55x280	0.14x0.10	50	200x1800	0.045x0.03	9
60x300	0.11x0.08	36	250x2000	0.04x0.028	8
70x350	0.11x0.08	35	300x2100	0.036x0.025	6
70x400	0.11x0.007	32	325x2300	0.036x0.024	5
70x430	0.11x0.065	30	400x2700	0.028x0.02	4
80x400	0.10x0.065	40	400x2800	0.035x0.02	3
80x780	0.1x0.07	30	500x3200	0.03x0.019	2
100x1200	0.065x0.023	23	500x3500	0.025x0.015	1

Usage of Heating Resistance Fireproof Wire Mesh

Heating Resistance Fireproof Wire Mesh is widely used in precision pressure filters, fuel filtration, vacuum filter, air filter and heat dissipation treatment, and make filter element raw materials. At the same time, it can be used for construction, textile, medicine, aerospace, metallurgy, coal carbon, minerals. Light industry, machinery and other technological fields
