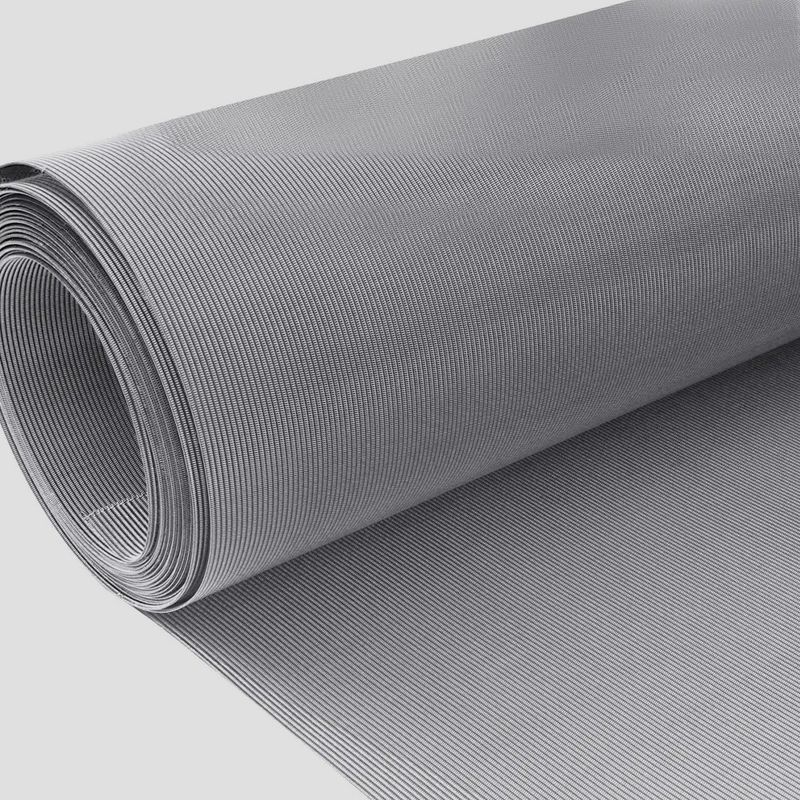

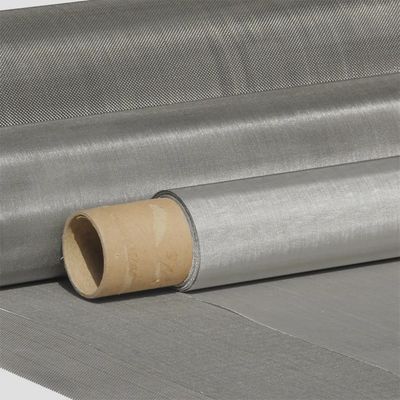

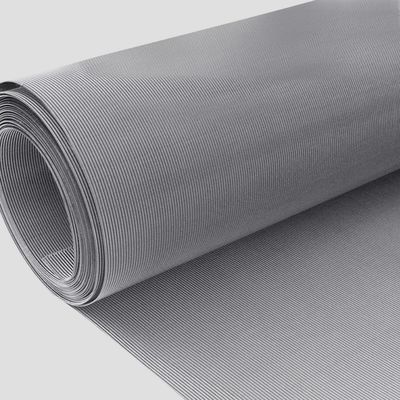

Gold Powder Sieving Special Metal Mesh Cloth Plain Weave

Name: Gold Powder Sieving Special Metal Mesh Cloth Plain Weave
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SPECIAL
Availability: InStock

Model Number:	HH-SPECIAL
MOQ:	1 square meters
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Gold Powder Sieving Special Mesh Cloth

Material:

SU302, 304, 316, 304L, 316L, 310S, 321 Etc

Usage:

Gold Powder Sieving

Weave Type:

Plain Weave

Mesh:

2-635

Wire Diameter:

0.015mm-0.28mm

Packaging Details:

inner kraft, outside plastic cloth, put into wooden pallet or case

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

Gold Powder Sieving metal mesh cloth

Special metal mesh cloth

metal mesh cloth plain weave

Product Description

Special Wire Mesh Gold Powder Sieving High Filtration Accuracy 325 350 400 Mesh Stainless Steel Wire Cloth

Quick details of Gold Powder Sieving Special Mesh Cloth

1.Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc

2.Wire Diameter: 0.015-0.28mm

3.Mesh count:

Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3500mesh

Description of Gold Powder Sieving Special Mesh Cloth

Sieving Special Mesh Cloth is woven by machine. It is similar to the process of weaving clothing, but it is made of wire. The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

Specification of Gold Powder Sieving Special Mesh Cloth

Mesh (inch)	Wire diameter (inch)	Aperture (inch)		Mesh (inch)	Wire diameter (inch)	Aperture (inch)
2	0.063	0.437	----------	80	0.006	0.007
5	0.041	0.159		100	0.004	0.007
10	0.025	0.075		120	0.037	0.006
14	0.020	0.051		150	0.003	0.004
18	0.017	0.039		180	0.002	0.003
20	0.016	0.034		200	0.002	0.003
24	0.014	0.028		300	0.005	0.002
30	0.009	0.024		500	0.001	0.001
40	0.010	0.015		635	0.001	0.001
60	0.007	0.010		Accpet Custom

Product Features of Sieving Special Mesh Cloth

Uniform mesh, good production reproducibility；
Good resistance to acid, alkali and corrosion；
High strength, tensile strength, toughness and wear resistance, long service life；
Uniform structure, non - crimp, easy to use, uniform thickness, antistatic；
High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius
