Copper Brass Filter Mesh Roll 0.914 M X30 M, 1 M X30 M, 1.22 M X30 M

Name: Copper Brass Filter Mesh Roll 0.914 M X30 M, 1 M X30 M, 1.22 M X30 M
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: hh-cb
Availability: InStock

Model Number:	hh-cb
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	50000 square meters per 25 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Brass Copper Filter Mesh

Material:

Copper Wire, Brass Wire

Mesh:

10-635

Mesh Size:

0.914 M X30 M, 1 M X30 M, 1.22 M X30 M Per Roll

Single Package Size:

100cmx100cmx55cm

Shape:

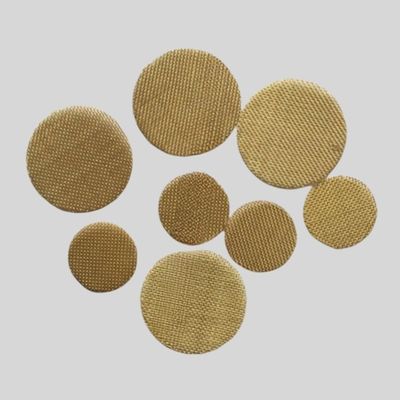

Slip, Disc,tube, Cup Or Customized Shape

Packaging Details:

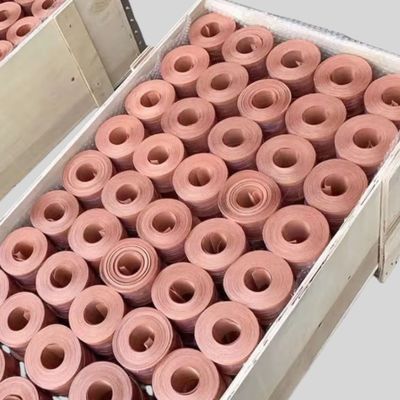

Plastic woven bag insode and Carton box , then wooden case

Supply Ability:

50000 square meters per 25 days

Highlight:

Copper brass filter mesh

brass filter mesh roll

1.22MX30M copper filter mesh

Product Description

Copper Brass Filter Mesh

Quick details of Copper Brass Filter Mesh

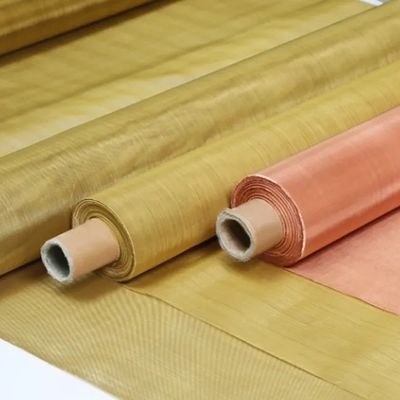

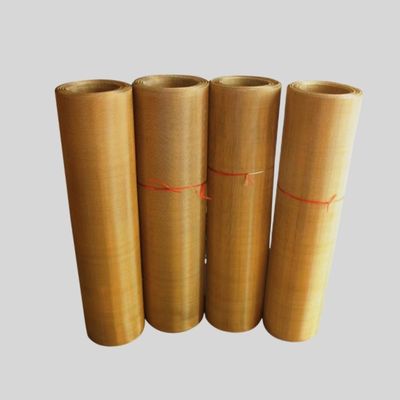

Copper filter mesh is also called red copper mesh. The purity of copper is 99.8%. The aperture of copper wire mesh can range from 2 meshes to 100 meshes, which can suit for different requirements, common mesh size 0.914 m X30 m, 1 m X30 m, 1.22 m X30 m per roll.

Brass filter mesh is also called papermaking cloth, which is used in the papermaking industry. brass wire material contains 65% copper and 35% zinc (260 High Brass (70% copper + 30% zinc), Red Brass(80% copper + 20% zinc). Brass woven wire cloth has outstanding acid and alkali resistance, so it is widely used for filtering applications.

Specification of copper brass filter mesh

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight
Mesh/Inch						(kg /Square meter)
	Inch	MM	Inch	MM	(%)
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
14X14	0.02	0.508	0.051	1.3	71.9	1.8
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
40X40	0.01	0.254	0.015	0.38	59.9	1.3
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1

Advantages of Copper Brass Filter Mesh

1.Easily for installation and replacement ;
2.Made of high quality stainless steel, suitable for various filtration scenarios;
3.High strength through resistance to twisting, compressive, and tensile forces ;
4.Special edge design ,safe without burrs;
5.Process drawings or samples according to customer's requirements;

Features & Use:

Sturdier than copper and antique brownish-red color.Superior to brass in both strength and corrosion resistance.90% copper and 10 % zinc.Uses include highly technical to decorative.
Phosphor bronze wire mesh has stronger corrosion resistance and durability than brass wire mesh. And it has a unique antique brownish-red color, which is an important reason for the use of phosphor bronze wire mesh from various marine and military applications to a commercial and residential insect screen. Phosphor bronze wire mesh is not as flexible and ductile as red copper wire mesh for industrial needs, so it is often used in filtration and separation applications.
