Bronze Wire Mesh For Craft Papermaking Twill And Palin Weave

Bronze Wire Mesh For Craft Papermaking Twill And Palin Weave

Model Number: HH-PRW
MOQ: 1 square meter
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 50000 square meter per 15 days
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Material:
90% Copper, 10% Zinc
Weave Type:
Twill And Palin Weave
Mesh:
14 -200
Application:
Craft Papermaking
Characteristics:
Flexible, Durable, And Ductile
Business Type:
Manufacturer & Factory
Packaging Details:
paper tube + wooden case
Supply Ability:
50000 square meter per 15 days
Highlight:

craft brass wire mesh

,

craft bronze wire mesh

,

papermaking brass wire mesh

Product Description

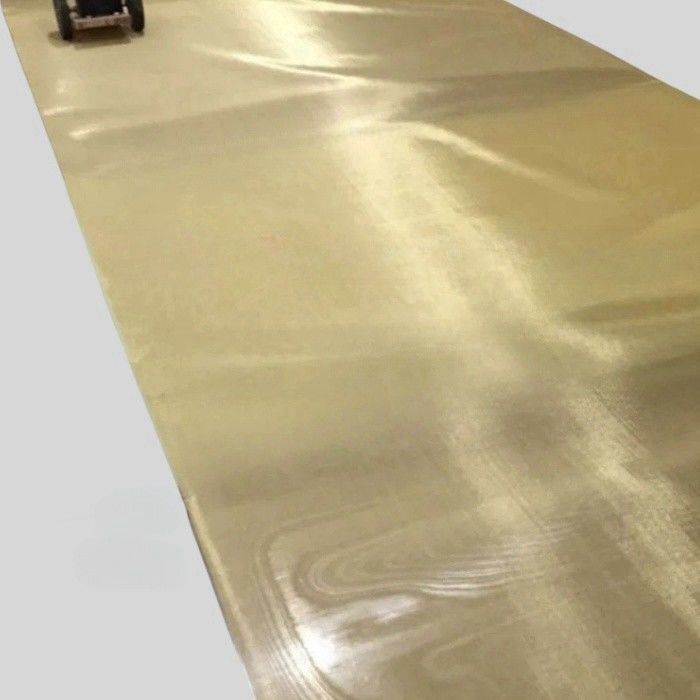

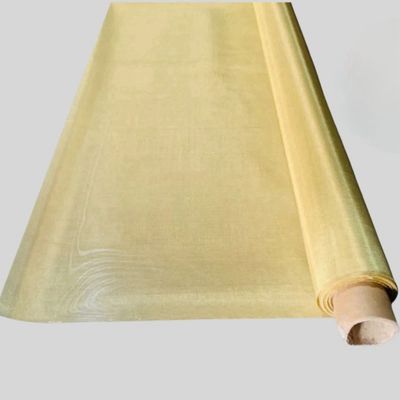

Bronze Wire Mesh For Craft Papermaking



Quick details of bronze wire mesh



Material: phosphor bronze wire/tin bronze wire(2%-8% tin, 0.1%-0.4% phosphorus, the rest copper.)
Width: 0.6-3m.
Mesh: 14 mesh-200 mesh
Roll length: 10-50 m or customized.
Weaving methods: plain weave, twill weave.



Description of bronze wire mesh



Bronze Wire Mesh is superior to Brass Wire Mesh in resistance to atmospheric corrosion, which is a major reason why bronze mesh usage spans from various marine and military applications to commercial and residential insect screen. For the industrial user of wire cloth, Bronze Wire Mesh is harder and less malleable compared to a similar Copper Wire Mesh, and as a result, it is commonly used in separation and filtration applications.



Specification of bronze wire mesh



Item Mesh (wires/in.) Wire diameter (in.) Width of opening (in.) Open area (%)
HHPB-01 14 × 14 0.0190 0.0524 53.90
HHPB-02 36 × 36 0.0120 0.1580 32.3
HHPB-03 40 × 34 0.0100 0.0000 39.6
HHPB-04 50 × 50 0.0090 0.0110 30.3
HHPB-05 70 × 70 0.0060 0.0080 33.8
HHPB-06 80 × 80 0.0055 0.0070 31.4
HHPB-07 100 × 100 0.0015 0.0085 72.3
HHPB-08 100 × 100 0.0045 0.0055 30.2
HHPB-09 110 × 110 0.0040 0.0051 31.4
HHPB-10 120 × 120 TW 0.0040 0.0043 26.80
HHPB-11 150 × 150 0.0026 0.0041 37.4
HHPB-12 200 × 200 0.0021 0.0029 33.6



Bronze wire mesh exhibits many of the same characteristics as copper. With a dull-gold color, it's increasingly popular for decorative and architectural applications. Because of its resistance to corrosion, bronze wire mesh has a wide range of applications from commercial and residential insect screens to marine applications. Because of its non-magnetic, bronze wire mesh can be used for electromagnetic interference shielding. Possessing beautiful colors,  bronze wire meshes are made into cabinet screens, ceiling or interior walls. Of course, it can filter coffee particles, powders, porcelain clay, etc.



Features of Bronze Wire Mesh

  • 90-10 commercial bronze wire mesh
  • 95-5 phosphor bronze wire mesh
  • The color is bronze (brown-red) and will turn green-brown after the patina.
  • Better corrosion resistance than brass wire mesh can be used in seawater environments.
  • Flexible, durable, and ductile.
  • Sturdier than copper wire mesh.
