Customized 99.9% Pure Woven Copper Wire Mesh

Name: Customized 99.9% Pure Woven Copper Wire Mesh
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-CWW
Availability: InStock

Model Number:	HH-CWW
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	50000 sqaure meters within 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Copper Wire Mesh

Material:

99.9% Pure Copper Wire

Weave Type:

Plain Woven

Mesh:

4 - 200 In Common

Usage:

Faraday Cage, EMF RF Shielding, Decorate Facade, Divide Space ,filter

Roll Length:

30m（100ft）or Customzied

Packaging Details:

inter with paper tube, out with waterproof paper

Supply Ability:

50000 sqaure meters within 20 days

Highlight:

customized copper wire mesh

customized copper screen mesh

200 copper wire mesh

Product Description

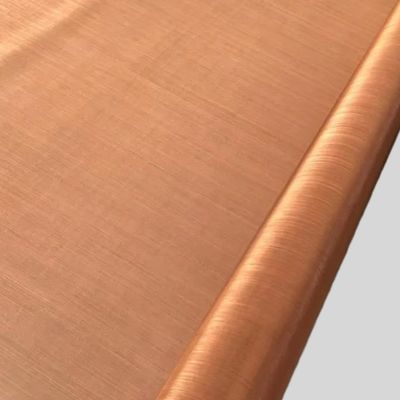

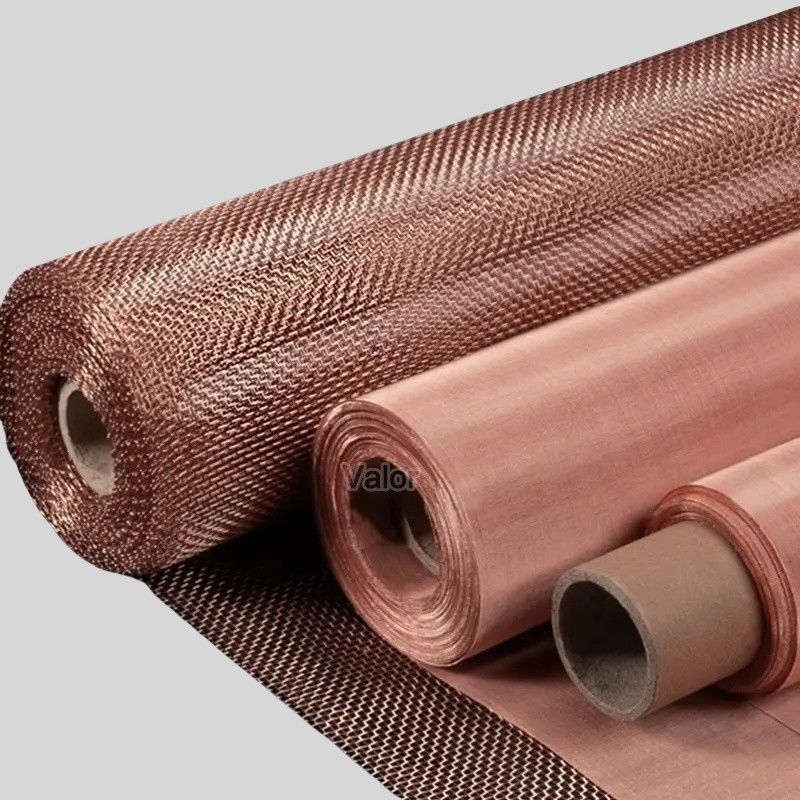

Customized 99.9% Pure Woven Copper Wire Mesh

Quick details of copper wire mesh

Material: 99.8% copper wire.

Weaving type: plain weave.

Wire diameter: 0.0045" - 0.063".

Mesh size: 2 mesh - 100 mesh.

Color: Red.

Width: 1m, 1.5m, 1.5m and 2m.

Length: commonly is 30m, other sizes can be customized

Description of copper wire mesh

Material	red copper wire-99.9%
Wire diameter	0.05-2.03mm (as required)
Mesh counts	2-250mesh (as required)
Dutch Weave	Plain woven, Twill woven, Can be customized as required.
Roll Width	1m 1.22m 1.5 meters(2-10 meters can be customized)
Roll Length	30m 50m or customized

Red copper wire mesh is the highest copper content in the copper mesh products, with a copper content of 99.9%. It is soft, malleable, and has high electrical and thermal conductivity. As a result, it is popularly used as RFI shielding, in Faraday Cages, in roofing, in HVAC, and in numerous electrical-based applications.

Specification of copper wire mesh

Mesh	Wire Diameter		Opening Size		Open area
Mesh	Inch	Millimeter	Inch	Millimeter
2	0.0470 Inch	1.194 Mm	0.453 Inch	11.506 mm	82.10%
3	0.0800 Inch	2.032 Mm	0.253 Inch	6.435 mm	57.80%
4	0.0630 Inch	1.600 Mm	0.187 Inch	4.749 mm	56.00%
10	0.0200 Inch	0.508 Mm	0.080 Inch	2.032 Mm	64.00%
12	0.0280 Inch	0.711 Mm	0.055 Inch	1.397 Mm	44.00%
16	0.0090 Inch	0.228 Mm	0.054 Inch	1.359 Mm	73.30%
20	0.0090 Inch	0.228 Mm	0.041 Inch	1.041 Mm	67.20%
26	0.0075 Inch	0.191 Mm	0.031 Inch	0.787 Mm	64.80%
28	0.0100 Inch	0.254 Mm	0.026 Inch	0.653 Mm	51.80%
30	0.0065 Inch	0.165 Mm	0.027 Inch	0.681 Mm	64.80%
34	0.0065 Inch	0.165 Mm	0.023 Inch	0.582 Mm	60.70%
36	0.0065 Inch	0.165 Mm	0.021 Inch	0.540 Mm	58.70%
44	0.0055 Inch	0.140 Mm	0.017 Inch	0.437 Mm	57.50%
46	0.0055 Inch	0.140 Mm	0.016 Inch	0.411 Mm	55.80%
50	0.0040 Inch	0.102 Mm	0.016 Inch	0.406 Mm	64.00%
52	0.0055 Inch	0.140 Mm	0.014 Inch	0.348 Mm	51.00%
64	0.0045 Inch	0.114 Mm	0.011 Inch	0.281 Mm	50.70%
66	0.0040 Inch	0.102 Mm	0.011 Inch	0.284 Mm	54.20%
72	0.0040 Inch	0.102 Mm	0.010 Inch	0.251 Mm	50.70%
70	0.0040 Inch	0.102 Mm	0.010 Inch	0.262 Mm	51.80%
88	0.0035 Inch	0.089 Mm	0.008 Inch	0.201 Mm	47.90%
90	0.0040 Inch	0.102 Mm	0.007 Inch	0.180 Mm	41.00%
100	0.0040 Inch	0.102 Mm	0.006 Inch	0.152 Mm	36.00%
110	0.0040 Inch	0.102 Mm	0.005 Inch	0.129 Mm	31.40%
120	0.0026 Inch	0.066 Mm	0.006 Inch	0.145 Mm	47.30%
120	0.0037 Inch	0.094 Mm	0.005 Inch	0.117 Mm	30.90%
130	0.0017 Inch	0.043 Mm	0.006 Inch	0.152 Mm	60.70%
145	0.0022 Inch	0.056 Mm	0.005 Inch	0.119 Mm	46.40%
135	0.0023 Inch	0.058 Mm	0.005 Inch	0.129 Mm	47.40%
150	0.0026 Inch	0.066 Mm	0.004 Inch	0.104 Mm	37.20%
150	0.0030 Inch	0.076 Mm	0.004 Inch	0.094 Mm	30.40%
160	0.0025 Inch	0.063 Mm	0.004 Inch	0.095 Mm	36.40%
165	0.0019 Inch	0.048 Mm	0.004 Inch	0.107 Mm	47.10%
180	0.0012 Inch	0.030 Mm	0.004 Inch	0.112 Mm	61.50%
170	0.0026 Inch	0.066 Mm	0.003 Inch	0.084 Mm	31.20%
200	0.0016 Inch	0.041 Mm	0.003 Inch	0.086 Mm	46.20%

Application Of pure woven copper wire mesh

The copper woven wire mesh can be used as the shielding screen in the cable circuits, laboratories and computer rooms.
The copper woven wire mesh is widely used in the power sector, aerospace, information industry and military for RFI and EMI shielding.
Copper woven wire mesh can be used as the faraday cage.
Copper woven wire mesh can be installed onto buildings to insulate noise.
Copper woven wire mesh can be made to filter discs for liquid, gas and solid filtering
