Copper Wire Mesh Screen for Shielding Decorating

Model Number:	HH-CWM
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100000 sqaure meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Copper Wire Mesh

Mesh Count:

20 -200

Material:

99.8% Copper Wire

Wire Diameter:

0.0045" - 0.063"

Woven Type:

Plain Weaving

Width:

1m, 1.5m, 1.5m And 2m.

Packaging Details:

paper tube, carton and wooden case

Supply Ability:

100000 sqaure meters per 20 days

Highlight:

1m copper mesh wire screen

1m copper wire mesh screen

2m copper mesh wire screen

Product Description

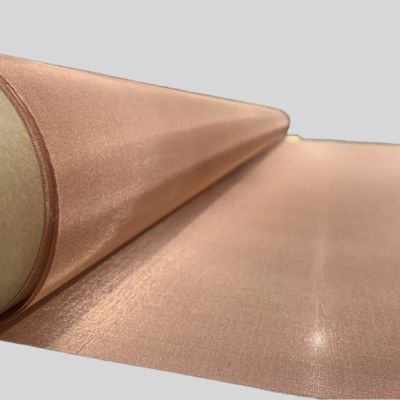

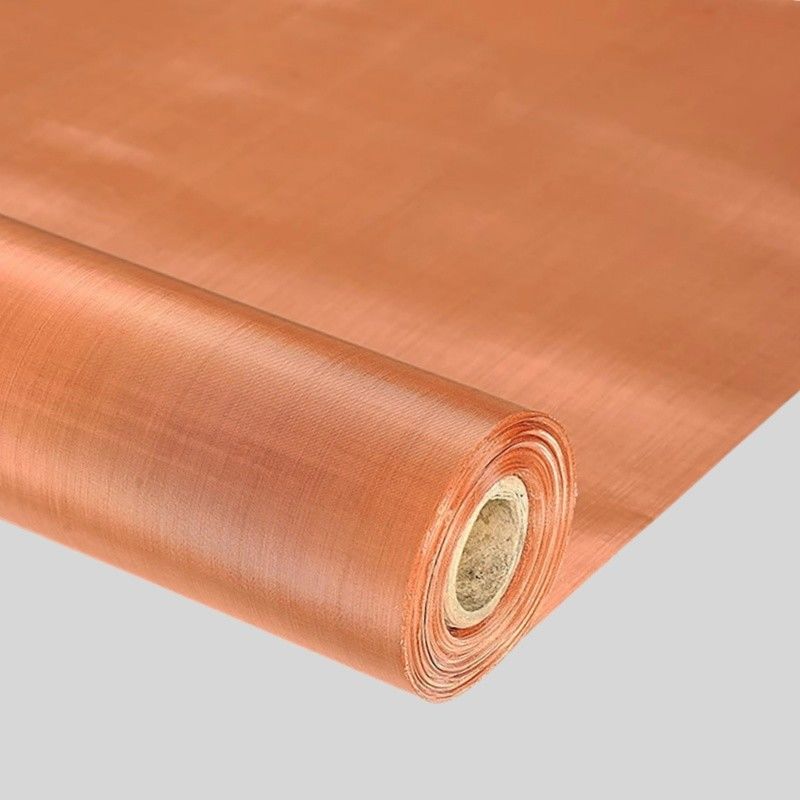

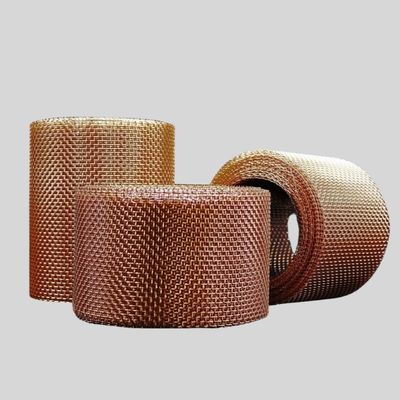

Copper Wire Mesh Screen for Shielding Decorating

Description of copper wire mesh

Copper wire mesh is the most widely used copper alloy wire mesh in the industry, which is woven from 99.95% copper wire. The biggest benefit of copper wire mesh is its high electrical and thermal conductivity, which makes it widely used in many electrical applications, such as RFI shielding, Faraday cages, signal shielding, HVAC, etc.

As a professional manufacturer of copper wire mesh, we can meet your various customization needs. This includes wire diameter, mesh size, weaving method, filtration level, mesh count and width, etc., and we can provide them in the form of rolls or sliced into any shape and size.

Specification of copper wire mesh

Specifications of Stainless Steel Woven Wire Mesh
Serial Number	Mesh Count	Wire Diameter		Mesh Hole Size		Thickness	Maximum Width	Opening rate
Serial Number	Mesh Count	Inches	mm	Inches	mm	mm	mm	%
SS-17	20 × 20	0.0200	0.5080	0.0300	0.7600	1.02	2000	35.9
SS-18	20 × 20	0.0160	0.4060	0.0340	0.8600	0.81	2000	46.1
SS-19	24 × 24	0.0140	0.3560	0.0277	0.7000	0.71	2000	43.9
SS-20	30 × 30	0.0130	0.3300	0.0203	0.5200	0.66	2000	37.4
SS-21	30 × 30	0.0120	0.3050	0.0213	0.5400	0.61	2000	40.8
SS-22	30 × 30	0.0090	0.2290	0.0243	0.6200	0.46	2000	53.3
SS-23	35 × 35	0.0110	0.2790	0.0176	0.4500	0.56	2000	38.1
SS-24	40 × 40	0.0100	0.2540	0.0150	0.3800	0.51	2000	35.9
SS-25	50 × 50	0.0090	0.2290	0.0110	0.2800	0.46	2000	30.3
SS-26	50 × 50	0.0080	0.2030	0.0120	0.3100	0.41	2000	36.5
SS-27	60 × 60	0.0075	0.1910	0.0092	0.2300	0.38	2000	29.8
SS-28	60 × 60	0.0070	0.1780	0.0097	0.2500	0.36	2000	34.1
SS-29	70 × 70	0.0065	0.1650	0.0078	0.2000	0.33	2000	30.0
SS-30	80 × 80	0.0055	0.1400	0.0070	0.1800	0.28	2000	31.6
SS-31	80 × 80	0.0047	0.1200	0.0077	0.1970	0.24	2000	38.6
SS-32	90 × 90	0.0050	0.1270	0.0061	0.1600	0.25	2000	31.1
SS-33	100 × 100	0.0045	0.1140	0.0055	0.1400	0.23	2000	30.4
SS-34	100 × 100	0.0040	0.1020	0.0060	0.1500	0.20	2000	35.4
SS-35	100 × 100	0.0035	0.0890	0.0065	0.1700	0.18	2000	43.1
SS-36	110 × 110	0.0040	0.1016	0.0051	0.1295	0.20	2000	31.4
SS-37	120 × 120	0.0037	0.0940	0.0046	0.1168	0.19	2000	30.7
SS-38	150 × 150	0.0026	0.0600	0.0041	0.1041	0.12	2000	40.2
SS-39	160 × 160	0.0025	0.0635	0.0038	0.0965	0.13	2000	36.4
SS-40	180 × 180	0.0023	0.0584	0.0033	0.0838	0.12	2000	34.7
SS-41	200 × 200	0.0021	0.0533	0.0029	0.0737	0.11	2000	33.7

The characteristics of copper wire mesh make it widely used.

99.95%+ Pure copper wire mesh.
Ductility and softness and flexibility make copper wire mesh easy to process, connect and install.
Has the thermal and electrical conductivity second only to silver mesh, but the cost is lower than silver.
Durability and maintenance-free features make it the first choice for many mechanical and industrial applications.
Excellent corrosion resistance, the oxide film further enhances this.
Copper mesh has a melting point of 1083 ℃ (1981 ℉). It does not catch fire through floors, walls, or ceilings. It is more suitable for architectural applications in fire resistance.
Recyclability. Like other metals, copper is 100% recyclable.
The unique metallic color makes the copper wire mesh very suitable for use as decorative products in architectural applications.

Application of copper wire mesh

Copper wire mesh is very common in commercial and residential projects, such as insect screen, fireplace screen, infill panel, decorative wall panel, and more. Some artists, sculptors, carpenters or metal artisans also like copper mesh very much, because it not only has a natural metallic color but also can be made into various complex shapes for decorative applications.

Faraday Cage, EMI & RFI Shielding, Insect Screen, Cabinet Screen, Fireplace Screen

Gutter and Soffit Screen, Wall Panels,Wood Working, Papermaking, Electric Heaters

Aerospace, Marine Technology, Pest control Fumigation, Liquid Filtration & Particle Separation,Scientific and Laboratory Uses
