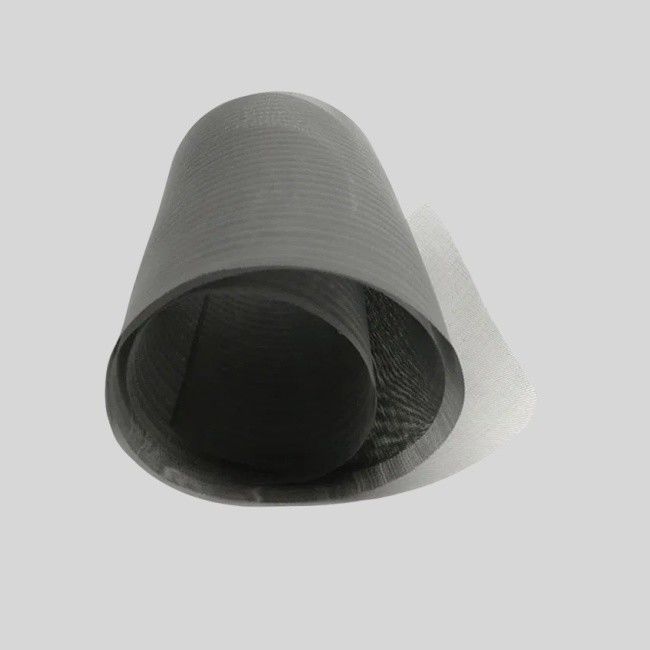

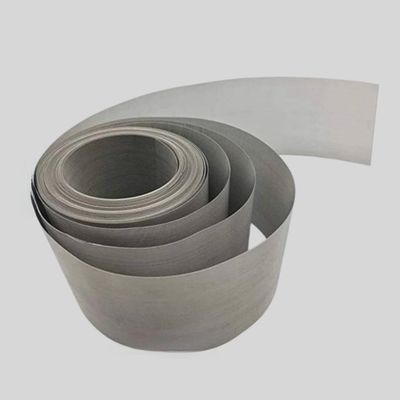

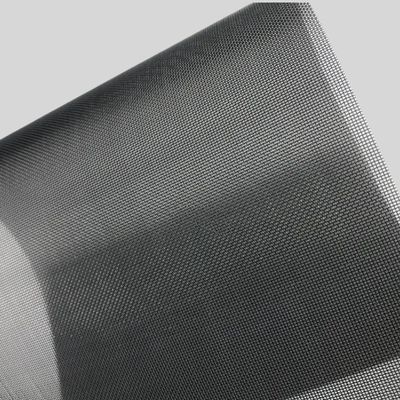

14X88 Plain Dutch Weave Pure Molybdenum Woven Wire Mesh

Name: 14X88 Plain Dutch Weave Pure Molybdenum Woven Wire Mesh
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-MOLY
Availability: InStock

Model Number:	HH-MOLY
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Molybdenum Woven Wire Mesh

Material:

99.95% Pure Molybdenum Wire

Mesh Count:

14 X 88

Wire Diameter:

0.51mmx0.3mm

Weave Type:

Plain Dutch Weave

Width:

200mm-1200mm In Common

Packaging Details:

waterproof paper with plastic cloth, then put into wooden box

Supply Ability:

50000 square meters per 20 days

Highlight:

dutch weave special mesh

dutch weave fine wire cloth

Product Description

14X88 Plain Dutch Weave Pure Molybdenum Woven Wire Mesh

Quick details of 14X88 Plain Dutch Weave Pure Molybdenum Woven Wire Mesh

Material: High Quality 99.95% Pure Molybdenum Wire

Mesh pattern: 14x88

Wire diameter: 0.51×0.33mm

Absolute Filtration Value: 255-275

Weave type: plain Dutch weave

Melting points: 2610°C - 2640°C.

Description of Pure Molybdenum Woven Wire Mesh

Molybdenum Wire Mesh is a type of woven wire mesh, which is made of pure molybdenum wires or alloy wires. According to the weaving patterns, molybdenum wire mesh has plain weave, twill weave, dutch weave patterns with square and rectangular shaped holes on surface.

Molybdenum wire mesh screen is a woven wire mesh where warp and weft (woof / filling) wires are interlaced at right angles. In other words, each warp wire and each weft wire pass over one, two or other amounts of wires, and then under the next one, two or other amounts of wires.

Specification of Pure Molybdenum Woven Wire Mesh

Mesh	Wire diameter		Aperture/Opening		%Open Area
	Inch	MM	Inch	MM
16X16	.018	.457	.0445	1.13	50.7
18X18	.017	.432	.0386	.98	48.3
20X20	.020	.508	.0300	.76	36.0
20X20	.016	.406	.0340	.86	46.2
24X24	.014	.356	.0277	.70	44.2
30X30	.013	.330	.0203	.52	37.1
30X30	.012	.305	.0213	.54	40.8
30X30	.009	.229	.0243	.62	53.1
35X35	.011	.279	.0176	.45	37.9
40X40	.010	.254	.0150	.38	36.0
50X50	.009	.229	.0110	.28	30.3
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
70X70	.0065	.165	.0078	.20	29.8
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0045	.114	.0055	.14	30.3
100X100	.004	.102	.0060	.15	36.0
100X100	.0035	.089	.0065	.17	42.3
110X110	.0040	.1016	.0051	.1295	30.7
120X120	.0037	.0940	.0046	.1168	30.7
150X150	.0026	.0660	.0041	.1041	37.4
160X160	.0025	.0635	.0038	.0965	36.4
180X180	.0023	.0584	.0033	.0838	34.7
200X200	.0021	.0533	.0029	.0737	33.6

Features of Molybdenum woven wire mesh

High temperature resistance
Good electrical conductivity and heat conducting property
Excellent ductility
High strength
Low density
Corrosion resistance
Acid and Alkali resistance
