200 150 100 Micron Pure Silver Wire Mesh For Electric Power

Name: 200 150 100 Micron Pure Silver Wire Mesh For Electric Power
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SLW
Availability: InStock

Model Number:	HH-SLW
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Silver Wire Mesh

Wire Dia:

0.15mm - 0.35mm

Mesh Number:

20-60 Mesh

Roll Length:

30 Meter, 50meters

Purity:

99.6% - 99.9%

Chemical Composition:

Ag – 99.95% Cu – 0.05% P – 0.002%

Packaging Details:

plastic wooden bags +wooden case/carton pipes

Supply Ability:

1000 square meters per 20 days

Highlight:

Electric Power silver wire mesh

100 Micron silver wire mesh

150 Micron silver wire mesh

Product Description

99.99% silver metallic fabric/pure silver mesh/sterling silver mesh sheet

Quick details of Silver Wire Mesh

Material: silver wire.

Purity: 99.6% - 99.9%.

Technique: woven.

Weaving type: plain weave and twill weave.

Wire diameter: 0.15mm - 0.35mm.

Mesh count: 20 mesh - 60 mesh.

Roll length: 30m or 50m

Silver wire mesh Chemical Composition:Ag – 99.95% Cu – 0.05% P – 0.002%

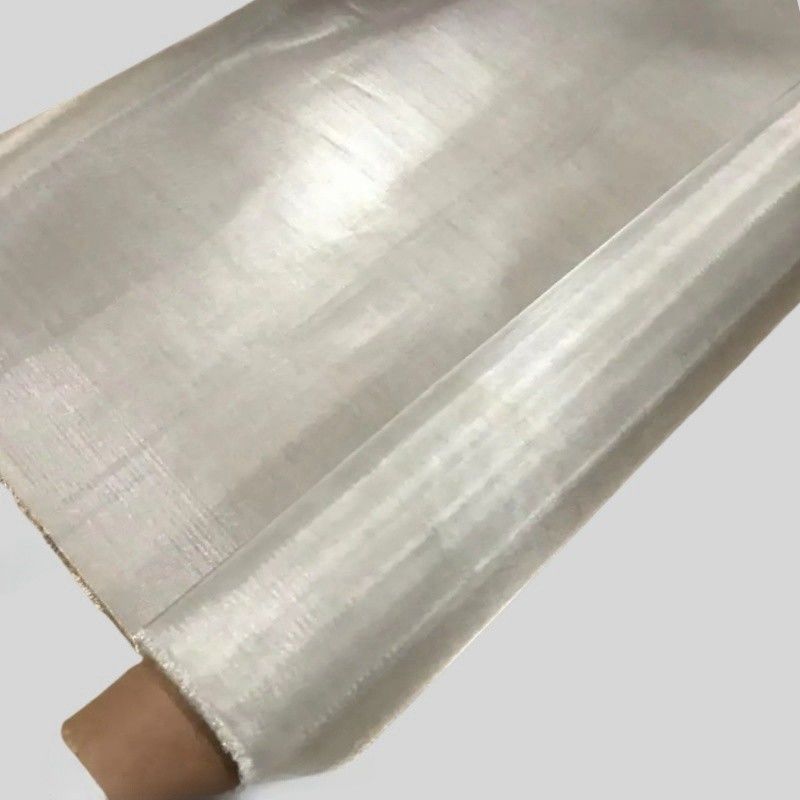

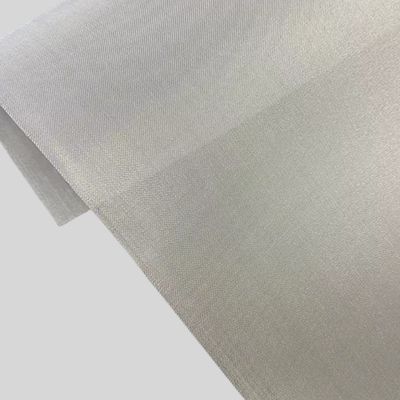

Description of Silver Wire Mesh

Silver wire mesh is manufactured from pure silver wire. The silver mesh is weaved through plain weave and twill weave into square meshes.

Silver wire mesh is a white glossy metal wire mesh woven from 99.99% pure silver wire. Silver wire is very soft, ductility is second only to gold, and its electrical and thermal conductivity is the best among all wire meshes. Does not react with water and atmospheric oxygen, and silver wire mesh has excellent corrosion resistance and chemical stability.

Secondly, in a corrosive environment, a high-purity titanium wire mesh, like a nickel wire mesh, forms an oxide film on the surface to protect itself from corrosion.

The oxide layer has high adhesion and inertia, which greatly enhances the corrosion resistance and acid and alkali resistance of the titanium mesh. It makes it more stable in the environment of seawater, wet chlorine, chlorite, and hypochlorite solutions, nitric acid, metal chromate, and organic salts.

Specification of Silver Wire Mesh

Item	Mesh	Wire Diameter		Opening		Opening
Item	Mesh	inch	mm	inch	mm	Area %
HHSL-01	20 mesh	0.014	0.35	0.036	0.91	51.8
HHSL-02	20 mesh	0.009	0.23	0.041	1.04	67.2
HHSL-03	24 mesh	0.014	0.35	0.028	0.71	44.2
HHSL-04	28 mesh	0.01	0.25	0.026	0.66	51.8
HHSL-05	30 mesh	0.011	0.28	0.022	0.55	44.8
HHSL-06	30 mesh	0.0065	0.16	0.027	0.68	64.8
HHSL-07	35 mesh	0.012	0.3	0.017	0.43	33.8
HHSL-08	35 mesh	0.01	0.25	0.019	0.48	42.4
HHSL-09	40 mesh	0.01	0.25	0.015	0.38	36
HHSL-10	40 mesh	0.0095	0.24	0.016	0.4	38.4
HHSL-11	50 mesh	0.009	0.23	0.011	0.28	30.3
HHSL-12	50 mesh	0.008	0.20	0.012	0.3	36
HHSL-13	60 mesh	0.0075	0.19	0.009	0.22	30.5
HHSL-14	60 mesh	0.0059	0.15	0.011	0.28	40.2

Applications of silver wire mesh

Filtration material.

Battery collector mesh.

Electrodes skeleton mesh.

Battery skeleton mesh.

Experimental materials.

Arrangement Container.

Decorative design.

In addition to being a good conductor, it also offers long battery life and high energy-to-weight ratio. The overall performance is reliable and safe. And silver wire mesh is often used in high-precision filtering equipment.The other is a bright white surface with the graphite coating removed. This is suitable for making electrode mesh, battery collection mesh, and various fine chemical liquid filters.
