K500 Monel Wire Mesh For Marine Industries

Name: K500 Monel Wire Mesh For Marine Industries
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-MN
Availability: InStock

Model Number:	HH-MN
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Features:

Magnetic,acid Resistance,alkali Resistance,temperature Resistance

Name:

Monel Wire Mesh

Material:

Monel 400 And Monel K500

Wire Diameter:

0.0021" - 0.028"

Mesh Count:

8 - 200

Mesh Roll:

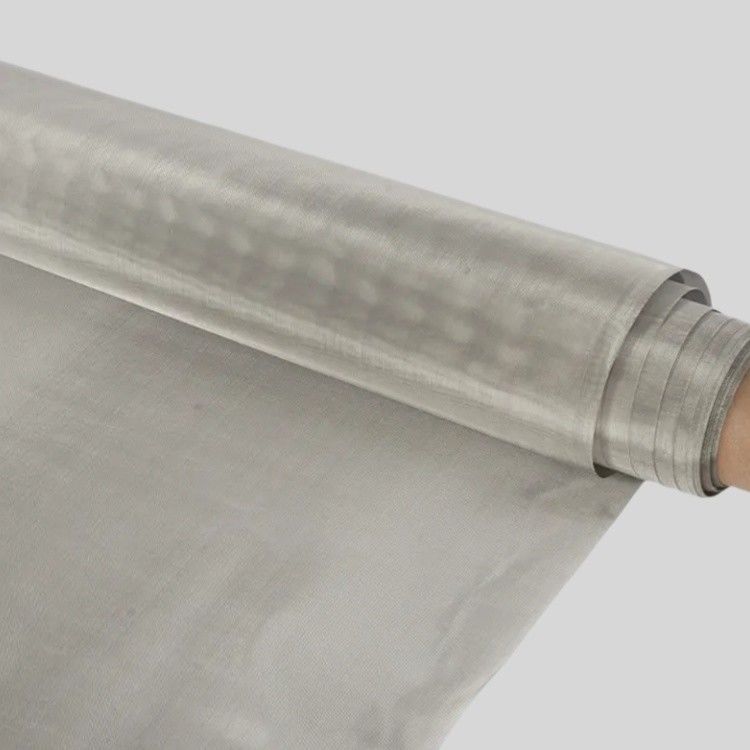

1x30m 2x30m 1.524x30m 0.914x30m Etc

Containing:

Minimum 63% Nickel And 28% Copper.

Mesh Shape:

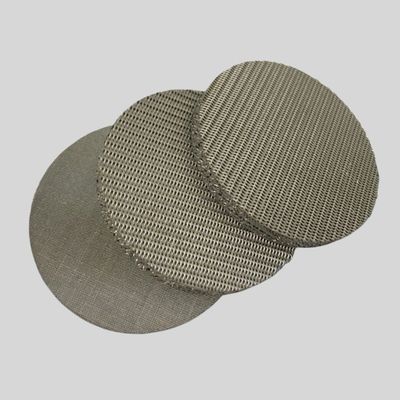

Cut Into Round Or Square Shape

Packaging Details:

Paper tube. Brown paper. Plastic film. Wooden box/ pallet

Supply Ability:

50000 square meters per 20 days

Highlight:

Industries monel 400 wire mesh

K500 monel wire mesh

Marine monel screen mesh

Product Description

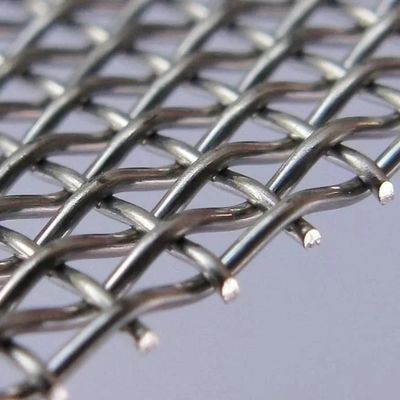

K500 Monel Wire Mesh For Marine Industries

Quick details of Monel Wire Mesh

Material: monel 400 and monel K500.

Weaving type: plain weave and twill weave.

Wire diameter: 0.0021" - 0.028".

Mesh size: 8 mesh to 200 mesh.

Description of Monel wire mesh

The Monel wire is a combination of Nickel and Copper making it one of the most multipurpose and widely used nickel alloys. Monel comprises more than 60% of nickel content which offers intense resistance to a variety of corrosion conditions including seawater, acidic and alkaline environments.

Compared to the common Stainless Steel Wire Mesh, The Monel wire mesh has a high melting point of 1300 F to 1350 F and strength superior to unalloyed nickel. Due to this unique quality, it is being used inside high-temperature vessels and petroleum applications.

Specification of Monel Wire Mesh

Item	Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
HHMN-01	8 × 8	0.0280	0.0970	60.20
HHMN-02	10 × 10	0.0250	0.0750	56.30
HHMN-03	12 × 12	0.0230	0.0600	51.80
HHMN-04	20 × 20	0.0160	0.0340	46.20
HHMN-05	30 × 30	0.0130	0.0203	37.20
HHMN-06	40 × 40	0.0100	0.0150	36.00
HHMN-07	60 × 60	0.0072	0.0090	30.50
HHMN-08	80 × 80	0.0055	0.0070	31.40
HHMN-09	100 × 100	0.0045	0.0060	30.30
HHMN-10	120 × 120	0.0036	0.0047	32.26
HHMN-11	150 × 150	0.0026	0.0041	37.20
HHMN-12	200 × 200	0.0021	0.0533	33.60

The chemical composition of Monel K500 is mentioned below:

Element	Content (%)
Al	2.30 – 3.15
C	.25 max
Cu	27.0 – 33.0
Fe	2.0 max
Mn	1.5 max
Ni	63.0 max
Ti	0.35 – 0.85
S	0.01 max
Si	0.5 max

Properties of Monel Wire Mesh:

Good weldability.

Good Resistance against corrosive conditions.

Can withstand high temperatures up to 1300 F.

Preventive against acidic and alkali media

Cleanability and reusability.

Application: Monel wire mesh is widely used in the following industries:

Industrial heat exchangers

Chemical and solvent industries

Deaerating heaters (To remove oxygen and other dissolved gases from boiler feed water)

Hydrocarbon processing equipment

Distillation of petroleum crude

Marine, oceanic, and aerospace engineering

Fittings and fasteners of Valves, pumps, shafts, etc.

Fresh water and fuel tanks, boiler feedwater heaters
