Plain Woven SUS304 Stainless Steel Printing Screen Customized

Name: Plain Woven SUS304 Stainless Steel Printing Screen Customized
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SSPRINT
Availability: InStock

Model Number:	HH-SSPRINT
MOQ:	1 SQUARE METERS
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	8000 SQUARE METERS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Printing Screen

Material:

SUS304

Mesh:

200, 230, 250, 270, 300, 325, 400 , 500

Wire Dia:

0.018-0.05mm

Aperture:

0.033-0.077mm

Special Data:

Can Be Customized

Packaging Details:

TO BE YOUR REQUEST

Supply Ability:

8000 SQUARE METERS PER 20 DAYS

Highlight:

SUS304 Stainless Steel Printing Screen

Plain Woven Stainless Steel Printing Screen

SUS304 plain weave wire mesh

Product Description

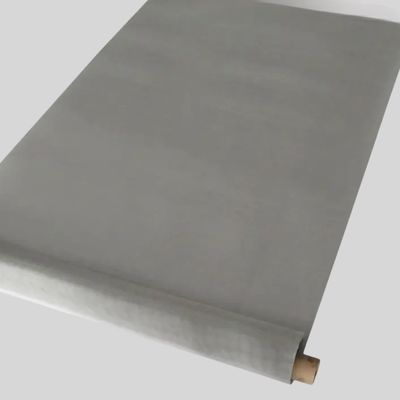

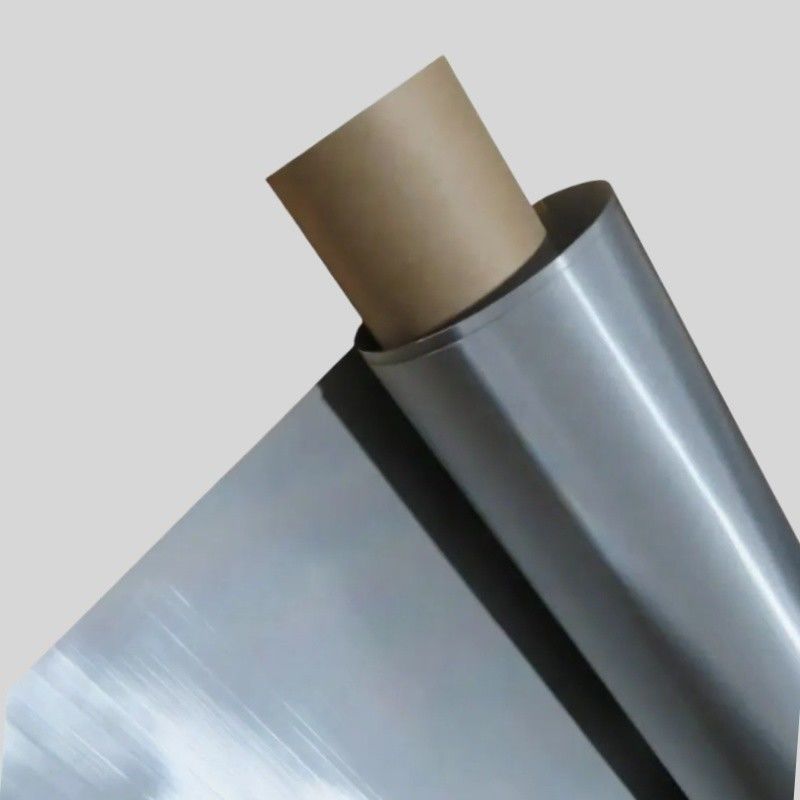

Plain Woven SUS304 Stainless Steel Printing Screen

Description of stainless steel printing screen

Metal printing screen (metal material), also known as "stainless steel printing screen" and "screen printing metal screen". The metal printing screen produced by our company has the characteristics of high tension, high stability, ultra-low elongation, uniform mesh, high wear resistance, solvent resistance, high yield point, high precision, dustproof and antistatic, and good screen printing performance. It is widely used in printed chip components, electronic circuit boards, printed solar panels, printed liquid crystal displays, printed glass, ceramics and other industries.

Specification of Stainless Steel Printing Screen

SPECIFICATIONS OF STAINLESS STEEL PRINTING SCREEN MESH
Item	Mesh count	Thread Diameter	Open Area	Aperture	Theoretical ink
Item	mesh/inch	μm	%	μm	cm³/m²
SPMS-200-50	200	50	37.0	77	42.0
SPMS-230-35	230	35	46.7	75	37.0
SPMS-250-40	250	40	36.8	62	34.0
SPMS-250-30	250	30	49.7	72	30.0
SPMS-250-35	250	35	43.0	67	32.0
SPMS-270-35	270	35	39.4	59	30.0
SPMS-300-30	300	30	41.7	55	28.0
SPMS-325-30	325	30	38.0	48	24.0
SPMS-325-28	325	28	41.2	50	26.4
SPMS-325-23	325	23	49.8	55	25.4
SPMS-350-25	350	25	43.0	48	18.7
SPMS-400-23	400	23	40.7	41	19.0
SPMS-400-18	400	18	51.3	46	20.0
SPMS-500-18	500	18	41.7	33	15.3

Applications of Stainless Steel Printing Screen

Solar panel printing

PCB (Printed Circuit Boards) screen printing

Textile screen printing

Glass screen printing

Ceramic screen printing

Plastics & packaging

Membrane switches

Features of Stainless Steel Printing Screen

Mesh Equality, Wear Well :stainless steel printing screen is made of high-quality stainless steel wire with uniform mesh number, high surface finish, no surface treatment, convenient and simple maintenance, and more durable.

Widespread Application: Acid-resisting, alkali-resisting and high temperature resisting.High-quality stainless steel materials, it is widespread Application in mining, chemical, pharmaceutical, petroleum, metallurgical, machinery, protection, construction crafts and other industries.

Easy to Cut: The screen sheet can be cut to needed shape and keep its stiff structure at the same time, such as round, rectangle, triangle, and other complicated shape you desired.
