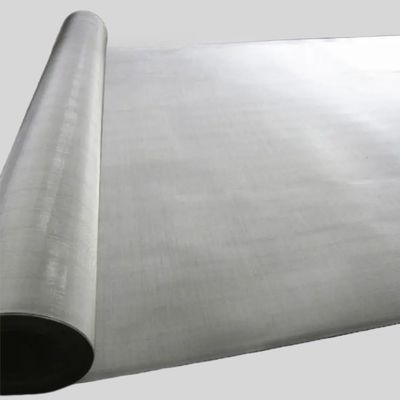

Stainless Steel Micronic Wire Mesh For Filtering And Diffusing

Model Number:	HH-SSMW
MOQ:	1 SQUARE METER
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 ROLLS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Micronic Wire Mesh

Material:

SS 304 / SS316/ SS316l

Weave Type:

Plain And Dutch Weave

Usage:

Filtration

Wire Diameter:

From 0.0203mm

Length:

Customizable

Width:

Less Than 4500mm

Factory:

HUIHAO WIRE MESH

Packaging Details:

Packed with paper tube,then in wooden case or pallet

Supply Ability:

3000 ROLLS PER 30 DAYS

Highlight:

filtering micronic wire mesh

filtering shielding wire mesh

diffusing micronic wire mesh

Product Description

Stainless Steel Micronic Wire Mesh For Filtering And Diffusing

Description of Micronice wire mesh

Micronic wire mesh products come in nominal or absolute filter ratings (opening sizes). The material is available in several sizes, shapes (including micronic mesh discs), and weaves. It is easily cut with sharp hand tools. As mentioned above, the micronic filter cloth from HUIHAO. comes in PW (plain) square weaves or Dutch weaves.

Micronic Plain Square Weaves

With a square weave, you’ll get a thin mesh material with visible tiny square holes in which light can pass through. Square weaves are thin and flexible with a high flow rate and are often used for particle separation and classification as well as sifting and fuel filtration.

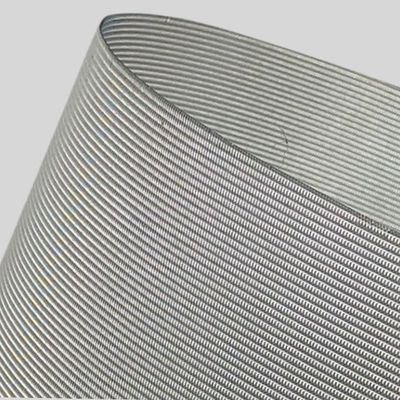

Micronic Dutch Weaves

Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.

Specification of Micronic Wire Mesh

Specifications of Stainless Steel micronice wire mesh-plain weave type
Serial Number	Mesh Count	Wire Diameter		Mesh Hole Size		Thickness	Maximum Width	Opening rate
Serial Number	Mesh Count	Inches	mm	Inches	mm	mm	mm	%
SSp-30	80 × 80	0.0055	0.1400	0.0070	0.1800	0.28	2000	31.6
SSP-31	80 × 80	0.0047	0.1200	0.0077	0.1970	0.24	2000	38.6
SSP-32	90 × 90	0.0050	0.1270	0.0061	0.1600	0.25	2000	31.1
SSP-33	100 × 100	0.0045	0.1140	0.0055	0.1400	0.23	2000	30.4
SSP-34	100 × 100	0.0040	0.1020	0.0060	0.1500	0.20	2000	35.4
SSP-35	100 × 100	0.0035	0.0890	0.0065	0.1700	0.18	2000	43.1
SSP-36	110 × 110	0.0040	0.1016	0.0051	0.1295	0.20	2000	31.4
SSP-37	120 × 120	0.0037	0.0940	0.0046	0.1168	0.19	2000	30.7
SSP-38	150 × 150	0.0026	0.0600	0.0041	0.1041	0.12	2000	40.2
SSP-39	160 × 160	0.0025	0.0635	0.0038	0.0965	0.13	2000	36.4
SSP-40	180 × 180	0.0023	0.0584	0.0033	0.0838	0.12	2000	34.7
SSP-41	200 × 200	0.0021	0.0533	0.0029	0.0737	0.11	2000	33.7
SSP-42	250 × 250	0.0016	0.0400	0.0024	0.0610	0.08	2000	36.5
SSP-43	270 × 270	0.0016	0.0400	0.0021	0.0540	0.08	2000	33.0
SSP-44	300 × 300	0.0016	0.0400	0.0018	0.0446	0.08	2000	27.8
SSP-45	325 × 325	0.0014	0.0356	0.0017	0.0432	0.07	2000	30.1
SSP-46	400 × 400	0.0011	0.0300	0.0015	0.0330	0.06	1600	27.4
SSP-47	500 × 500	0.0010	0.0254	0.0010	0.0254	0.05	1500	25.0
SSP-48	635 × 635	0.0008	0.0203	0.0008	0.0203	0.04	1300	25.0

Specification Sheet of the Plain Dutch Weave micronic wire mesh
Serial Number	Mesh Count	Wire Diameter		Absolute Filtration Value	Nominal Filtration Value	Maximum Width
Serial Number	Mesh Count	Inch	mm	μm	μm	mm
PDW-1	8 × 85	0.0140 × 0.0126	0.36 × 0.32	300–320	310	2000
PDW-2	12 × 64	0.0240 × 0.0165	0.61 × 0.42	260–280	250	2000
PDW-3	12 × 90	0.0178 × 0.0120	0.45 × 0.30	270–300	211	2000
PDW-4	14 × 88	0.0200 × 0.0130	0.51×0.33	255–275	250	2000
PDW-5	14 × 100	0.0160 × 0.0110	0.41×0.28	235–260	182	2000
PDW-6	16 × 80	0.0170 × 0.0135	0.43 × 0.34	210–230	260	2000
PDW-7	16 × 100	0.0157 × 0.0110	0.40 × 0.28	200–220	160	2000
PDW-8	16 × 120	0.0140 × 0.0094	0.36 × 0.24	180–198	150	2000
PDW-9	20 × 150	0.0098 × 0.0070	0.25 × 0.18	155–185	120	2000
PDW-10	24 × 110	0.0150 × 0.0100	0.38 × 0.25	115–128	110	2000
PDW-11	30 × 150	0.0090 × 0.0070	0.23 × 0.18	90–105	90	2000
PDW-12	30 × 280	0.0110 × 0.0037	0.28 × 0.09	100–110	100	2000
PDW-13	40 × 200	0.0070 × 0.0055	0.18 × 0.14	70–80	70	2000
PDW-14	40 × 340	0.0098 × 0.0030	0.25 × 0.08	78–84	75	2000
PDW-15	50 × 250	0.0055 × 0.0045	0.14 × 0.11	52–57	55	2000
PDW-16	50 × 280	0.0055 × 0.0040	0.14 × 0.10	50–55	50	2000
PDW-17	50 × 460	0.0078 × 0.0023	0.20 × 0.06	60–65	60	1300
PDW-18	60 × 500	0.0065 × 0.0020	0.17 × 0.05	48–54	50	1300
PDW-19	70 × 350	0.0050 × 0.0030	0.13 × 0.08	41–47	35	1300
PDW-20	70 × 620	0.0060 × 0.0018	0.15 × 0.05	45–48	45	1300
PDW-21	80 × 300	0.0050 × 0.0035	0.13 × 0.09	45–50	45	1300
PDW-22	80 × 400	0.0050 × 0.0028	0.13 × 0.07	40–45	40	1300
PDW-23	80 × 700	0.0040 × 0.0013	0.10 × 0.03	35–44	35	1300

Features & Uses

With a nominal (filter retention between 60 and 90 percent) or absolute (filter retention between 98 and 100 percent) filter rating, micronic wire cloth prevents the passage of most solid particles. The superfine and strong filtration properties of this type of mesh make it suitable for use in a number of commercial sectors, including:

Pharmaceutical
Medical
Agricultural
Automotive
Architectural
Food and beverage
Waste management

The material is also used in a variety of industrial applications including hydraulics, manufacturing, cleaning, classification, purification, sieving, and several types of filtration. Micronic filter cloth is resistant to: Light, Hydraulic pressure, Abrasion, Corrosion, Seawater, Salt, Acids

The level of resistance of micronic filter cloth will depend on the type of weave and alloy.
