Home Products

Stainless Steel Wire Mesh

316 Ultra Fine Plain Weave Stainless Steel Wire Mesh 110-300 Mesh Count

Name: 316 Ultra Fine Plain Weave Stainless Steel Wire Mesh 110-300 Mesh Count
Brand: Anping County Huihao Wire Mesh Manufacture Co., Ltd
SKU: HH-SS316P
Availability: InStock

Model Number:	HH-SS316P
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 rolls per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Wire Mesh

Material:

SUS316

Mesh Count:

110-300

Weave Type:

Plan Weave

Specification Customization:

Support

Advantage:

Superior Wire,standard Mesh

Packaging Details:

Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet

Supply Ability:

3000 rolls per 30 days

Highlight:

ultra fine stainless steel wire mesh

ultra fine stainless steel mesh

316 ultra fine wire mesh

Product Description

316 Ultra Fine Plain Weave Stainless Steel Wire Mesh

Description of stainless steel wire mesh

Stainless steel woven wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.

Wire mesh can be custom fabricated to any shape or application
Stainless wire mesh is easily workable
Wire mesh can be stamped or cut to size
Wire mesh can be rolled, welded, sintered, and soldered
Stainless steel filters can have custom flanges
Variety of stainless steel mesh openings available
Many material types available

Specification of stainless steel wire mesh

Mesh	Wire Diameter		Opening Size		Open area
Mesh	Inch	Millimeter	Inch	Millimeter
110	0.0040 Inch	0.102 Mm	0.005 Inch	0.129 Mm	31.40%
120	0.0026 Inch	0.066 Mm	0.006 Inch	0.145 Mm	47.30%
120	0.0037 Inch	0.094 Mm	0.005 Inch	0.117 Mm	30.90%
130	0.0017 Inch	0.043 Mm	0.006 Inch	0.152 Mm	60.70%
145	0.0022 Inch	0.056 Mm	0.005 Inch	0.119 Mm	46.40%
135	0.0023 Inch	0.058 Mm	0.005 Inch	0.129 Mm	47.40%
150	0.0026 Inch	0.066 Mm	0.004 Inch	0.104 Mm	37.20%
150	0.0030 Inch	0.076 Mm	0.004 Inch	0.094 Mm	30.40%
160	0.0025 Inch	0.063 Mm	0.004 Inch	0.095 Mm	36.40%
165	0.0019 Inch	0.048 Mm	0.004 Inch	0.107 Mm	47.10%
180	0.0012 Inch	0.030 Mm	0.004 Inch	0.112 Mm	61.50%
170	0.0026 Inch	0.066 Mm	0.003 Inch	0.084 Mm	31.20%
200	0.0016 Inch	0.041 Mm	0.003 Inch	0.086 Mm	46.20%
230	0.0014 Inch	0.036 Mm	0.003 Inch	0.074 Mm	46.00%
220	0.0017 Inch	0.043 Mm	0.003 Inch	0.071 Mm	38.70%
240	0.0016 Inch	0.040 Mm	0.003 Inch	0.066 Mm	38.30%
250	0.0016 Inch	0.040 Mm	0.002 Inch	0.061 Mm	36.00%
270	0.0014 Inch	0.036 Mm	0.002 Inch	0.058 Mm	38.70%
300	0.0015 Inch	0.038 Mm	0.002 Inch	0.046 Mm	30.30%

Stainless steel wire mesh filters are also used in:

Aerospace and oil/gas industries

Solvents, paints, water

Filtration, sifting, sizing

Vents

Baskets

Strainers

Faucet Screens

Insect Screens

Decorative wire mesh grilles

Guards

Decorative/craft applications

Stainless wire mesh is durable, cleanable, and reusable, making it an economical choice for most filtering projects.

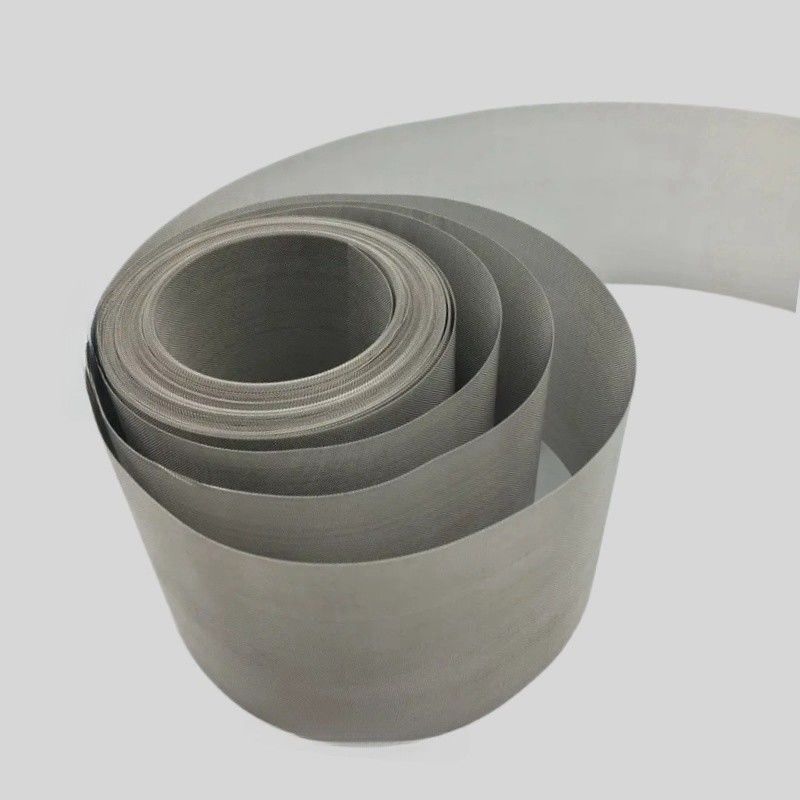

316 Ultra Fine Plain Weave Stainless Steel Wire Mesh 110-300 Mesh Count 0

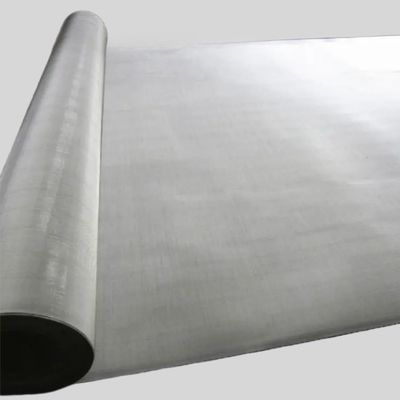

316 Ultra Fine Plain Weave Stainless Steel Wire Mesh 110-300 Mesh Count 1
