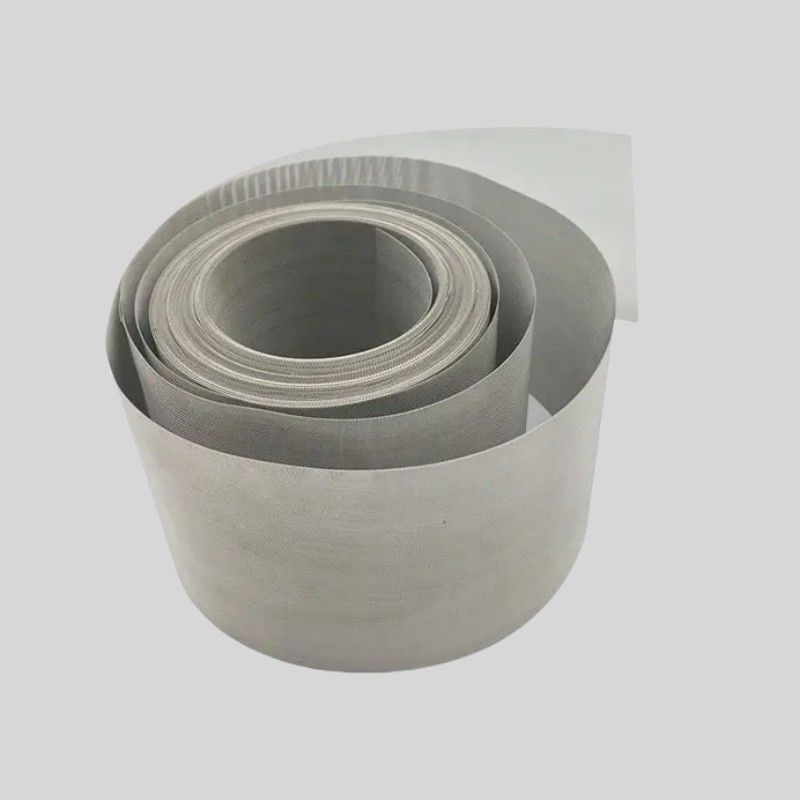

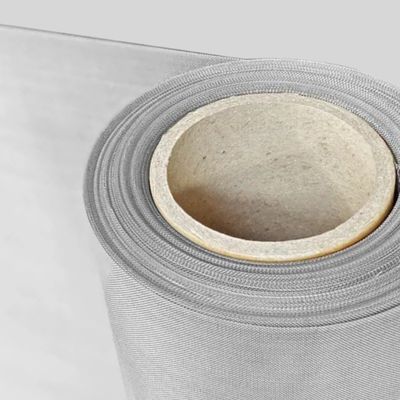

SS321 Stainless Steel Filtration Mesh Woven Metal Cloth

SS321 Stainless Steel Filtration Mesh Woven Metal Cloth

Model Number:	HH-SS321W
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 rolls per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Features:

Acid-resisting,alkali-resisting

Name:

SS321 Stainless Steel Woven Filtration Metal Cloth

Material Type:

T-321 SS321 UNS S32100 SUS321

Typical Standards:

ASTM A580, ASTM A313, AMS 5689

Width:

1m, 1.22mm, 1.5m

Length:

30m On Standard

Packaging Details:

water-proof, plastic paper, wooden case, pallet

Supply Ability:

2000 rolls per 30 days

Highlight:

ss321 stainless steel filtration mesh

ss321 stainless steel mesh

1m stainless steel mesh

Product Description

SS321 Stainless Steel Woven Filtration Metal Cloth

Description of Woven Filtration Metal Cloth

Type 321 stainless steel wire mesh is similar to the basic T-304 stainless steel alloy, but includes the addition of titanium for improved oxidation and general corrosion resistance. Compared to T-304L, T-321 stainless steel has both higher creep strength and stress rupture capabilities, and similarly possesses good low-temperature toughness. That said, T-304L wire mesh is usually more readily available than T-321, and is often used in most situations unless the wire mesh is to be used in an operating environment with temperatures above 925°F (as T-321 has better hot strength properties). If the requirement is only for resistance to intergranular corrosion after welding, then T-304L is the preferred alloy given its wider stock availability. Some characteristics of 321 stainless steel wire cloth which dictate its use are:

Austenitic stainless steel.
Non-magnetic when annealed.
Slightly magnetic when cold worked.
Withstands outdoor exposure without rusting.
Excellent oxidation & corrosion resistance in broad range of industrial and chemical settings.
Resists oxidation at 1500°F temperatures.
Heating permitted between 900°F – 1600°F temperatures.
Can be cut, formed, and welded.

Specification of Woven Filtration Metal Cloth

Mesh	Wire Diameter		Opening Size		Open area
Mesh	Inch	Millimeter	Inch	Millimeter
88	0.0035 Inch	0.089 Mm	0.008 Inch	0.201 Mm	47.90%
90	0.0040 Inch	0.102 Mm	0.007 Inch	0.180 Mm	41.00%
100	0.0040 Inch	0.102 Mm	0.006 Inch	0.152 Mm	36.00%
110	0.0040 Inch	0.102 Mm	0.005 Inch	0.129 Mm	31.40%
120	0.0026 Inch	0.066 Mm	0.006 Inch	0.145 Mm	47.30%
120	0.0037 Inch	0.094 Mm	0.005 Inch	0.117 Mm	30.90%
130	0.0017 Inch	0.043 Mm	0.006 Inch	0.152 Mm	60.70%
145	0.0022 Inch	0.056 Mm	0.005 Inch	0.119 Mm	46.40%
135	0.0023 Inch	0.058 Mm	0.005 Inch	0.129 Mm	47.40%
150	0.0026 Inch	0.066 Mm	0.004 Inch	0.104 Mm	37.20%
150	0.0030 Inch	0.076 Mm	0.004 Inch	0.094 Mm	30.40%
160	0.0025 Inch	0.063 Mm	0.004 Inch	0.095 Mm	36.40%
165	0.0019 Inch	0.048 Mm	0.004 Inch	0.107 Mm	47.10%
180	0.0012 Inch	0.030 Mm	0.004 Inch	0.112 Mm	61.50%
170	0.0026 Inch	0.066 Mm	0.003 Inch	0.084 Mm	31.20%
200	0.0016 Inch	0.041 Mm	0.003 Inch	0.086 Mm	46.20%
230	0.0014 Inch	0.036 Mm	0.003 Inch	0.074 Mm	46.00%
220	0.0017 Inch	0.043 Mm	0.003 Inch	0.071 Mm	38.70%
240	0.0016 Inch	0.040 Mm	0.003 Inch	0.066 Mm	38.30%
250	0.0016 Inch	0.040 Mm	0.002 Inch	0.061 Mm	36.00%
270	0.0014 Inch	0.036 Mm	0.002 Inch	0.058 Mm	38.70%
300	0.0015 Inch	0.038 Mm	0.002 Inch	0.046 Mm	30.30%

321 Stainless Steel Wire Mesh – Typical Chemistry

UNS S32100 - 321 Stainless Steel Wire Mesh - Typical Chemistry
Alloy	Standard(s)	Limits (%)	Carbon (C)	Manganese (Mn)	Phosphorus (P)	Sulfur (S)	Silicon (Si)	Chromium (Cr)	Nickel (Ni)	Molybdenum (Mo)	Nitrogen (N)	Titanium (Ti)	Copper (Cu)
S32100 321 Stainless Steel	ASTM A580 ASTM A313	Min	0	0	0	0	0	17	9			5xC
	ASTM A580 ASTM A313	Max	0.08	2	0.045	0.03	1	19	12
	AMS 5689	Min	0	0	0	0	0.4	17	9	0	0	5xC+N	0
	AMS 5689	Max	0.08	2	0.04	0.03	1	19	12	0.75	0.1	0.7	0.75

Featurers of Woven Filtration Metal Cloth

Withstands outdoor exposure without rusting.

Heating permitted between 900°F – 1600°F temperatures.

its resistance to intergranular corrosion

Non-magnetic when annealed.

Excellent oxidation

Applications of SS321filtration metal cloth

T-321 stainless steel wire cloth is principally used in oil field & refinery, mining & quarrying, and aerospace industries. T-321 wire cloth is also commonly used in the chemical processing industry. Additional industries and applications which commonly use T-321 stainless steel wire cloth include:

Food Processing
Liquid Filtration & Particle Separation
Pressure Vessels
Waste Treatment
